Sony KDF-46E2000 - HC Board Removal; HA Board and HB Board Removal

KDF-46E2000/46E2010/50E2000/50E2010/55E2000/55E2010
KDF-46E2000/46E2010/50E2000/50E2010/55E2000/55E2010
21

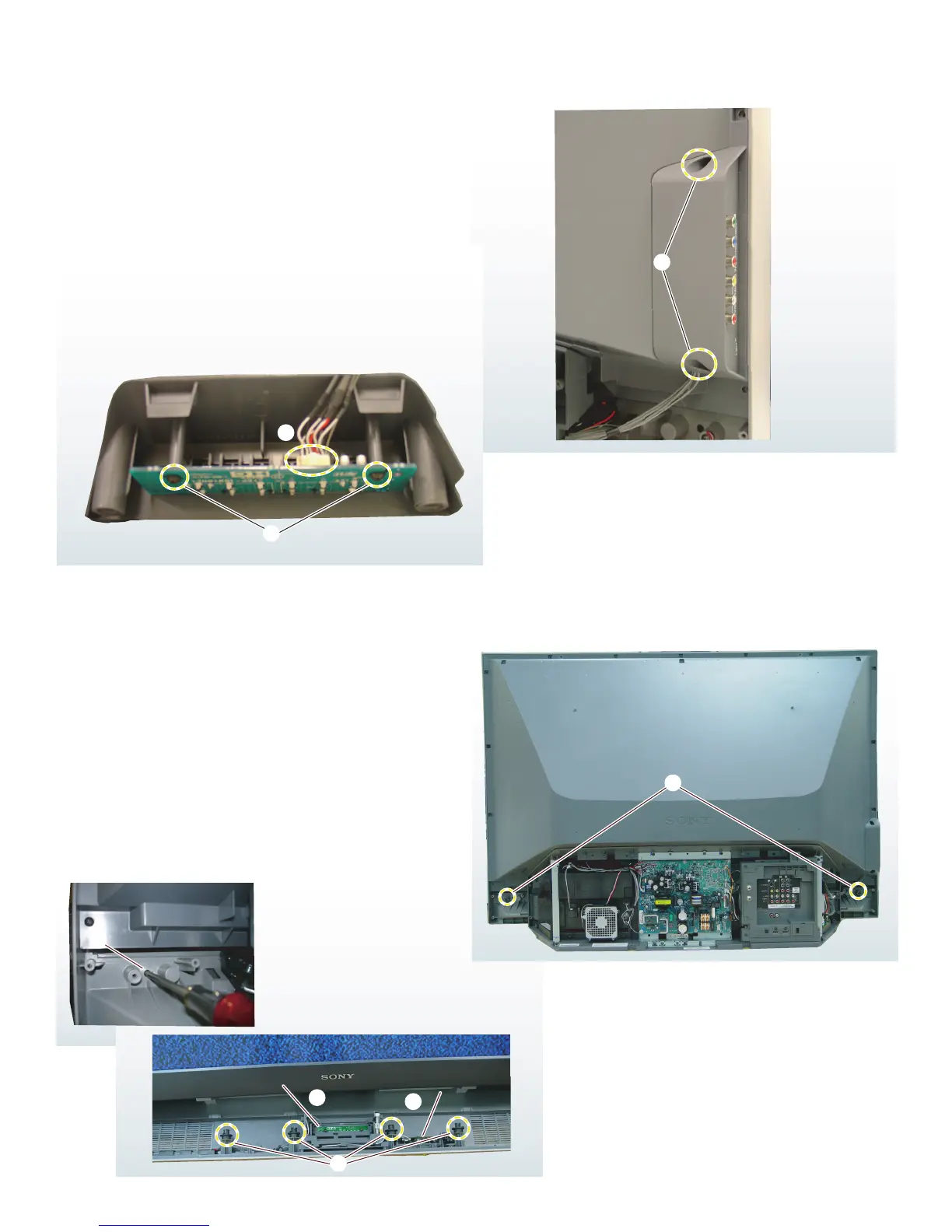

1-7. HC BOARD REMOVAL
1
Remove 2 screws to detach the H2 Bracket.
2
Disconnect connector.
3
Remove 2 screws.
4
Lift out to remove HC Board.
1
4
3
1-8. HA BOARD AND HB BOARD REMOVAL
4
3
5
2
HA Board
HB Board
1
1
Remove 2 screws from inside the front panel.
2
Using a screwdriver, gently push through the hole to
release the speaker grill.
3
Firmly pull on the speaker grill to detach from the cabinet.
4
Disconnect CN7000 and remove 2 screws to release the
HA Board
5
Disconnect CN7020 and remove 2 screws to release the
HB Board
