KDF-46E2000/46E2010/50E2000/50E2010/55E2000/55E2010
KDF-46E2000/46E2010/50E2000/50E2010/55E2000/55E2010
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]

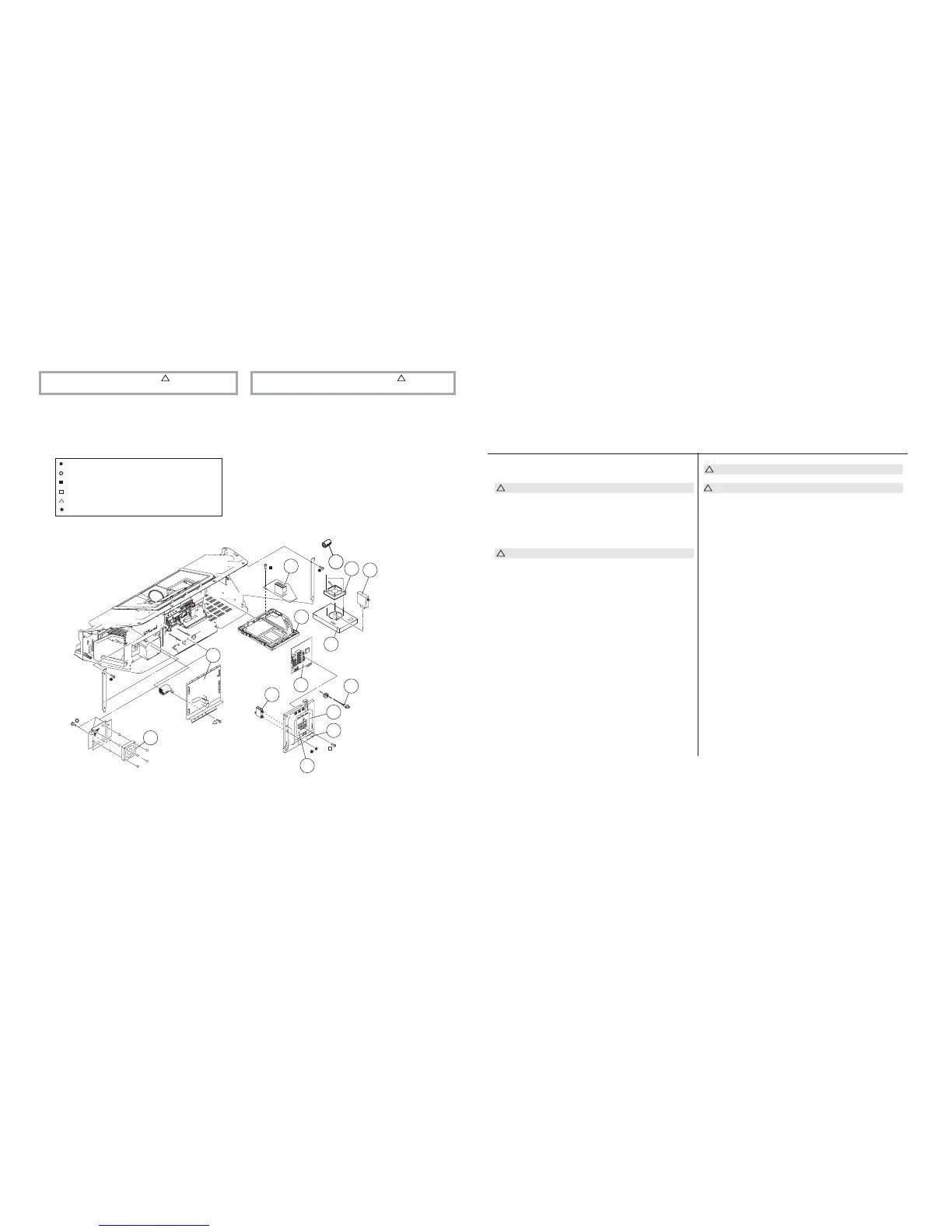

4-2. CHASSIS
51 A-1175-422-A K BOARD, COMPLETE
* 52 2-671-846-01 BRACKET, MAIN
* 53 1-543-830-11 CLAMP, SLEEVE FERRITE
!
54 1-787-333-21 D.C. FAN
55 A-1178-707-A A BLOCK ASSEMBLY
If the Tuner (FSS BTF-WA421) fails, the complete A Block Assembly
must be ordered. The Tuner cannot be ordered separately.
56 A-1206-557-A B BLOCK ASSEMBLY
57 A-1175-421-A U BOARD, COMPLETE
!
58 1-827-159-21 CORD, AC POWER (WITH CONNECTOR)
* 59 2-671-847-01 BRACKET, TERMINAL
60 2-671-844-01 DOOR, SERVICE
61 2-671-851-01 LABEL, TERMINAL
!
62 8-597-580-00 ANTENNA SWITCH RFD-SA821
63 A-1175-974-A G BOARD, COMPLETE
!
64 1-787-373-11 D.C. FAN
2-580-640-01 SCREW, +BVTP2 4X16
2-580-593-01 SCREW, +PSW M3X8
7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
7-685-872-01 SCREW +BVTT 3X8
2-580-622-01 SCREW, +PWH M4X20
3-682-691-00 NUT, WASHER HEXAGON
53
53
64
55
54
63
51
56
52
58
59
61
60
57
62
