Sony KDF-46E2000 - Optics Unit Block Assembly and Lamp Assembly

96
KDF-46E2000/46E2010/50E2000/50E2010/55E2000/55E2010
KDF-46E2000/46E2010/50E2000/50E2010/55E2000/55E2010
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]

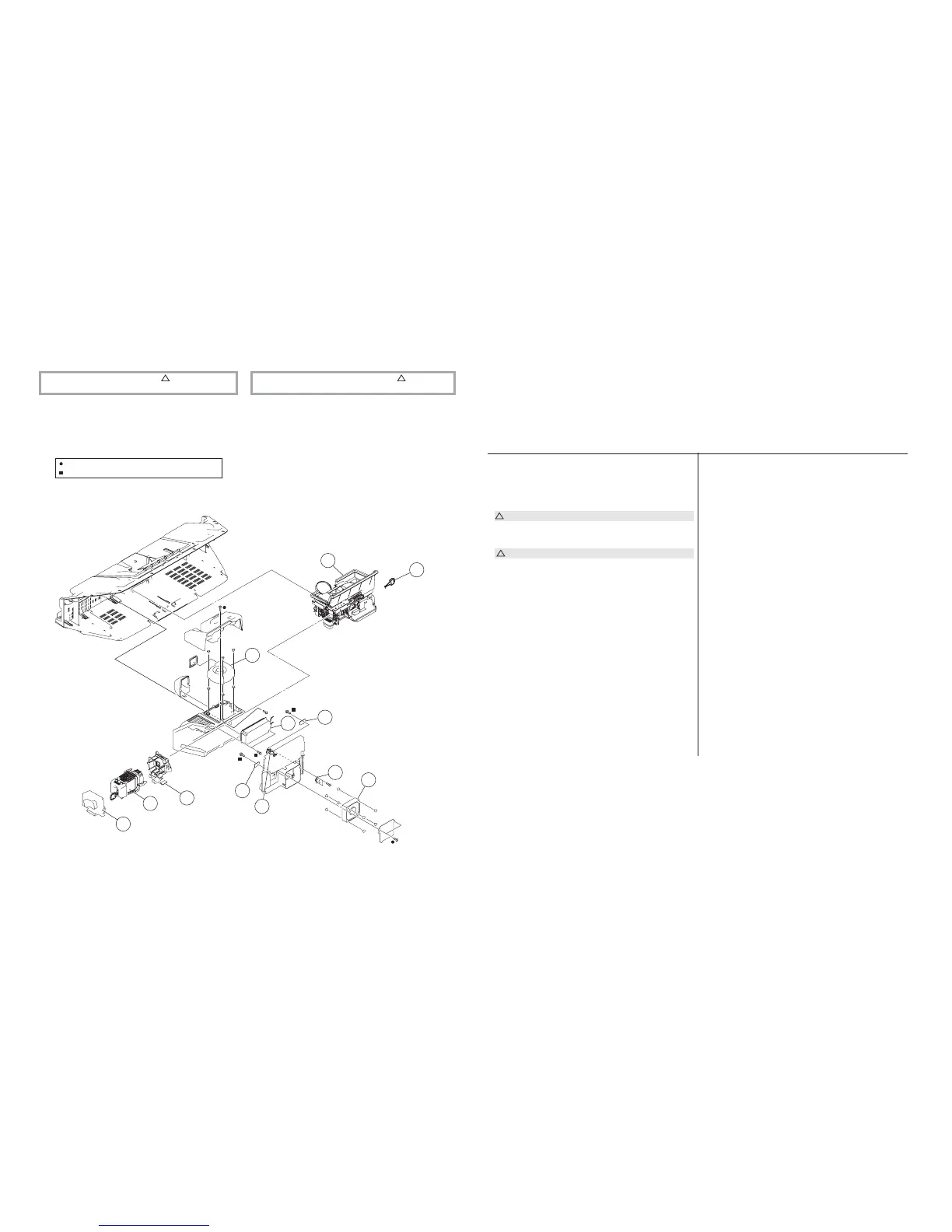

4-3. OPTICS UNIT BLOCK ASSEMBLY AND LAMP ASSEMBLY
101 X-2108-370-1 DOOR ASSY, LAMP
102 F-9308-7500 LAMP BLOCK ASSEMBLY
103 A-1177-123-A T2 BOARD, MOUNTED
104 A-1177-122-A T1 BOARD, MOUNTED
105 4-035-160-01 PURSE LOCK (S) (DIA. 12)
!
106 1-787-373-11 D.C. FAN
107 1-576-951-11 THERMOSTAT
108 A-1177-121-A S2 BOARD, MOUNTED
109 1-468-936-13 POWER SUPPLY BLOCK
!
110 1-787-374-11 D.C. FAN
111 A-1197-240-A OPTICS UNIT BLOCK(IRP)ASSY
(KDF-46E2000/46E2010 ONLY)
The C Board is part of the Optics Unit Block Assembly
and cannot be ordered separately.
111 A-1197-241-A OPTICS UNIT BLOCK(IRP)ASSY
(KDF-50E2000/50E2010 ONLY)
The C Board is part of the Optics Unit Block Assembly
and cannot be ordered separately.
111 A-1197-243-A OPTICS UNIT BLOCK(IRP)ASSY
(KDF-55E2000/55E2010 ONLY)
The C Board is part of the Optics Unit Block Assembly
and cannot be ordered separately.
112 1-830-099-41 LEAD WIRE WITH CONNECTOR (LVDS)
2-580-640-01 SCREW, +BVTP2 4X16
7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
104
105
108
111
110
112
109
107
106
102
101
103
Caution:
When replacing the Optics Unit Block Assembly or the DC Fan be sure to remove any dust particles.
