KDF-46E2000/46E2010/50E2000/50E2010/55E2000/55E2010
KDF-46E2000/46E2010/50E2000/50E2010/55E2000/55E2010
27

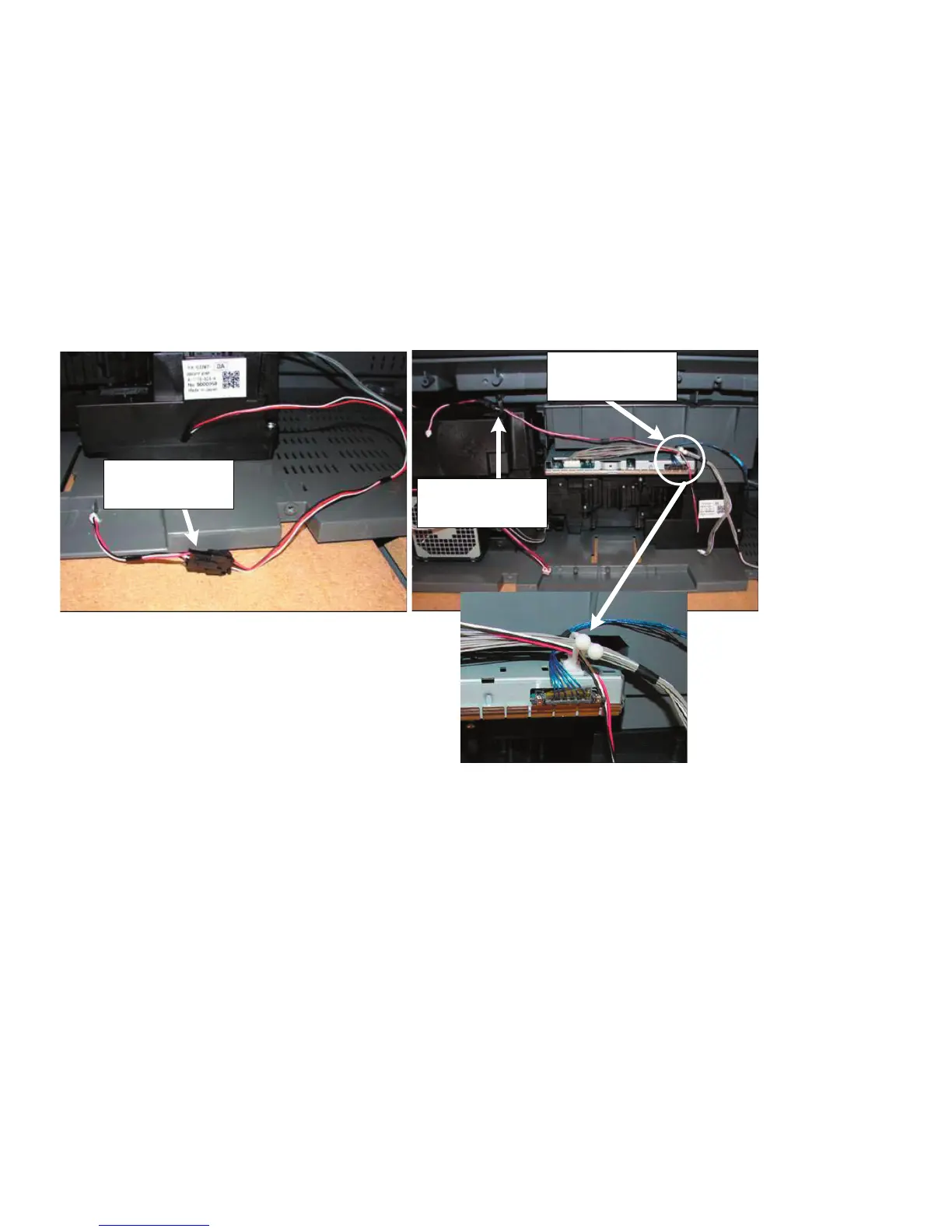

Install Conn Assy
1-910-024-21 to "FAN1"
Optical Block Fan.
Dress 15P CN9000 [C]
LVDS Connector and Fan
Connector to Purse Lock
on [C] Shield
Route Optical Block Fan
to Wire Holder to avoid
being “Pinched” when [G]
Shield is installed
C BLOCK WIRE DRESSING
