KDF-46E2000/46E2010/50E2000/50E2010/55E2000/55E2010
KDF-46E2000/46E2010/50E2000/50E2010/55E2000/55E2010
31

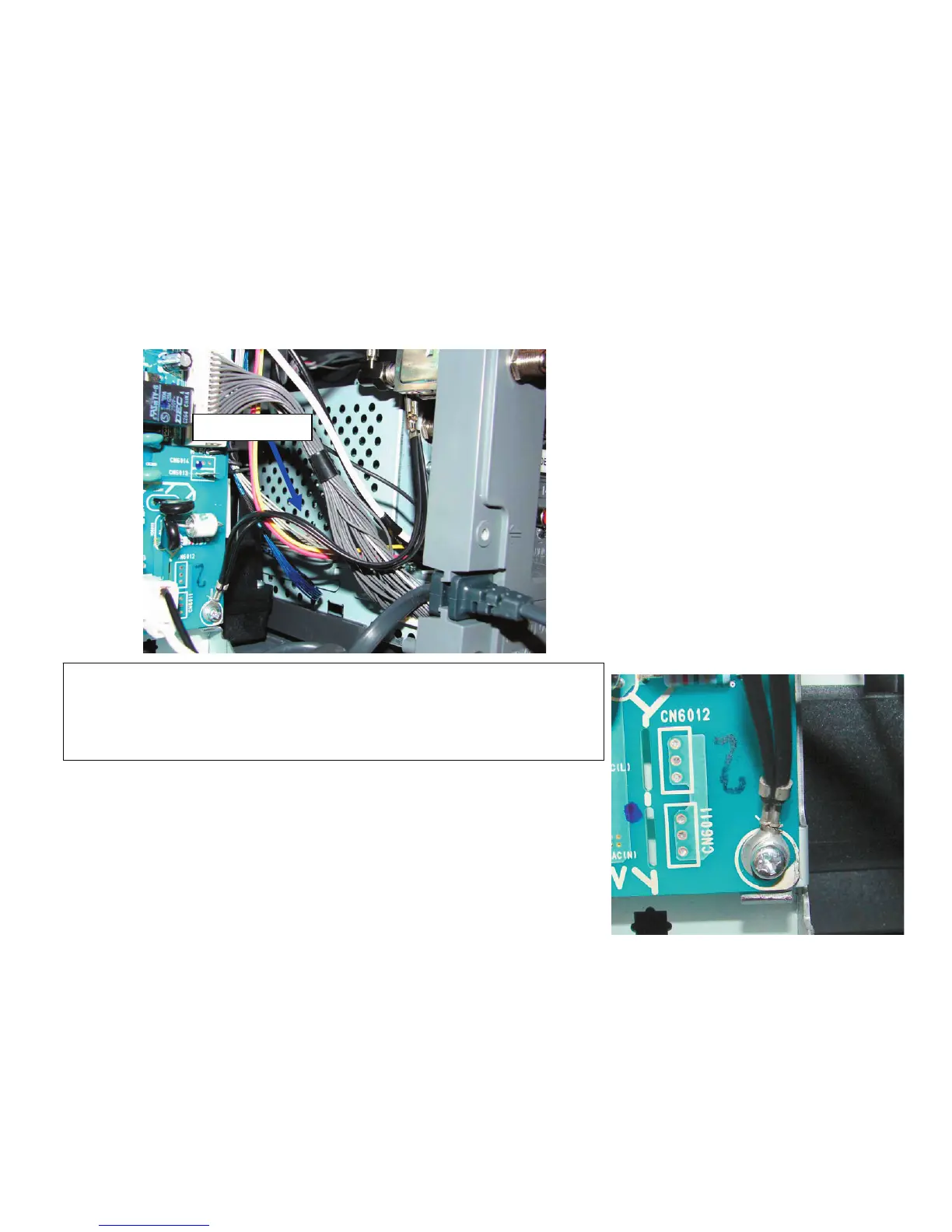

x Secure Ring Terminal of 1-910-016-90 to G-Block as shown above.
x Install Faston Terminal to Antenna Switch.
Note: Orientation of ring terminal should be towards the top of the set.
1-910-016-90
OPTICAL BLOCK ASSEMBLY LIGHTNING GROUND POSITION
