KDF-46E2000/46E2010/50E2000/50E2010/55E2000/55E2010
KDF-46E2000/46E2010/50E2000/50E2010/55E2000/55E2010
34
SPEAKER GRILL WIRE DRESSING (CONTINUED)

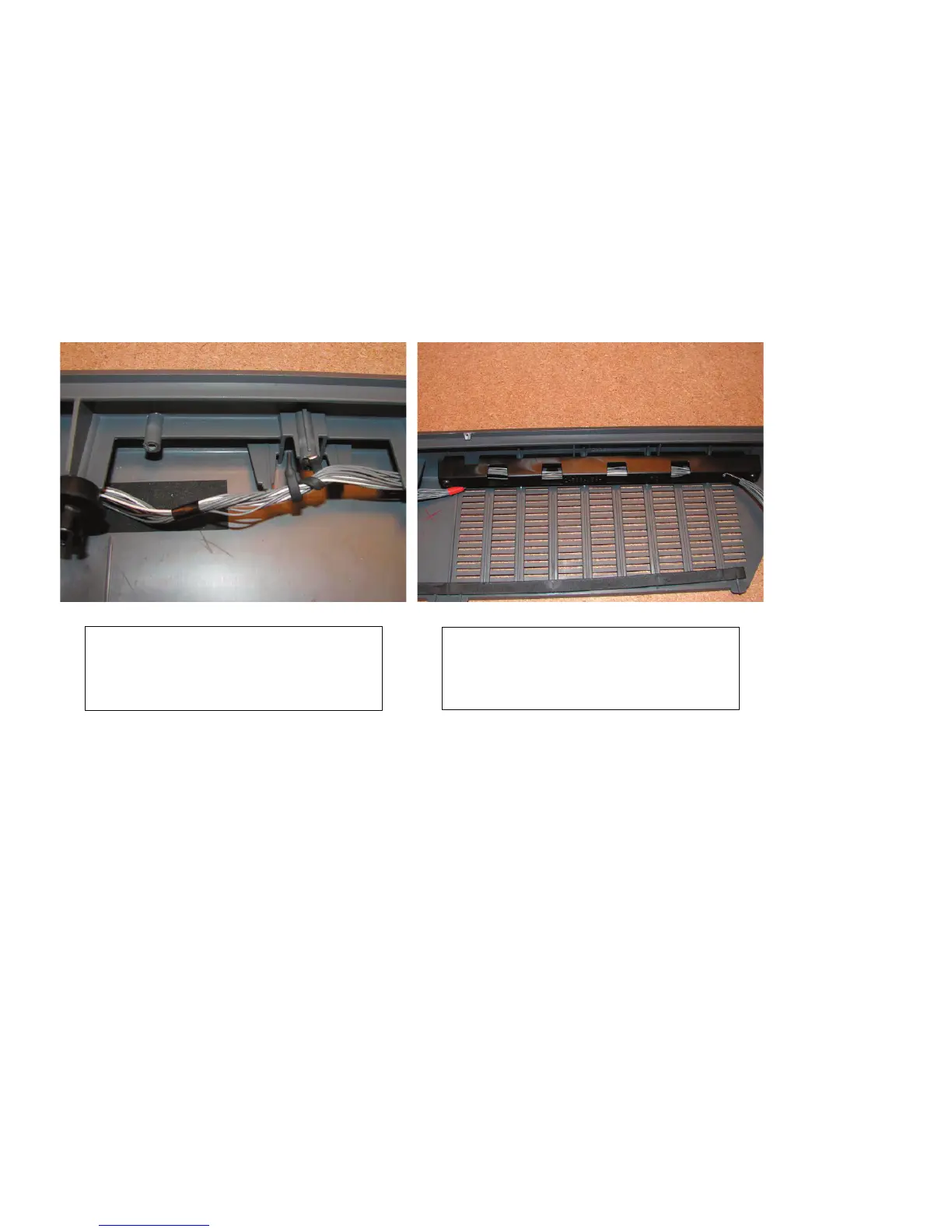

Dress HA/HB Connector Assy to Wire holder as shown above.
When routing HA/HB Connector Assy through Wire Holder
“RED” tape should be approximately in the position shown
above.
