KDF-46E2000/46E2010/50E2000/50E2010/55E2000/55E2010
KDF-46E2000/46E2010/50E2000/50E2010/55E2000/55E2010
46

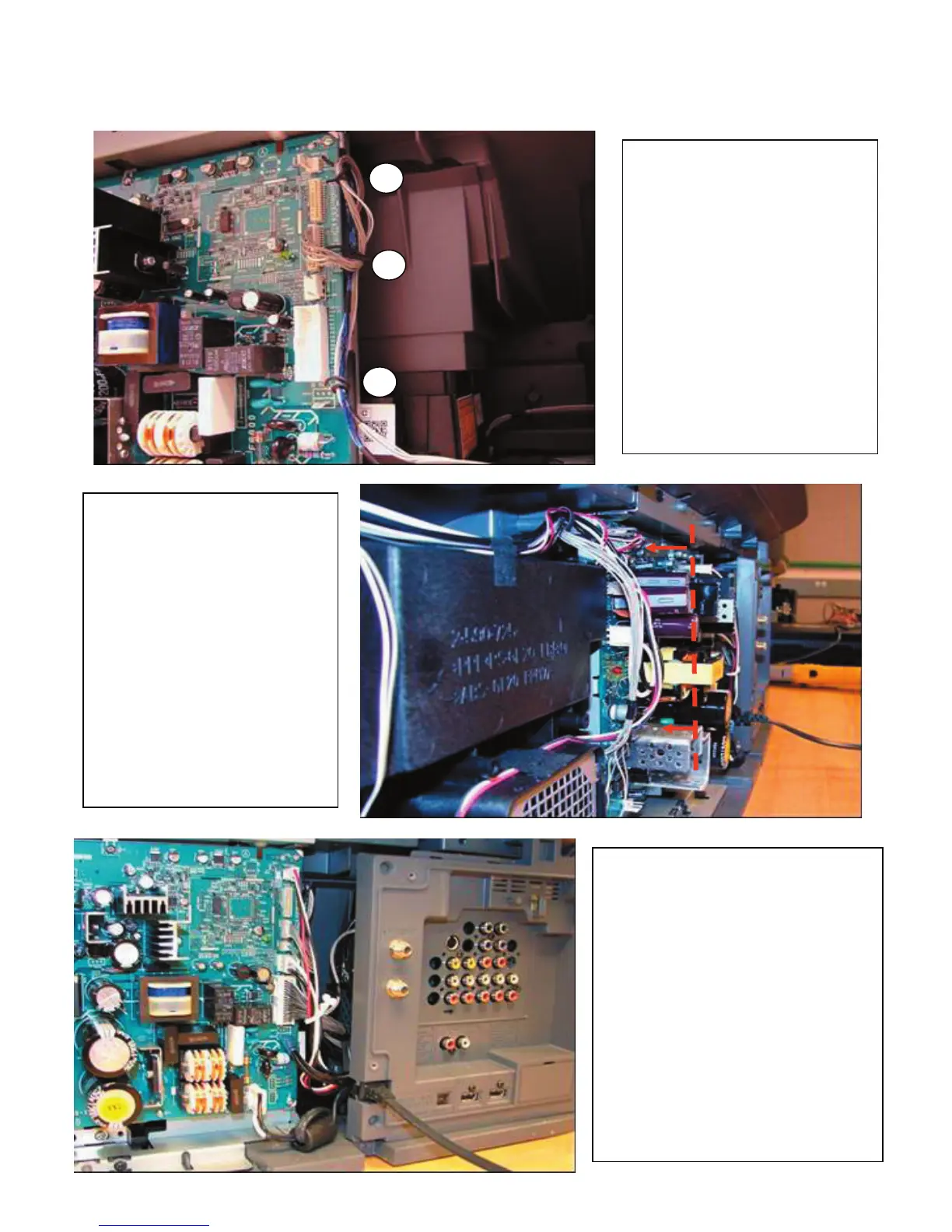

G-Board Wire Pin Holders
Instructions. There are (3)
wire pin Holders on the [G]
board. See below to see which
wires are dressed to each wire
pin holder
1. LVDS and 8P CN6009[G]
2. LVDS, 8P CN6009, and
7P CN3004[B]
3. LVDS and 7P CN3004[B]
1
2
3
When Dressing 1-910-024-29
and Duct Block Fan to wire
Holder ensure the wires are
not positioned above
capacitors on [G].
This is to avoid the connector
wires from touching the rear
cover.
Install Purse Lock
404928101 PURSE LOCK (DIA.11)
Purselock should hold the
following:
32P Conn Assy [G] to [B]
3P Conn Assy [G] to [K]
3P Conn Assy [G] to ANT SWT
3P Conn Assy [G] to B-Blk FAN
G BOARD WIRE DRESSING CAUTION POINTS
