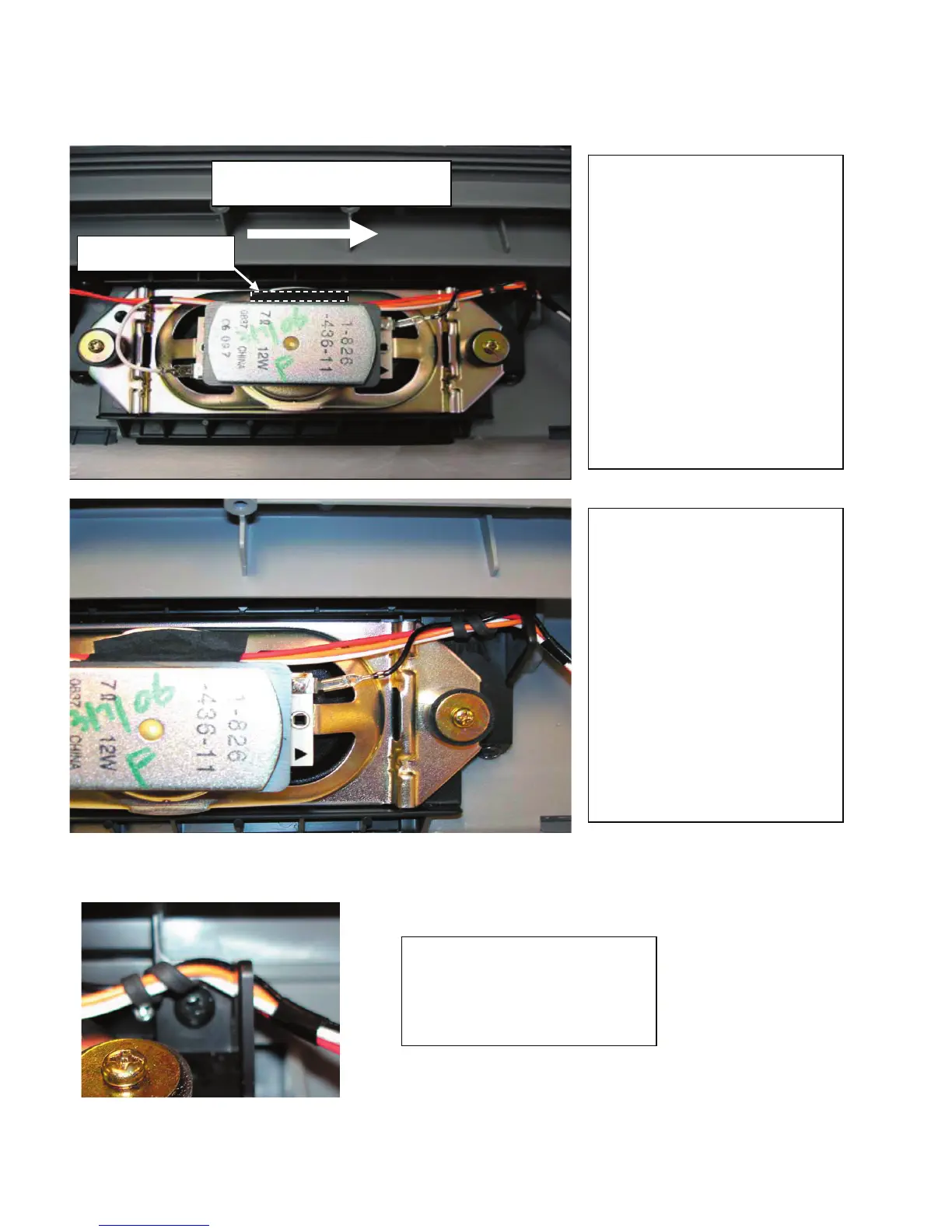

Apply Himelon tape to speaker
wire as shown to the left.
Speaker wire must be placed
inside Grooved slot in speaker
and then secured with Himelon
Tape.
Before applying tape ensure as
much slack is taken out of the
wire by pulling it towards the
negative terminal.
Wire Holder is installed on
speaker bracket as shown.
Remove as much slack out of
wire before dressing it to the
wire holder.
ONLY FOR 50" MODELS
Pull wire in direction of arrow to
take out slack
265206401 TAPE,
HIMELON (20X40)
After dressing to wire holder
dress wire through speaker
bracket as shown to the left.
LEFT SPEAKER WIRE DRESSING CAUTION POINTS
