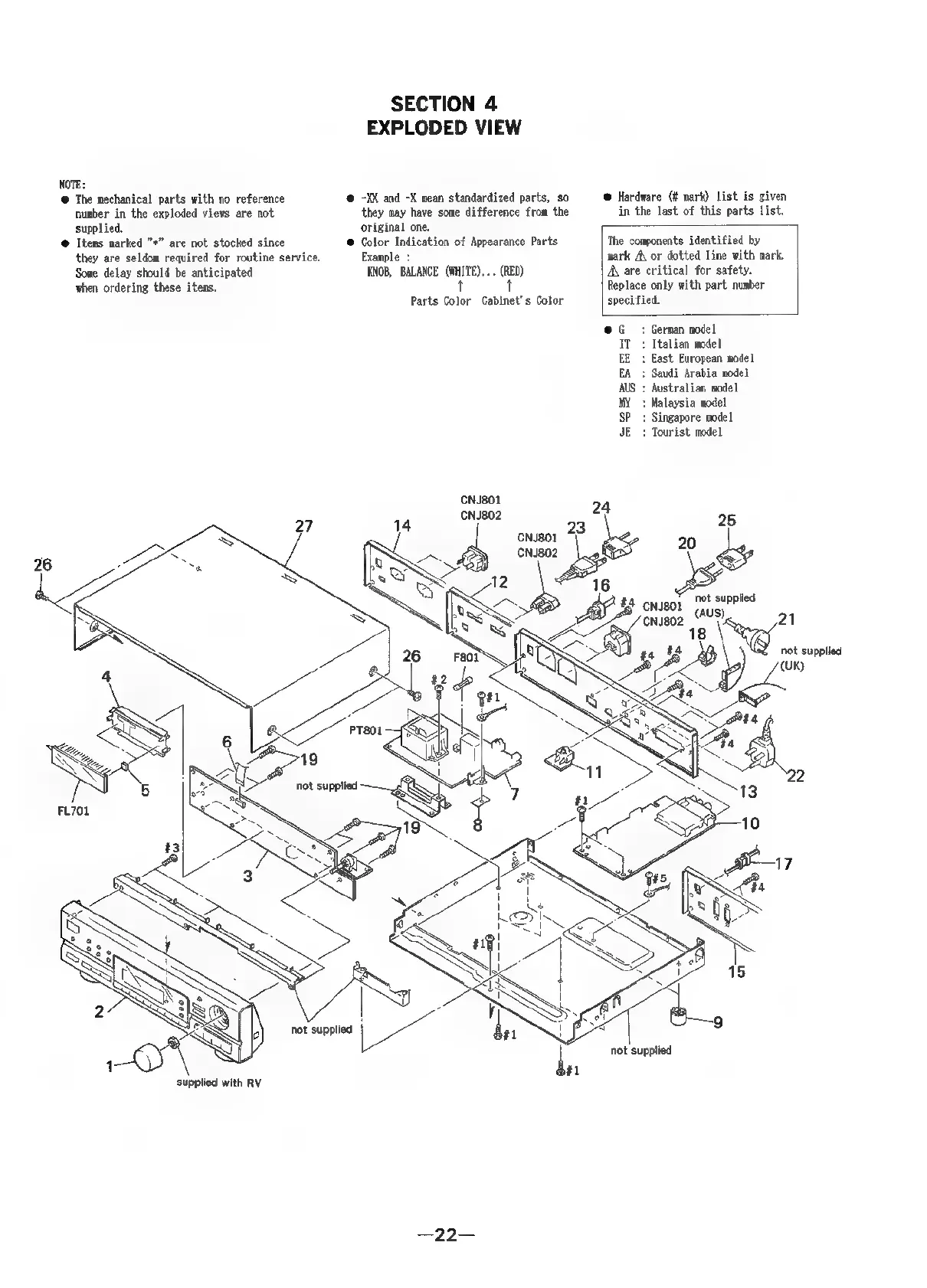

Sony LBT-A57CD - Section 4 Exploded View (ST-D709)

SECTION 4
EXPLODED VIEW
NOTE:
@ The mechanical parts with no reference @ -XX and -X mean standardized parts, so
number in the exploded views are not they may have some difference from the
supplied. original one.
@ Items marked "*” are not stocked since @ Color Indication of Appearance Parts
they are seldom required for routine service. Example :
Some delay should be anticipated KNOB, BALANCE (WHITE)... (RED)
when ordering these items. t 1
Parts Color Cabinet’s Color
supplied with RV
—22—
@ Hardware (# mark) list is given
in the last of this parts list.
The components identified by
mark 4\ or dotted line with mark.
A are critical for safety.
Replace only with part number
specified.
@G : German model
IT : Italian model
EE : East European model
FA: Saudi Arabia model
AUS : Australian model
JE: Tourist model
not supplied
