[G Bias Adjustment]
Condition:
Input signal SVGA 60 Hz: RGB 0.7 Vp-p, 16 Step
Measurement point MA-324 (H) board CN206 pin 3
Measuring equipment Oscilloscope
Adjustment page F
Adjustment address 6C
Specification value 8.4 ± 0.1 Vp-p
Connection:
Adjustment Procedure:
(1) Connect an oscilloscope to the CN206 pin 3 on the MA-
324 (H) board.
(2) Set (or confirm) data: 01 to page: 0, address: 01.
(Cancel F page protect)
(3) On page: F, address: 6C, change data with the PLAY and
STOP buttons and press the PAUSE button to write data so
that the I level of waveform on the oscilloscope satisfies
the specification value.
Adjustment and Connection Location: MA-324 (H) board
(see page 3-30)
[B Gain Adjustment]
Condition:
Input signal SVGA 60 Hz: RGB 0.7 Vp-p, 16 Step
Measurement point MA-324 (H) board CN206 pin 5
Measuring equipment Oscilloscope
Adjustment page F
Adjustment address 6A
Specification value 2.7 ± 0.1 Vp-p
Connection:
Adjustment Procedure:
(1) Connect an oscilloscope to the CN206 pin 5 on the MA-
324 (H) board.
(2) Set (or confirm) data: 01 to page: 0, address: 01.
(Cancel F page protect)
(3) On page: F, address: 6A, change data with the PLAY and
STOP buttons and press the PAUSE button to write data so
that the J level of waveform on the oscilloscope satisfies
the specification value.
Adjustment and Connection Location: MA-324 (H) board
(see page 3-30)
[B Bias Adjustment]
Condition:
Input signal SVGA 60 Hz: RGB 0.7 Vp-p, 16 Step
Measurement point MA-324 (H) board CN206 pin 5
Measuring equipment Oscilloscope
Adjustment page F
Adjustment address 6D
Specification value 8.4 ± 0.1 Vp-p
Connection:
Adjustment Procedure:
(1) Connect an oscilloscope to the CN206 pin 5 on the MA-
324 (H) board.
(2) Set (or confirm) data: 01 to page: 0, address: 01.
(Cancel F page protect)
(3) On page: F, address: 6D, change data with the PLAY and
STOP buttons and press the PAUSE button to write data so
that the K level of waveform on the oscilloscope satisfies
the specification value.
Adjustment and Connection Location: MA-324 (H) board
(see page 3-30)
+
–

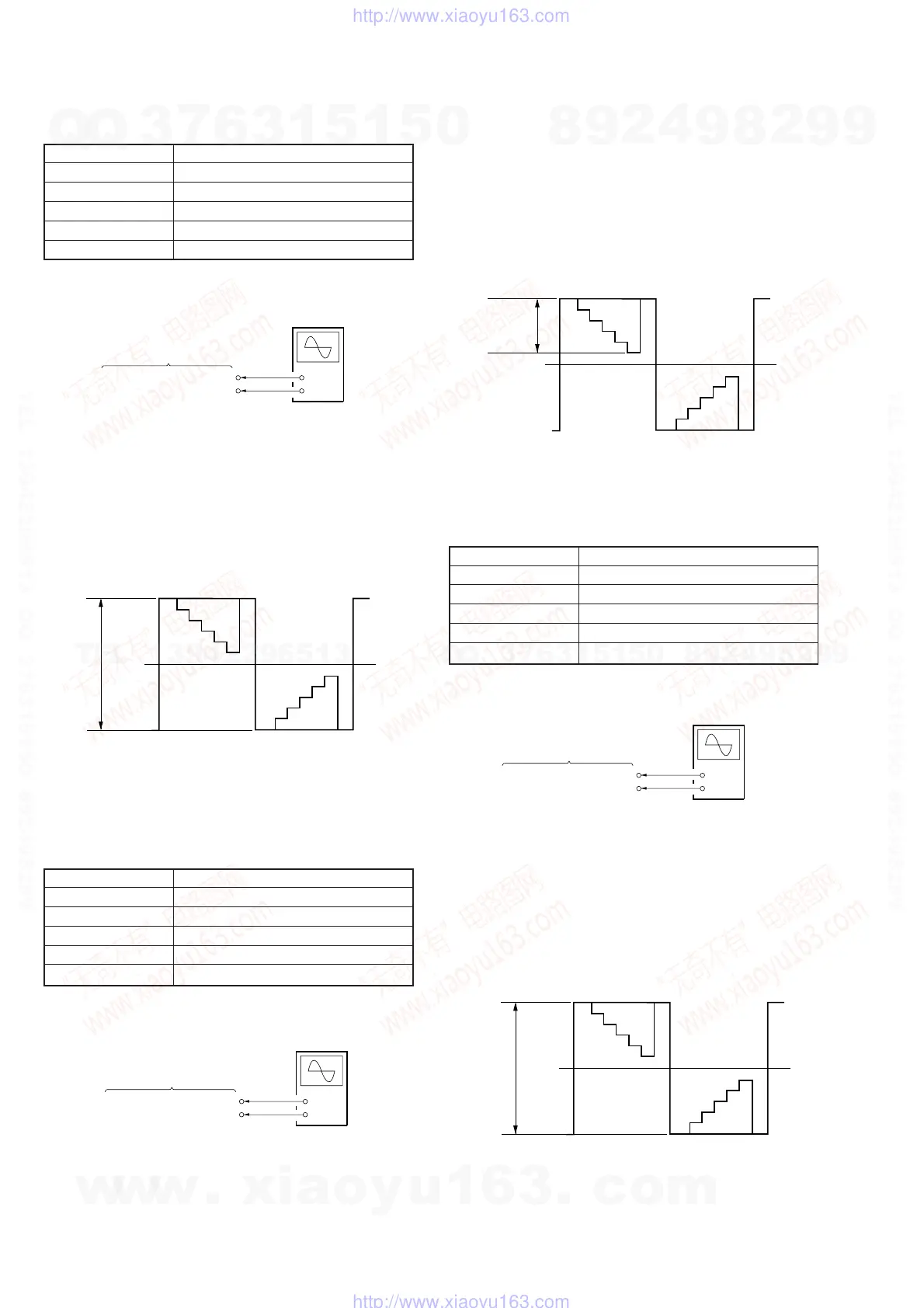

Oscilloscope
(DC range)
CN206 pin
3
(SIG G 1)
CN206 pin
9
(GND)
MA-324 (H) Board
I
Black
Level
Black
Level
+
–
Oscilloscope
(DC range)
CN206 pin
5
(SIG B 1)
CN206 pin
9
(GND)
MA-324 (H) Board
J
Black
Level
White
Level
+
–
Oscilloscope
(DC range)
CN206 pin
5
(SIG B 1)
CN206 pin
9
(GND)
MA-324 (H) Board
K
Black
Level
Black
Level
w
w
