6-2
1 3-989-997-11 PANEL, FRONT
2 1-803-159-11 LIQUID CRYSTAL, FILM (PANEL)
3 3-050-003-01 HOLDER (C), SHUTTER
4 3-989-999-11 CABINET, LOWER
5 3-704-197-32 SCREW (M1.4X3.0)
6 3-050-058-11 LOCK, HOOD
7 3-050-004-01 HOLDER (S), SHUTTER
9 3-050-253-01 CUSHION, LIGHT INTERCEPTION
10 3-050-254-02 SHEET (A), LIGHT INTERCEPTION
11 A-7093-809-A OPTICS BLOCK ASSY
12 3-989-995-01 RUBBER (C), FLOATING
13 3-704-243-62 SCREW (P1.7X4.0)
14 3-989-996-01 RUBBER (R), FLOATING
15 3-713-791-41 SCREW (M1.7X5), TAPPING, P2
0 16 1-475-821-21 LIGHT UNIT, BACK
17 4-638-895-01 SHEET, REFLECTOR
18 3-050-006-01 CASE (LOWER), SHIELD
19 A-8056-053-A LC-61 (F) MOUNT
20 3-050-005-01 CASE (UPPER), SHIELD
21 3-989-998-21 CABINET, UPPER
22 3-713-786-01 SCREW (M2X4)
23 X-4622-066-1 CABINET ASSY, REAR
24 3-050-009-01 SHEET, COPPER LEAF
25 4-639-695-01 PLATE, LENS FIXED
26 4-639-828-01 INSULATING SHEET, LC
* 27 4-640-984-01 INSULATING SHEET, LC
28 4-640-100-01 SHEET, FLEXIBLE FIXED
* 29 4-641-076-01 TAPE, ADHESION
* 30 4-641-177-01 SHEET, DUST PROTECTION

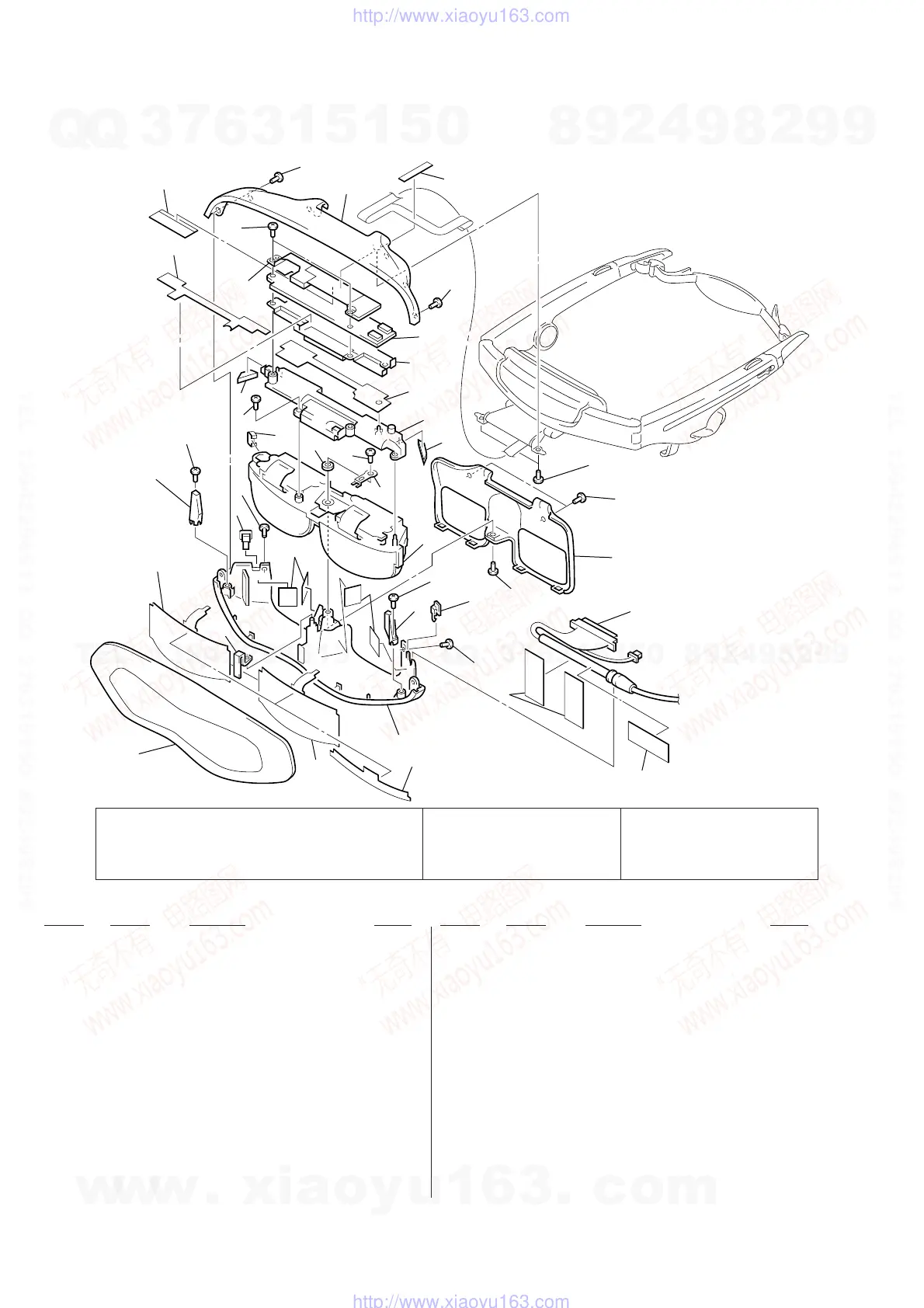

(1) OPTICS BLOCK SECTION
5
21
5
15
20
15
14
5
7
2
3
6
5
9
10
4
2
1
5
6
7
5
11
12
13
19
18
17
16
22
5
23
5
24
Cable, connection
(See page 5-5.)
25
9
26
27
28
30
29
29
0印の部品，または0印付きの点線で囲まれた部品は，
安全性を維持するために重要な部品です。
従って交換時は，必ず指定の部品を使用して下さい。
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
