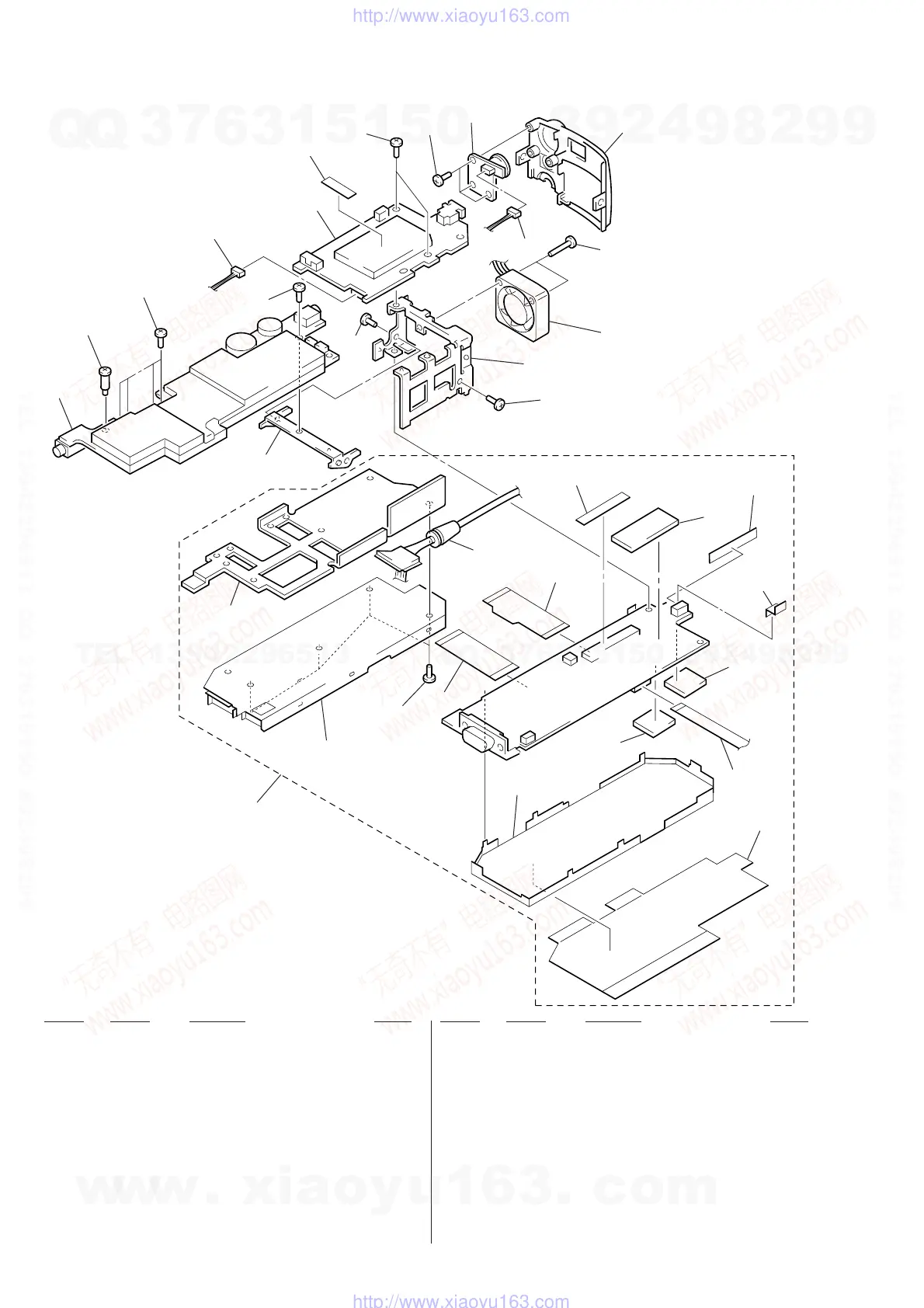

(5) IF-BOX BLOCK SECTION-2
201 A-8056-072-A MA-324 (H) COMPL
202 X-3948-754-1 CASE (UPPER) ASSY, MA SHIELD
203 1-783-673-11 CABLE, CONNECTION
204 3-719-381-31 SCREW (M2X3)
205 A-8056-066-A YC-148 (H) COMPL
206 A-8056-068-A DD-107 (H) COMPL
207 3-948-339-01 SCREW, TAPPING
208 A-8056-071-A JK-136 (H) MOUNT
209 X-4622-197-1 CABINET (IF) ASSY, FRONT
210 4-640-745-02 SCREW, FAN BINDING
211 1-670-350-11 FP-662 FLEXIBLE BOARD
212 3-050-102-01 SHEET (A), MA RADIATION
213 3-050-336-01 SHEET (B), MA RADIATION
214 3-050-083-01 CASE (LOWER), MA SHIELD
215 1-783-675-11 CABLE, FLEXIBLE FLAT (FFC-233)
216 1-783-676-11 CABLE, FLEXIBLE FLAT (FFC-234)
217 3-050-340-01 SHEET, HARNESS FIXED
218 3-050-335-02 SHEET (C), COVER
219 4-640-702-01 SHEET (C), MA RADIATION
220 4-641-214-01 INSULATING SHEET (HORIZONTAL)
222 7-627-553-18 SCREW, PRECISION +P 2X2
223 1-958-818-11 HARNESS, DY-51
224 1-959-295-11 HARNESS, YJ-1
M701 1-763-122-21 MOTOR, DC FAN
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
208
207
206
204
209
210
204
204
205
not supplied
not
supplied
not supplied
not
supplied
203
211
204
214
201
202
M701
204
217
218
216
215
217
212
213
not supplied
223
224
222
220
219
