11. REF OUT: BNC, 75 Ω
Black burst signal output for 59.94 Hz (NTSC) or 50 Hz
(PAL).
12. REF IN: BNC, 75 Ω
Black burst signal or tri-level sync signal input for 59.94 Hz
(NTSC) or 50 Hz (PAL)
13. SDI IN: BNC, 75 Ω
D1 SDI Input
HD SDI Input
14. SDI OUT: BNC, 75 Ω
D1 SDI Output
HD SDI Output
15. VIDEO IN: BNC, 75 Ω
Composite video input
16. VIDEO OUT: BNC, 75 Ω
Composite video output

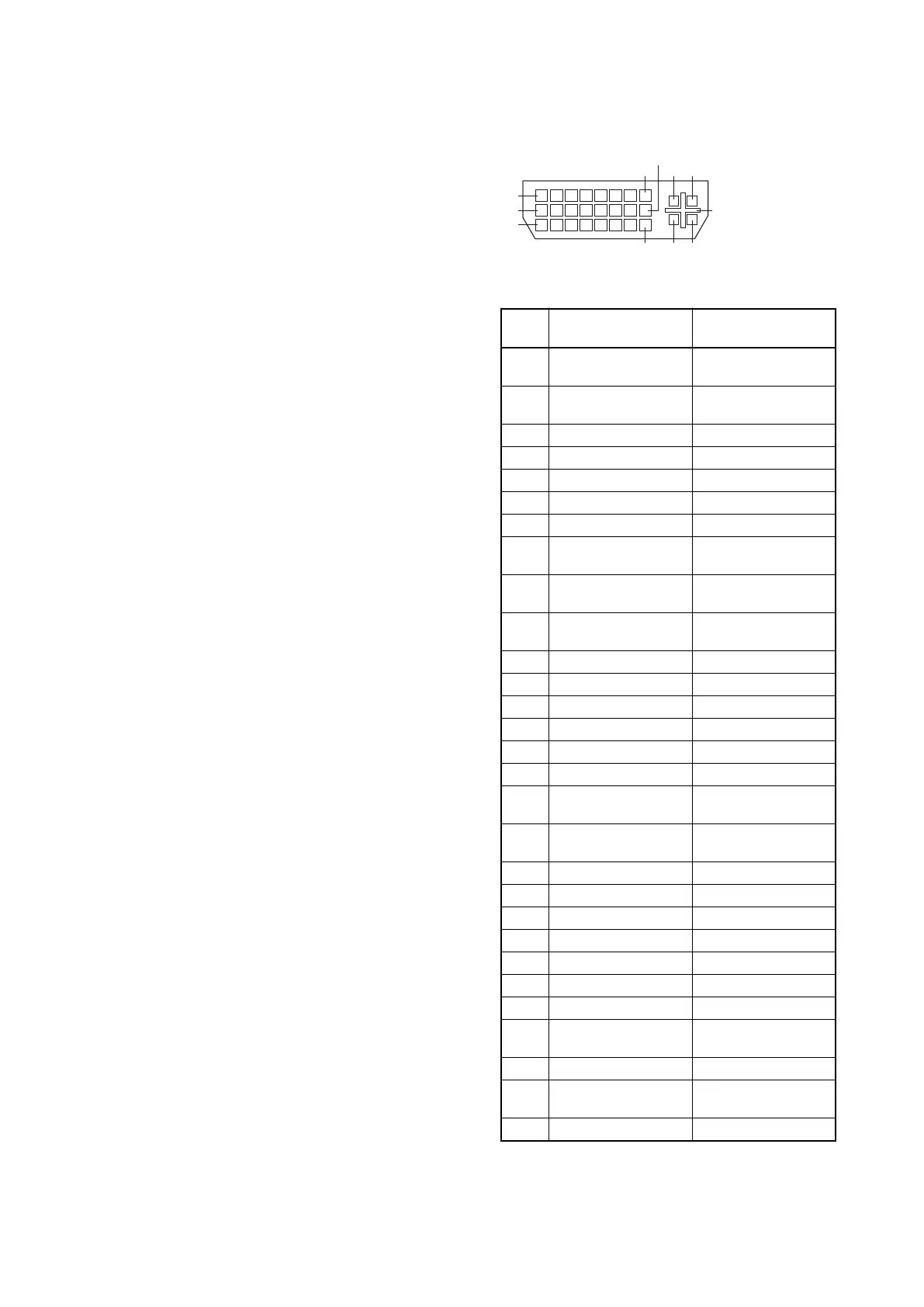

17. DVI-I IN: DVI-I (29-pin)
1
C1
17
9
8 C2
C3 C4
C5
24
(External View)
1
C1
17
9
8
16
C2
C3 C4
C5
24
Pin
No.
Signal Function
1 Data 2 – Digital video signal, red (
–)
2 Data 2 + Digital video signal, red
(+)
3 Data 2/4 shield Shield
4 Data 4 – Not used
5 Data 4 + Not used
6 DDC Clock DDC clock
7 DDC Data DDC data
8 Analog Vertical Sync Analog vertical synchro-
nizing signal
9 Data 1 – Digital video signal,
green (–)
10 Data 1 + Digital video signal,
green (+)
11 Data 1/3 shield Shield
12 Data 3 – Not used
13 Data 3 + Not used
14 + 5V +5 V power source
15 Ground Signal ground
16 Hot Plug Detect Hot plug signal
17 Data 0 – Digital video signal, blue
(–)
18 Data 0 + Digital video signal, blue
(+)
19 Data 0/5 shield Shield
20 Data 5 – Not used
21 Data 5+ Not used
22 Clock shield Clock shield
23 Clock + Digital clock signal (+)
24 Clock – Digital clock signal (–)
C1 Analog Red Analog video signal, red
C2 Analog Green Analog video signal,
green
C3 Analog Blue Analog video signal, blue
C4 Analog Horizontal Sync Analog horizontal syn-
chronizing signal
C5 Analog Ground Analog signal ground
