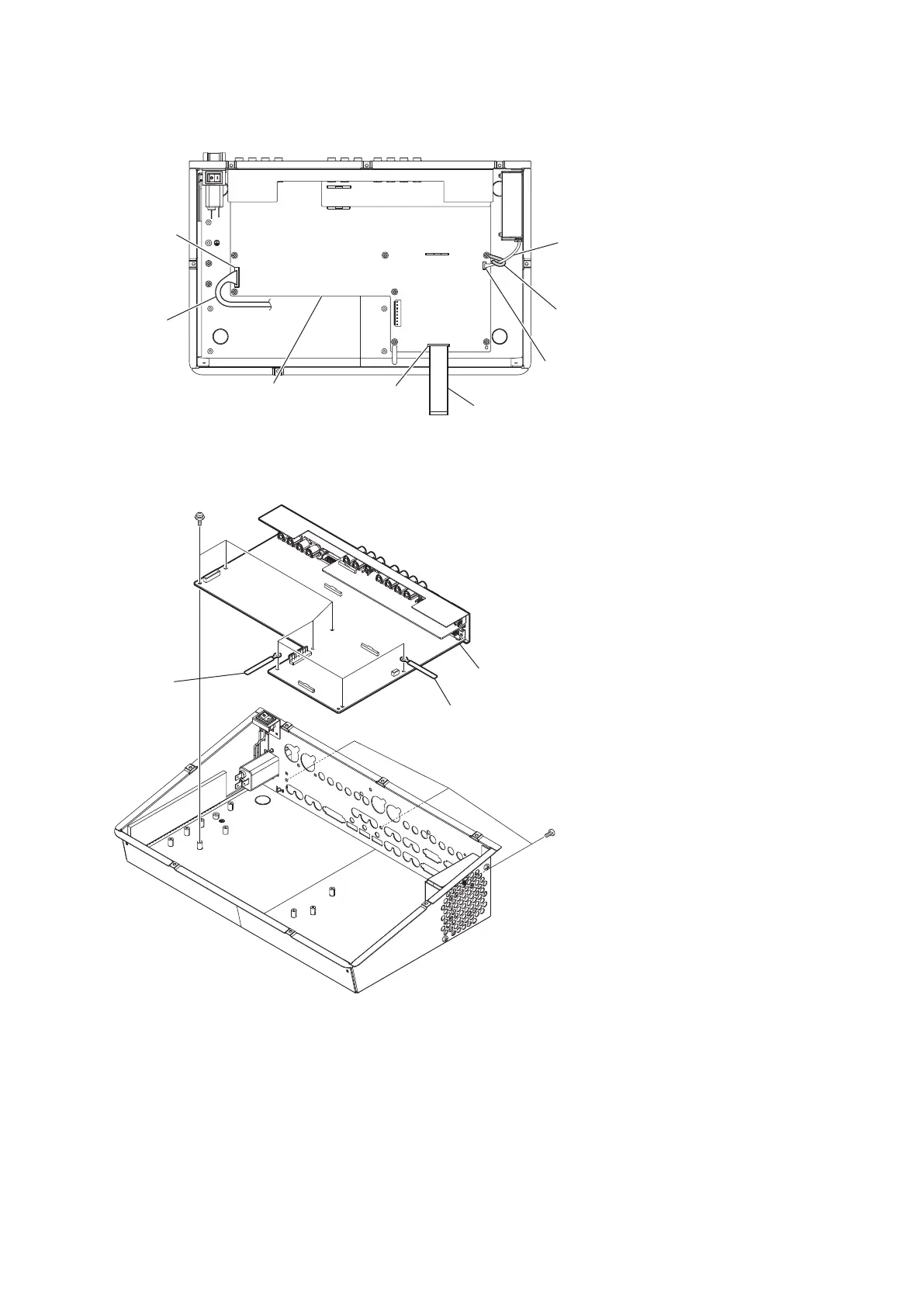

3. Disconnect the flexible flat cable (45 core) from the connector (CN900) on the MIX-54 board.
Harness
Harness
MIX-54 board
Flexible flat cable
(45 core)
CN900
CN901
CN3300
Clamp
4. Remove the seven screws (PSW3 x 8) and three screws (B3 x 6) to remove the harness clamp and the board
assembly-1.
Board assembly-1
Clamp
Clamp
PSW3 x 8
B3 x 6
5. Disconnect the flexible flat cable (50 core) from the connector (CN4900) on the MIX-54 board.
