Sony MDS-JA20ES Service Manual

– 19 –

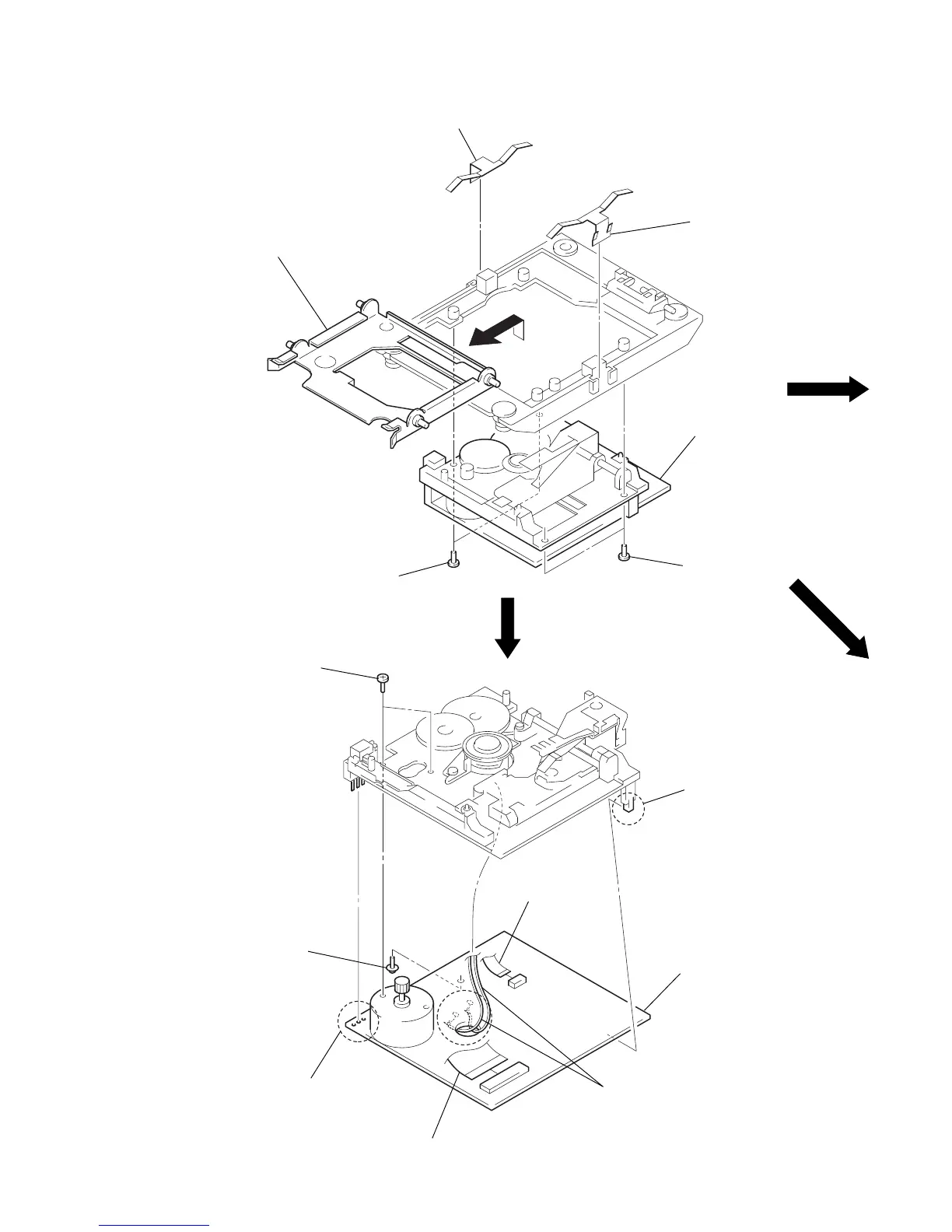

BASE UNIT
BD BOARD
1 leaf spring (UDL)
2 leaf spring (UDR
)
3 Remove the holder assembly
in the arrow direction A .
4 two screws
(P2.6 × 6)
4 two screws
(P2.6 × 6)
5 base unit
A
5 two screws
(P1.7
× 2.5)
4 screw
(M7)
7 BD boar
d
2 Break the soldering
of switch lead.
3 flexible board
(CN101)
1 Break the soldering of
motor lead.
3 flexible board
(CN104)
6 claw
