Sony MDS-JA20ES Service Manual

– 71 –

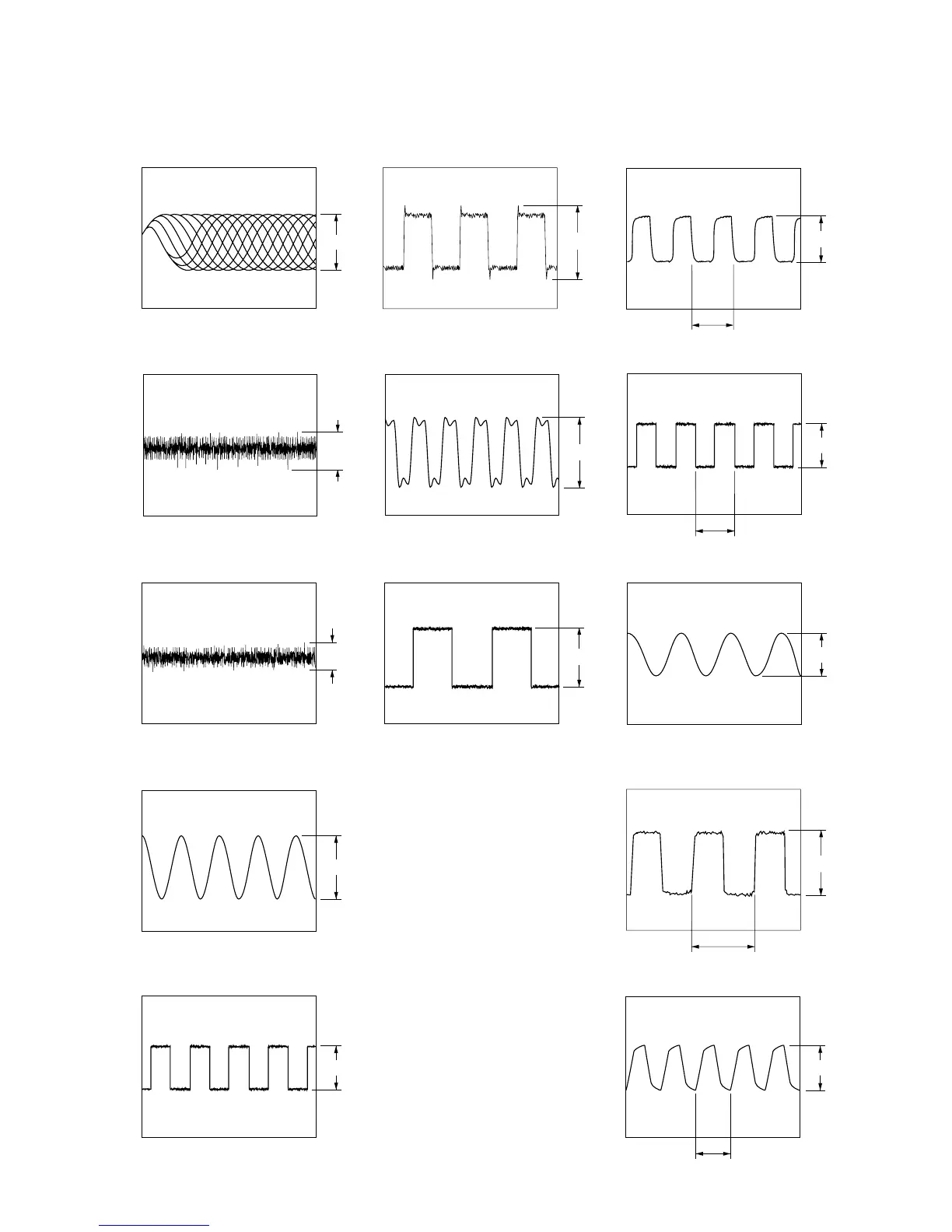

• Waveforms
– BD Board –
1 IC101 1 (I), 2 (J) (Play mode)
2 IC101 4 (A) (Play mode)
3 IC101 8 (E), 9 (F) (Play mode)
4 IC121 !§ (OSC1)
5 IC121 @¶ (LRCK)
6 IC121 @• (XBCK)
7 IC121 @ª (FS256)
8 IC121 (º (FS4)
– AU Board –
1 IC200 2 (BCK)
2 IC200 4 (LRCK)
3 IC200 @• (XOUT)
4 IC200 $º (64FSO)
5 IC200 $£ (256FSO)
1.2 ± 0.2
Vp-p
Approx.
0.1 Vp-p
Approx.
0.06 Vp-p
2.9 Vp-p
44.64 MHz
3.4 Vp-p
44.1 kHz
2.822 MHz
3.9 Vp-p
4.2 Vp-p
11.29 MHz
4.2 Vp-p
176.1 kHz
3.3 Vp-p
354 ns
3.6 Vp-p
22.7
µ s
4.9 Vp-p
45 MHz
5.5 Vp-p
354 ns
4.8 Vp-p
89 ns
