Sony MDS-JA20ES Service Manual

– 88 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

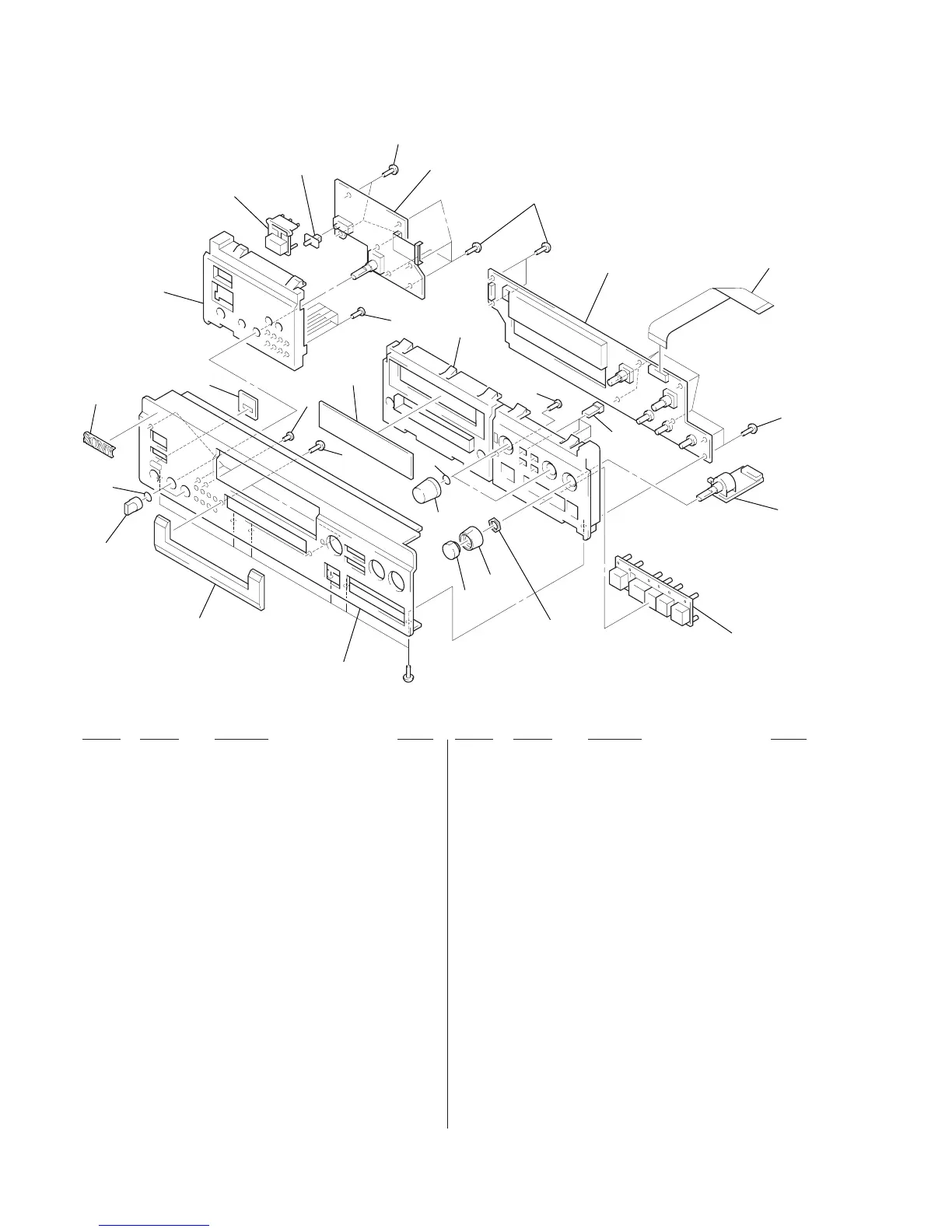

(2) FRONT PANEL SECTION
51 4-998-734-01 PANEL, FRONT (GOLD) (AEP, UK)
51 4-998-734-11 PANEL, FRONT (BLACK) (AEP, UK)
51 4-998-734-21 PANEL, FRONT (BLACK) (US, Canadian)
52 4-998-741-01 ESCUTCHEON (MD) (GOLD)
52 4-998-741-11 ESCUTCHEON (MD) (BLACK)
53 4-992-539-01 KNOB (VOL) (GOLD)
53 4-992-539-11 KNOB (VOL)(BLACK)
54 3-354-981-01 SPRING (SUS), RING
55 4-942-568-41 EMBLEM (NO.5), SONY (BLACK)
55 4-942-568-51 EMBLEM (NO.5), SONY (GOLD)
56 4-987-520-01 WINDOW (REMOTE CONTROL) (GOLD)
56 4-987-520-11 WINDOW (REMOTE CONTROL) (BLACK)
57 4-998-735-01 BASE (L), PANEL (GOLD)
57 4-998-735-11 BASE (L), PANEL (BLACK)
58 4-998-737-01 BUTTON (POWER) (GOLD)
58 4-998-737-11 BUTTON (POWER) (BLACK)
59 4-971-774-01 KNOB (TIMER) (BLACK)
59 4-971-774-21 KNOB (TIMER) (GOLD)
60 4-951-620-01 SCREW (2.6X8), +BVTP
* 61 A-4724-138-A PSW BOARD, COMPLETE (US, Canadian)
* 61 A-4724-147-A PSW BOARD, COMPLETE (AEP, UK)
* 62 A-4724-137-A FL BOARD, COMPLETE (US, Canadian)
* 62 A-4724-146-A FL BOARD, COMPLETE (AEP, UK)
* 63 1-669-293-11 ANALOG VOLUME BOARD
64 X-4949-721-1 BUTTON (PLAY) ASSY (GOLD)
64 X-4949-730-1 BUTTON (PLAY) ASSY (BLACK)
65 4-998-742-01 KNOB (REC-L) (GOLD)
65 4-998-742-11 KNOB (REC-L) (BLACK)
66 4-998-743-01 KNOB (REC-R) (GOLD)
66 4-998-743-11 KNOB (REC-R) (BLACK)
67 4-998-744-01 KNOB (AMS) (GOLD)
67 4-998-744-11 KNOB (AMS) (BLACK)
68 3-701-428-31 SCREW, +B 2.6 CLAW
69 4-987-519-01 INDICATOR (D2)
70 4-998-739-01 PLATE, INDICATION
71 4-992-540-01 BUTTON (FUNC) (GOLD)
71 4-992-540-11 BUTTON (FUNC) (BLACK)
72 4-998-736-01 BASE (R), PANEL (GOLD)
72 4-998-736-11 BASE (R), PANEL (BLACK)
73 4-992-542-01 BUTTON (EDIT) (GOLD)
73 4-992-542-11 BUTTON (EDIT) (BLACK)
74 1-783-987-11 WIRE (FLAT TYPE) (25 CORE)
61
60
59
58
57
56
55
54
53
52
51
66
65
64
63
60
74
73
71
71
#2
supplied
with RV760
68
69
70
54
67
72
62
60
