Sony MDS-JA20ES Service Manual

– 89 –
The components identified by
mark ! or dotted line with
mark ! are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 101 1-669-292-11 HEADPHONE BOARD
102 4-886-821-11 SCREW, S TIGHT, +PTTWH 3X6
* 103 1-669-294-11 AC BOARD
* 104 4-993-066-01 BRACKET (CASE)
105 4-998-740-01 PANEL, LOADING (GOLD)
105 4-998-740-11 PANEL, LOADING (BLACK)
106 1-783-988-11 WIRE (FLAT TYPE) (23 CORE)
107 1-783-985-11 WIRE (FLAT TYPE) (27 CORE) (NOT BENDED)
108 1-783-989-11 WIRE (FLAT TYPE) (11 CORE)
* 109 4-923-873-01 BRACKET, CORD STOPPER
110 3-703-244-00 BUSHING (2104), CORD
! 111 1-558-568-21 CORD, POWER (AEP)
! 111 1-559-583-21 CORD, POWER (US, Canadian)
! 111 1-696-586-11 CORD, POWER (UK)
112 3-704-515-21 SCREW (BV/RING)
* 113 4-998-731-11 PANEL, BACK (AEP, UK)
* 113 4-998-731-21 PANEL, BACK (US)
* 113 4-998-731-31 PANEL, BACK (Canadian)
* 114 1-669-454-11 RELEASE BOARD
115 1-783-986-11 WIRE (FLAT TYPE) (27 CORE) (BENDED)
* 116 A-4724-134-A POWER BOARD, COMPLETE (US, Canadian)
* 116 A-4724-143-A POWER BOARD, COMPLETE (AEP, UK)
* 117 A-4724-133-A DIGITAL BOARD, COMPLETE (US, Canadian)
* 117 A-4724-142-A DIGITAL BOARD, COMPLETE (AEP, UK)
* 118 A-4724-135-A AU BOARD, COMPLETE (US, Canadian)
* 118 A-4724-144-A AU BOARD, COMPLETE (AEP, UK)
119 1-783-984-11 WIRE (FLAT TYPE) (21 CORE)
120 4-929-074-01 SCREW (3X8)
121 3-946-435-11 SCREW (M2.6) (GOLD)
121 3-946-435-21 SCREW (M2.6) (BLACK)
122 3-831-441-99 CLOTH (6)
123 4-974-510-01 SCREW (+BV 3X8 B)
! T700 1-431-880-11 TRANSFORMER, POWER (AEP, UK)
! T700 1-431-881-11 TRANSFORMER, POWER (US, Canadian)

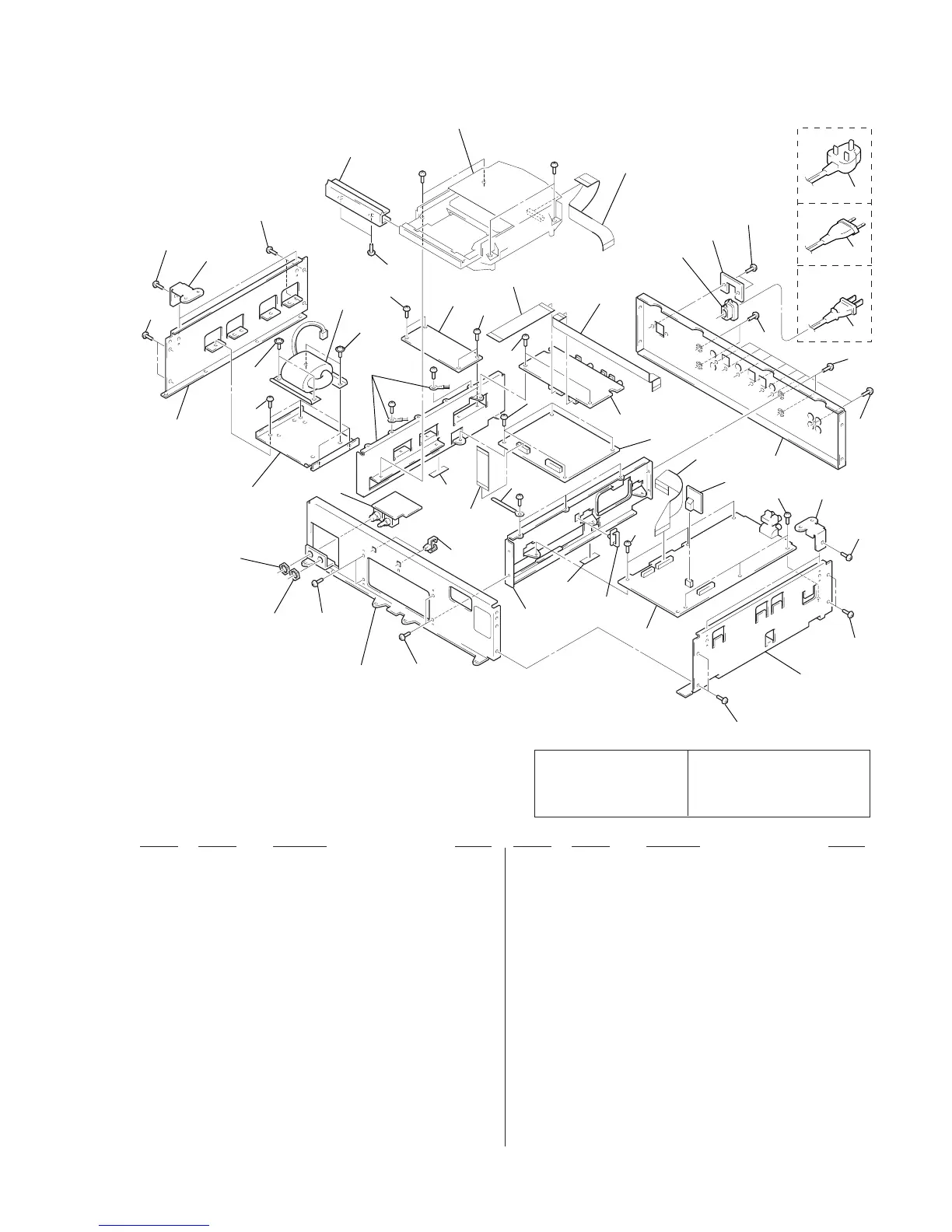

(3) CHASSIS SECTION
MDM-6A
#3
#3
105
120
104
120
120
102
123
101
120
119
122
102
not supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not supplied
not
supplied
supplied with
J790
#3
#3
#3
T700
103
121
123
123
123
123
118
120
120
120
supplied with
RV790
120
104
114
113
115
116
117
108
110
111
109
120
120
120
112
106
107
111
111
UK
AEP
US,
Canadian
122
123
123
