Sony MDS-M9 - Front Panel Section

— 60 —
SECTION 6
EXPLODED VIEWS
NOTE:
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
• Abbreviation
CND : Canadian model
HK : Hong Kong model
SP : Singapore model.
JE : Tourist model
The components identified by mark !
or dotted line with mark ! are critical
for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.

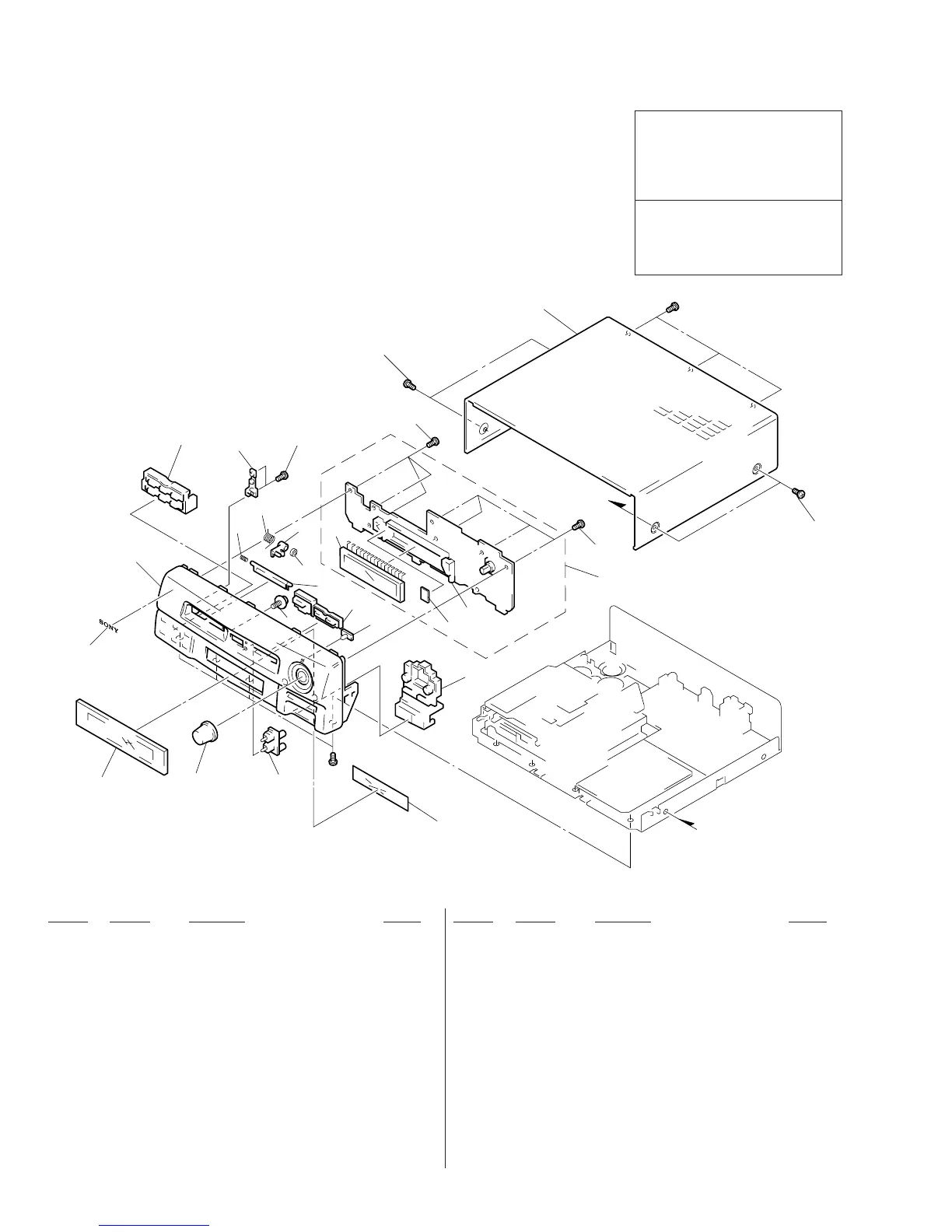

6-1. FRONT PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 4-977-668-01 WINDOW (FL)
2 4-979-353-01 FILTER (MD)
3 4-977-680-01 KNOB (JOG)
4 4-977-677-01 INDICATOR (DIGITAL)
5 4-977-667-01 PANEL, FRONT
6 4-962-708-01 EMBLEM (4-A), SONY
7 X-4946-465-1 BUTTON (PLAY) ASSY
8 4-977-676-01 INDICATOR (JOG)
9 4-977-672-01 BUTTON (EJECT)
10 4-933-134-01 SCREW (+PTPWH M2.6X6)
11 4-977-669-01 LID (CARTRIDGE)
12 4-978-356-01 SPRING (LID), TORSION
13 3-681-678-00 WASHER, SLIT
14 4-969-213-01 LEVER (LID)
15 4-972-652-01 SPRING, TORSION
16 X-4945-295-1 BRACKET (LEVER) ASSY
17 4-977-671-01 BUTTON (MODE)
18 4-951-620-01 SCREW (2.6X8), +BVTP
* 19 A-4699-001-A PANEL BOARD, COMPLETE (SP,HK,JE)
* 19 A-4699-005-A PANEL BOARD, COMPLETE (US,CND)
* 20 4-977-695-01 HOLDER (FL)
21 3-363-099-01 SCREW (CASE 3 TP2)
* 22 4-970-927-61 CASE
* 23 4-955-901-01 CUSHION (FL)
FL701 1-517-461-11 INDICATOR TUBE, FLUORESCENT
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17 18
18
21
23
20
#7
18
19
21
22
FL
701
1
#11
