Sony MDS-M9 - Chassis Section

— 61 —

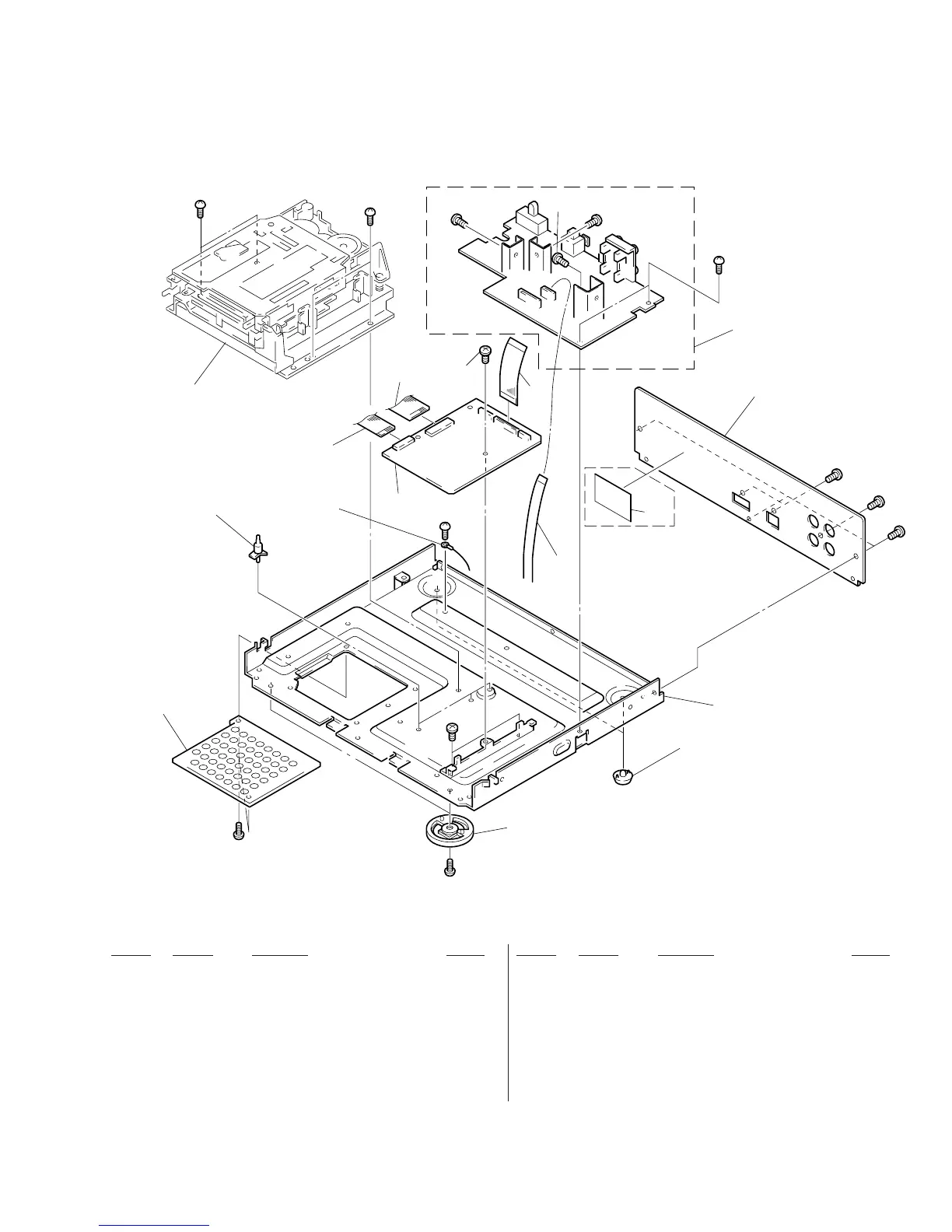

6-2. CHASSIS SECTION
52
53
54
55
56
58
60
61
MDM-2B
#7
#7
#7
#7
#7
#9
#9
#9
#9
#9
#9
#9
not supplied
not supplied
59
57
#9
not supplied
51
62
(US, CND)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 4-977-699-11 LEG (F)
52 4-965-822-01 FOOT
* 53 4-977-679-21 PANEL, BACK (SP,HK,JE)
* 53 4-977-679-31 PANEL, BACK (US,CND)
* 54 A-4699-002-A DIGITAL BOARD, COMPLETE (SP,HK,JE)
* 54 A-4699-006-A DIGITAL BOARD, COMPLETE (US,CND)
55 1-776-417-11 WIRE (FLAT TYPE) (18 CORE)
56 1-776-416-11 WIRE (FLAT TYPE) (30 CORE)
57 1-776-168-11 WIRE (FLAT TYPE) (21 CORE)
* 58 A-4699-000-A POWER BOARD, COMPLETE (SP,HK,JE)
* 58 A-4699-004-A POWER BOARD, COMPLETE (US,CND)
59 1-775-925-11 WIRE (FLAT TYPE) (10 CORE)
60 4-962-641-01 SCREW (+PSWTT 3X8)
61 4-969-237-01 LID (CHASSIS)
62 3-703-044-26 LABEL, CAUTION (US,CND)
