Sony MDS-SD1 - 3 Disassembly; Glass ASSY; Front Panel

– 16 –
SECTION 3
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.

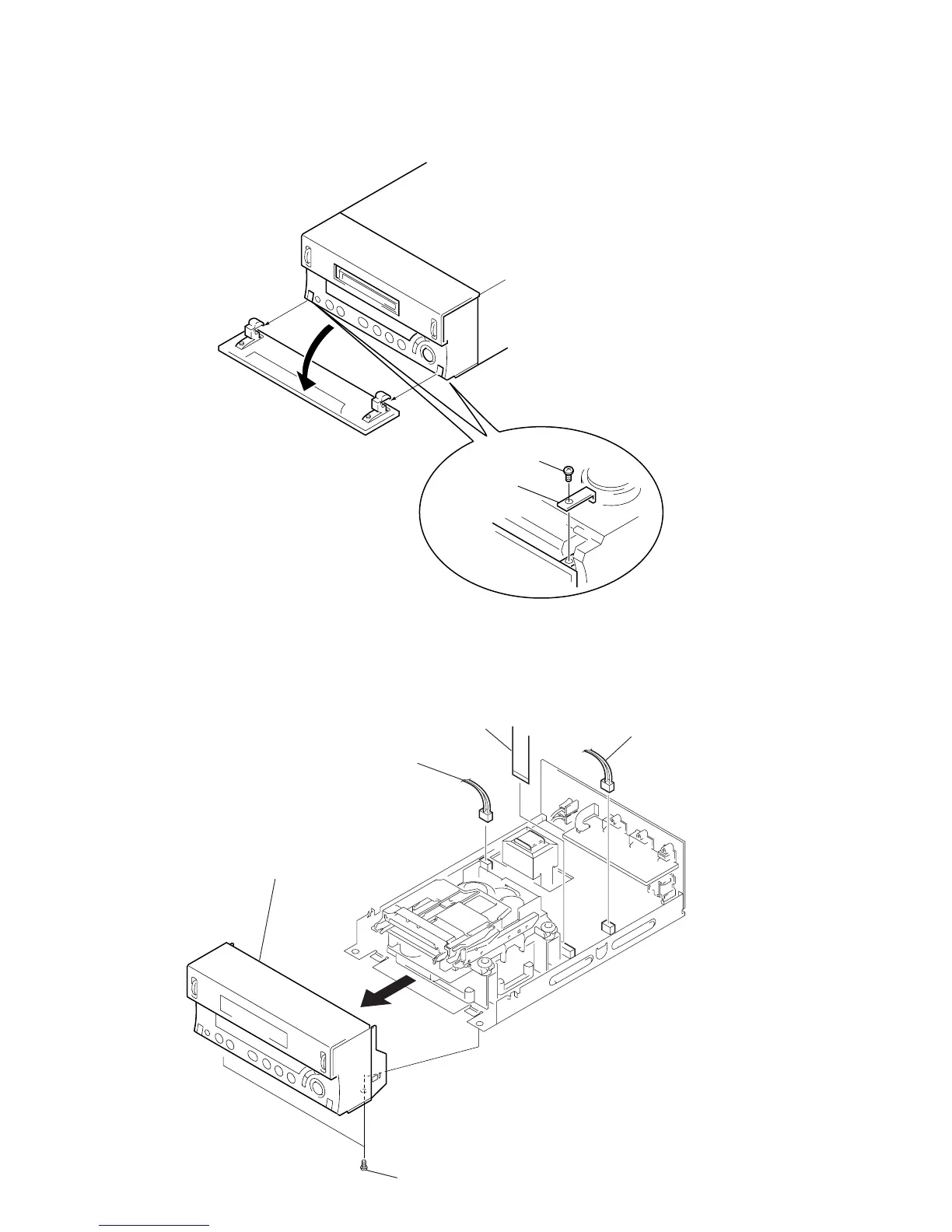

3-1. GLASS ASSY
3-2. FRONT PANEL
4
4
3
(Bottom side)
2 Bracket (shaft)
1 Screw (PTP2.6x6)
1 Two screws (BVTP3x8)
2 Connector (CN792
)
4 Connector (CN793)
5 Front panel
3 Flat type wire (13core)
(CN791)
