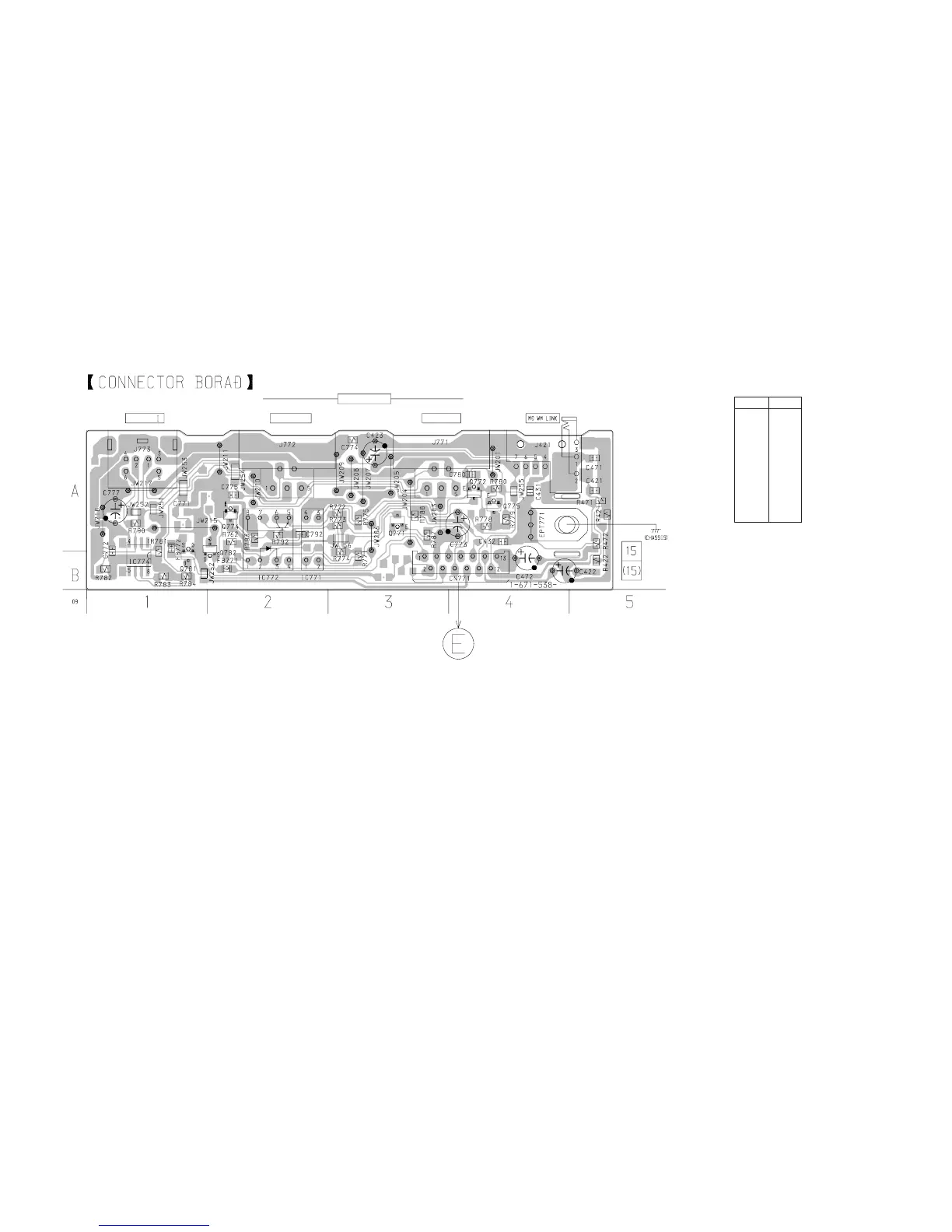

6-12. PRINTED WIRING BOARD – CONNECTOR SECTION –
• See page 32 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D781 A-1
D782 A-2
IC771 B-2
IC772 B-2
IC774 B-1
Q771 A-3
Q772 A-4
Q774 A-2
Q775 A-4
Q781 B-1
Q782 A-2
Q783 B-3
(Page 49)
CONTROL
TO HCD-SD1
SYSTEM CONTROL
TO TC-SD1
