Sony MDS-SD1 - Printed Wiring Board - Panel Section

MDS-SD1
– 53 – – 54 –
D941 C-7
D942 C-6
D943 C-3
D944 C-3
D945 C-4
D946 C-5
IC901 B-5
Q921 B-3
Q941 C-7
Q942 C-6

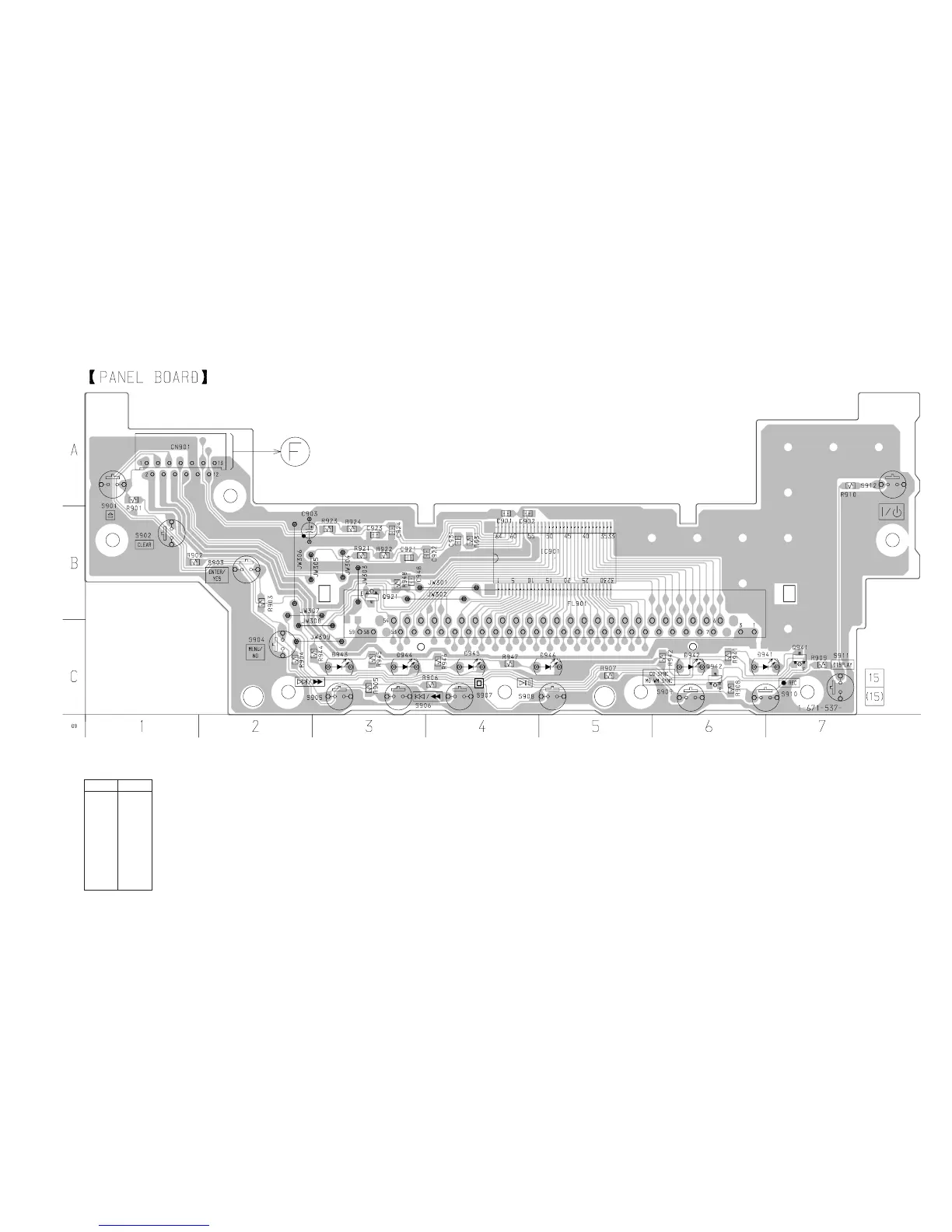

6-10. PRINTED WIRING BOARD – PANEL SECTION –
• See page 32 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
(Page 49)
