Sony MDS-SD1 - Mechanism Section (MDM-5 A)

– 69 –

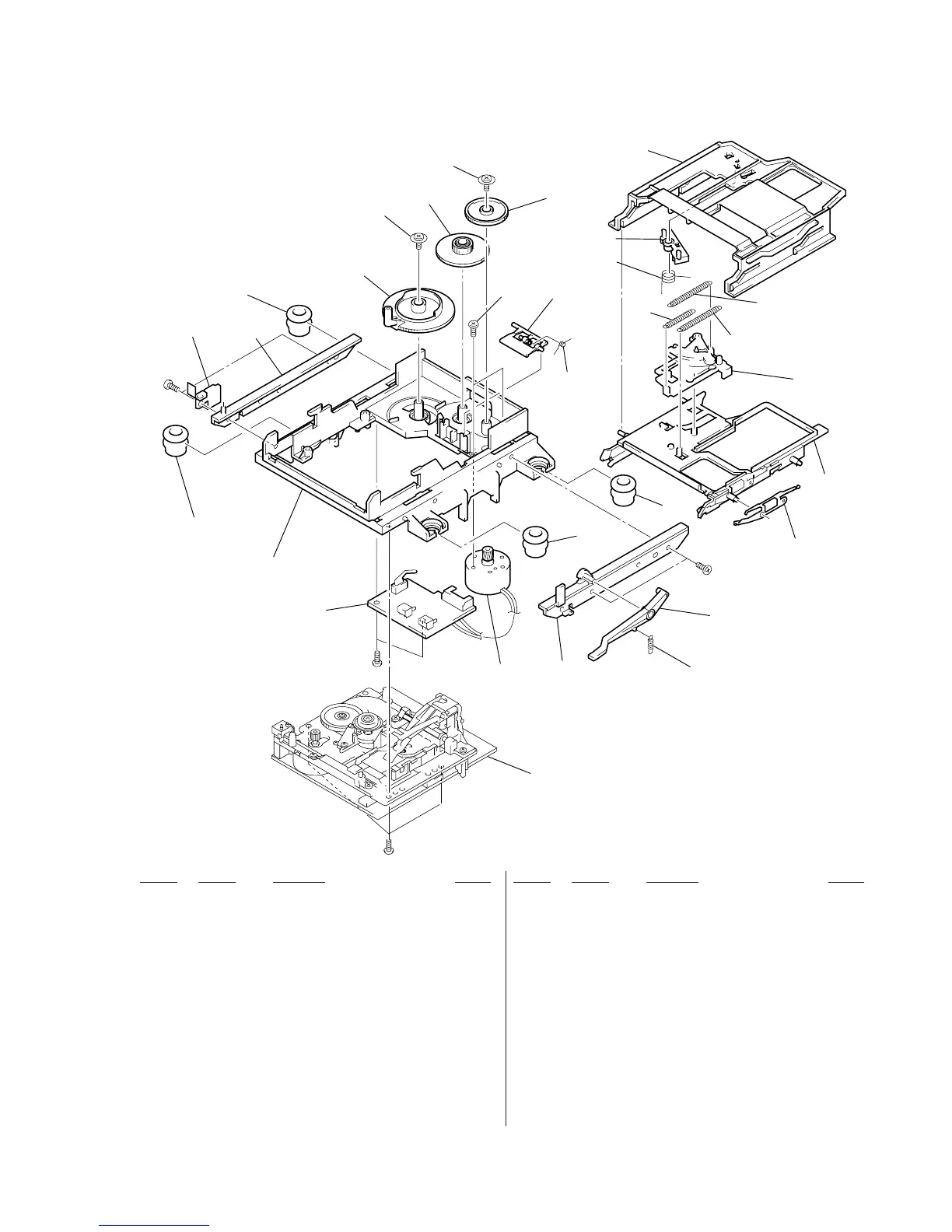

7-3. MECHANISM DECK SECTION (MDM-5A)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
215 4-996-227-01 LEVER (HEAD)
216 4-996-229-01 SPRING (HEAD LEVER), TORSION
217 4-996-212-01 LEVER (LIMITTER)
218 4-996-213-01 SPRING (LIMITTER), TORSION
219 4-996-214-01 SPRING (SLIDER), TENSION
220 4-996-216-01 SPRING (HOLDER), TENSION
221 4-210-396-01 SPRING (LOCK LEVER), TENSION
222 X-4949-246-1 SLIDER ASSY
223 X-4949-245-1 HOLDER ASSY
* 224 4-996-211-01 SLIDER (CAM)
225 4-998-763-24 SPRING (SHUTTER), LEAF
M103 X-4949-264-1 MOTOR ASSY, LOADING
* 201 1-671-115-21 SW BOARD
* 202 4-996-217-01 CHASSIS
203 4-996-223-11 INSULATOR (F)
* 204 4-996-218-01 BRACKET (GUIDE R)
205 4-996-277-01 SPRING (O/C), TENSION
206 4-996-226-01 LEVER (O/C)
207 4-999-347-01 INSULATOR (R)
* 208 4-996-225-01 BRACKET (GUIDE L)
209 4-988-466-21 SPRING (ELECTROSTATIC), LEAF
210 4-996-219-01 GEAR (CAM GEAR)
211 4-996-220-01 GEAR (A)
212 4-996-221-01 GEAR (B)
213 4-933-134-01 SCREW (+PTPWH M2.6X6)
214 4-996-224-11 SCREW (1.7X3), +PWH
#7
M103
#7
#7
#8
MBU-5A
201
202
203
203
204
205
206
207
207
208
209
210
211
212
213
213
214
215
216
217
218
219
220
221
222
223
225
224
