Sony MDS-SD1 - Slider (CAM); Base Unit and BD Board

– 17 –

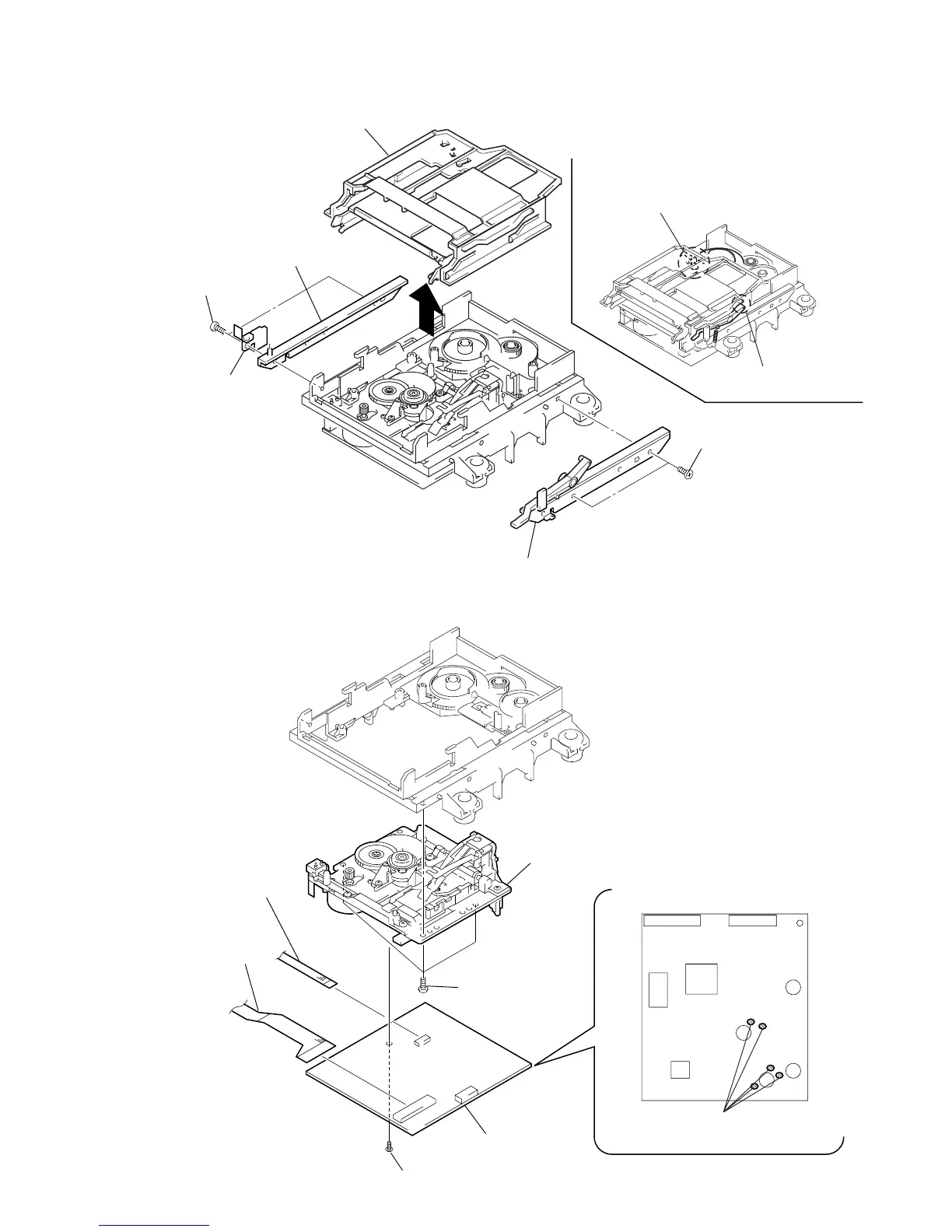

3-4. BASE UNIT AND BD BOARD
3-3. SLIDER (CAM)
1 Two screws (BTP2.6x6)
2 Bracket (Guide L)
3 Leaf spring
5 Bracket (Guide R)
6 Slider (Cam)
4 Two screws (BTP2.6x6)
Set the shaft of Lever (O/C) to
be at the position in the figure.
Set the shaft of Cam gear to
be at the position in the figure.
1 Three screws
(BTP2.6x6)
2 Base unit (MBU-5A)
3 Remove the solder (Five portion)
4 Screw (M1.7x4)
6 Flexible board
(CN101)
7 BD board
5 Flexible board
(CN104)
