Sony MDS-SD1 - Printed Wiring Board - Main Section

MDS-SD1
– 49 – – 50 –
• Semiconductor
Location

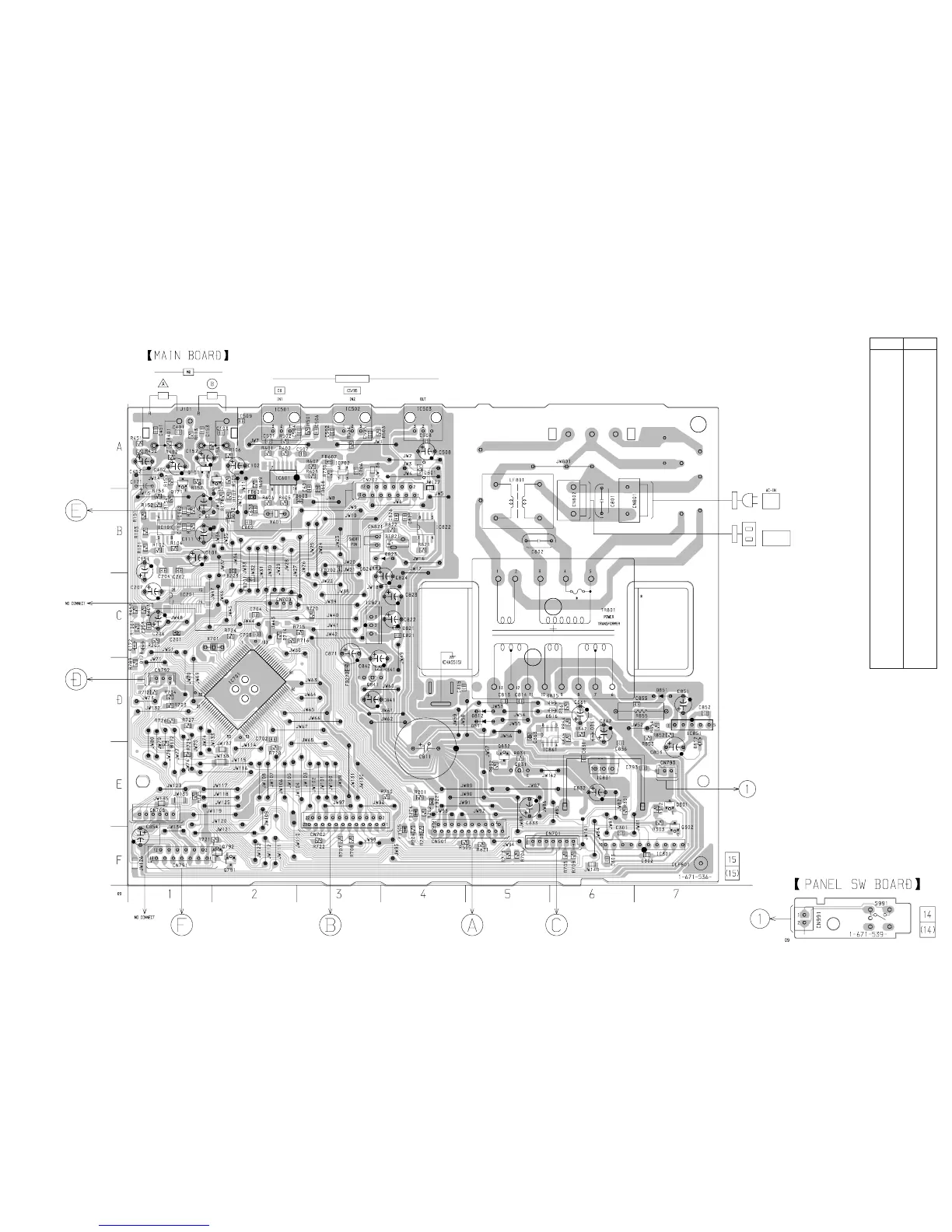

6-8. PRINTED WIRING BOARD – MAIN SECTION –
• See page 32 for Circuit Boards Location.
Ref. No. Location
D172 C-1
D173 C-1
D811 D-5
D812 D-5
D815 D-6
D816 D-6
D821 C-4
D823 B-4
D824 B-3
D831 E-6
D832 E-5
D833 E-6
D851 D-7
D852 D-7
D861 D-6
IC101 B-1
IC201 C-1
IC301 F-7
IC501 A-2
IC502 A-3
IC503 A-4
IC601 A-2
IC701 D-2
IC702 A-3
IC821 C-3
IC822 B-4
IC831 E-6
IC851 D-7
IC861 E-6
Q101 A-1
Q151 A-2
Q171 A-1
Q301 E-7
Q302 E-7
Q791 F-2
Q792 F-2
Q831 E-5
Q832 E-5
Q841 D-3
(Page 57)
(Page 60)
(Page 53) (Page 40) (Page 40) (Page 59)
IN
OUT
L
L
DIGITAL OPTICAL
EP801
NOT REPLACEABLE:
BUILT IN TRANSFORMER
TO
HCD-SD1
AC OUTLET
UN SWITCHED
200W MAX
TC-SD1
ONLY
