Sony MDS-SD1 - Schematic Diagram - BD (2;2) Section

MDS-SD1
– 43 –
– 44 –

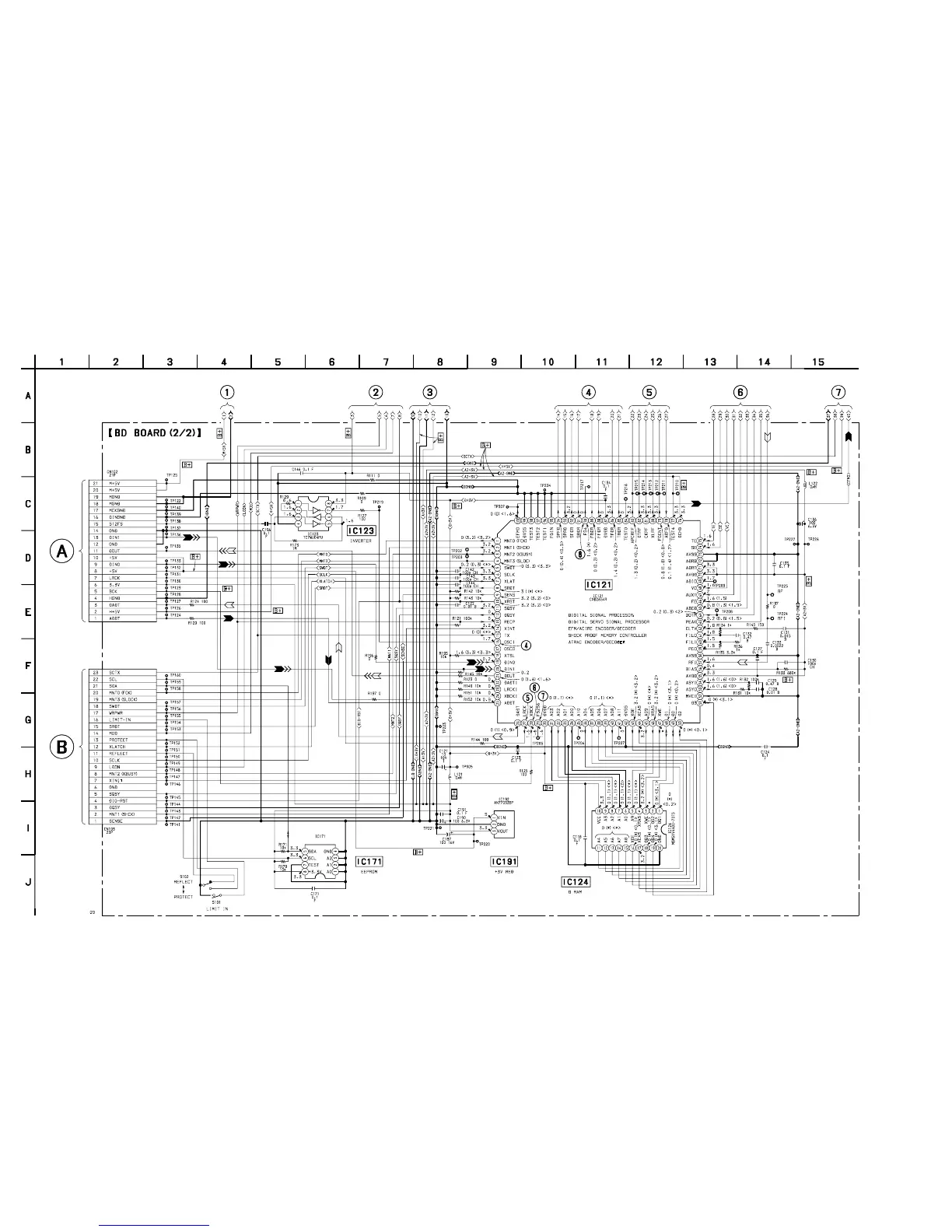

6-5. SCHEMATIC DIAGRAM – BD (2/2) SECTION –
• See page 38 for Waveforms.
• See page 39 for Printed Wiring Board.
(Page 41)
(Page 41)
(Page 41)
(Page 42)
(Page 42)
(Page 42)
(Page 42)
(Page 45)
(Page 45)
S-24CO2AFJA-TB
