FORCED RESET
The system microprocessor can be reset in the following procedure.
Use these procedure when the unit cannot be operated normally due to the overrunning of the microprocessor, etc.
Procedure :
Short-circuit jumper wire of JW40 and JW41 (RESET).

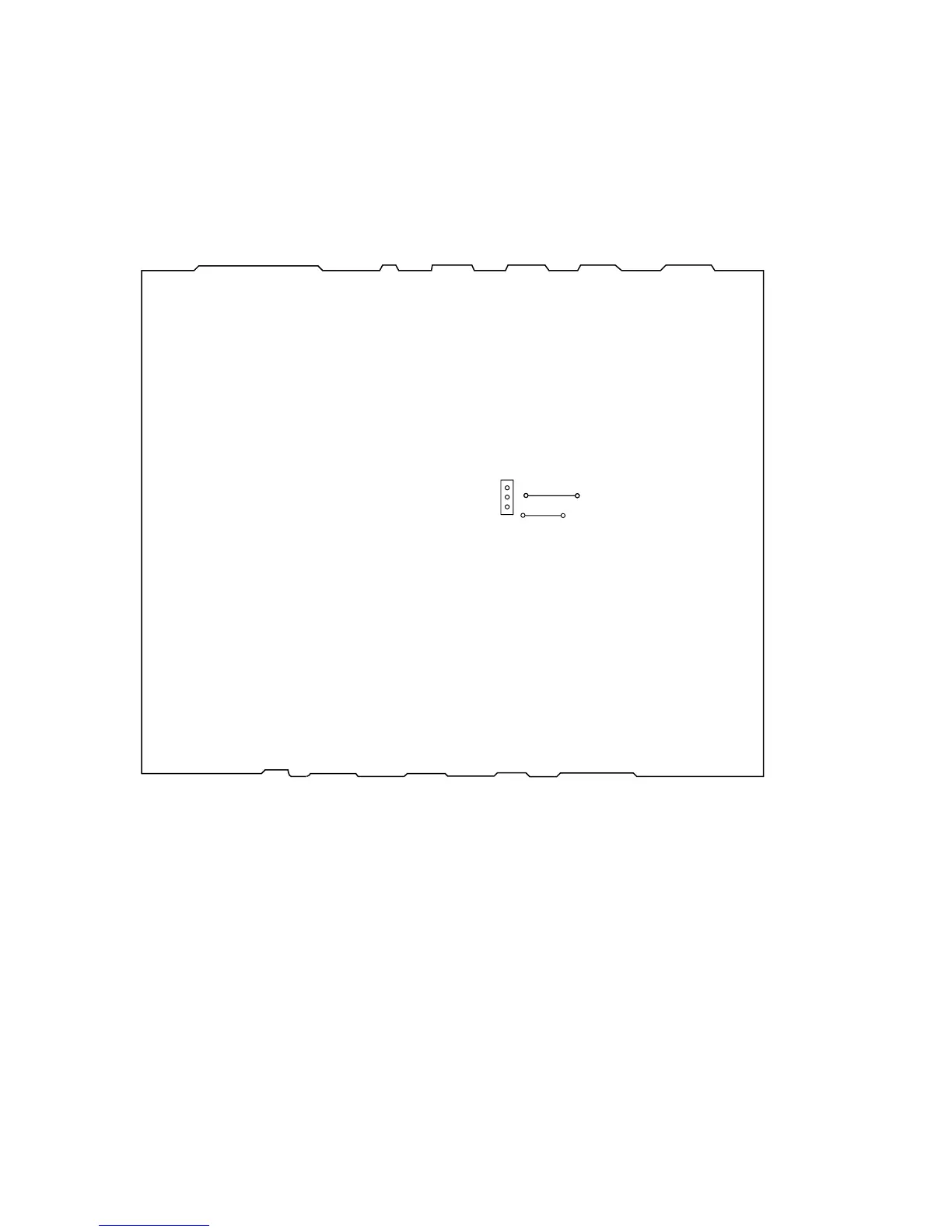

[MAIN BOARD] (Component Side)
1
3
JW40
IC821
JW42
