Sony MXD-D4 - Component Disassembly; Front Panel and MD Mechanism Removal

19

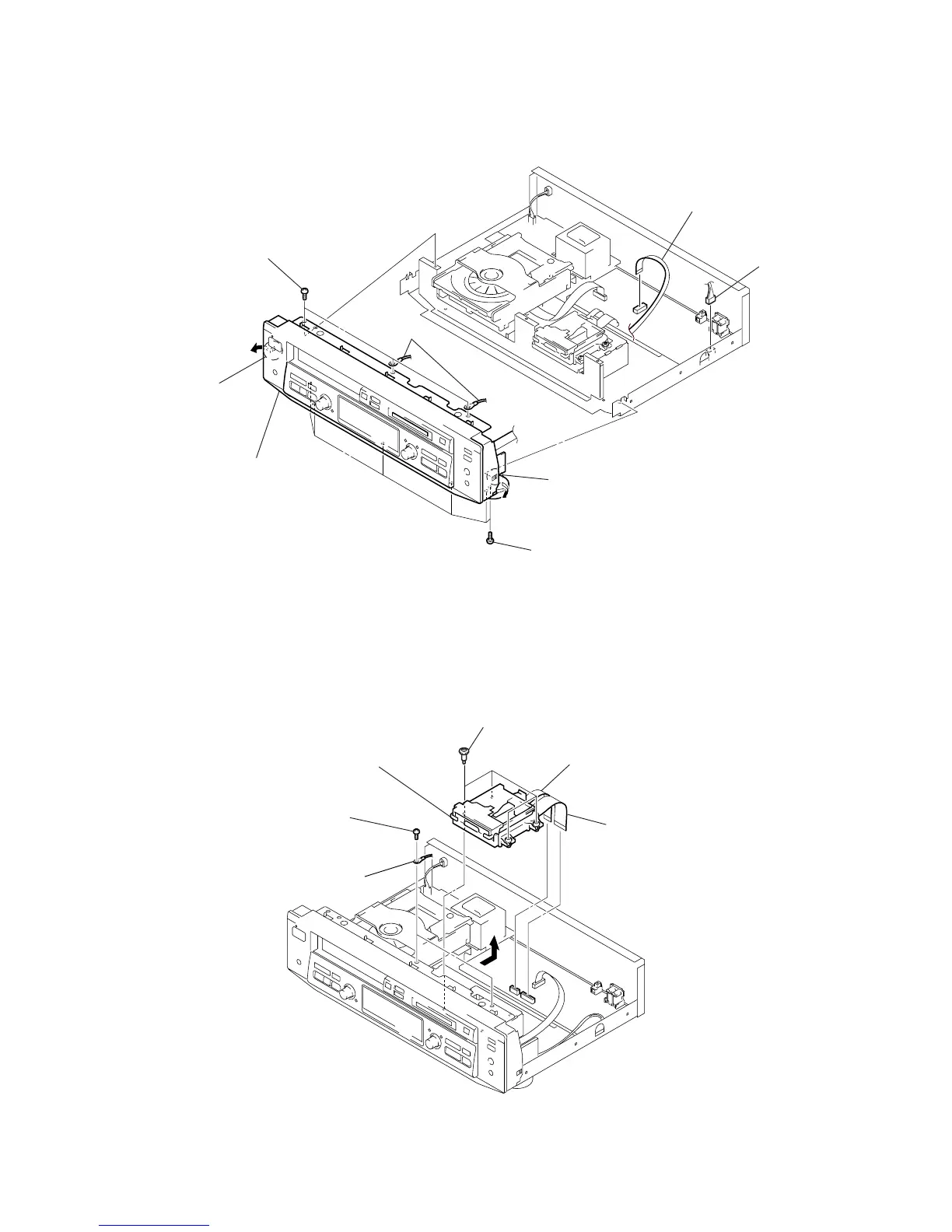

FRONT PANEL ASS’Y
MD MECHANISM DECK SECTION (MDM-7X2A)
1 wire (flat type) (18 core)
(CN305)
2 connector
(CN300)
3 six screws
(BVTT3
× 6)
7 front panel ass’y
4 three screws
(BVTT3
× 6)
5 two lugs
6 claw
6 claw
3 two lugs
5 MD mechanism deck
(MDM-7X2A)
4 four screws
(BVTTWH M3)
1 wire (flat type) (27core
)
(CN304)
2 two screws
( BVTT 3
× 6)
1 wire (flat type) (17core)
(CN303)
