Sony NAS-E35HD - FL Block; DISPLAY Board

NAS-E35HD/SS-CE35HD
11

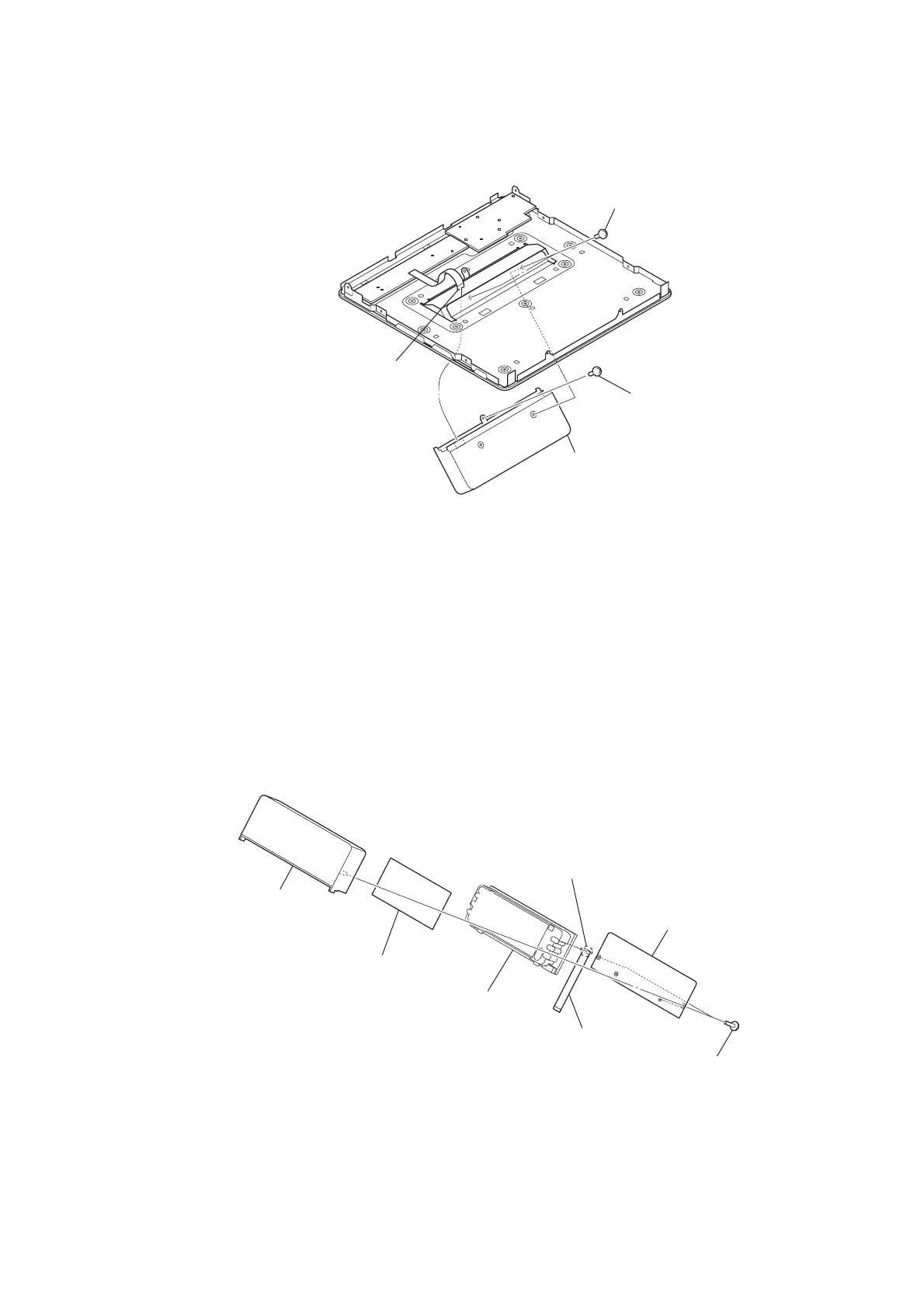

3-6. FL BLOCK
Note: This illustration is seeing of top panel block from the inside.
3-7. DISPLAY BOARD

two screws
(BVTP3
×
6)

FL block

flexible flat cable (9 core)
(CNP404)

screw
(BVTP3
×
6)

two screws
(BVTP2.6)

cover (FL)

case (FL) assy

filter (FL)

Remove solders.

flexible flat cable (9 core)

DISPLAY board
