Sony NAS-E35HD - Base Unit and Speaker Exploded Views

78
NAS-E35HD/SS-CE35HD

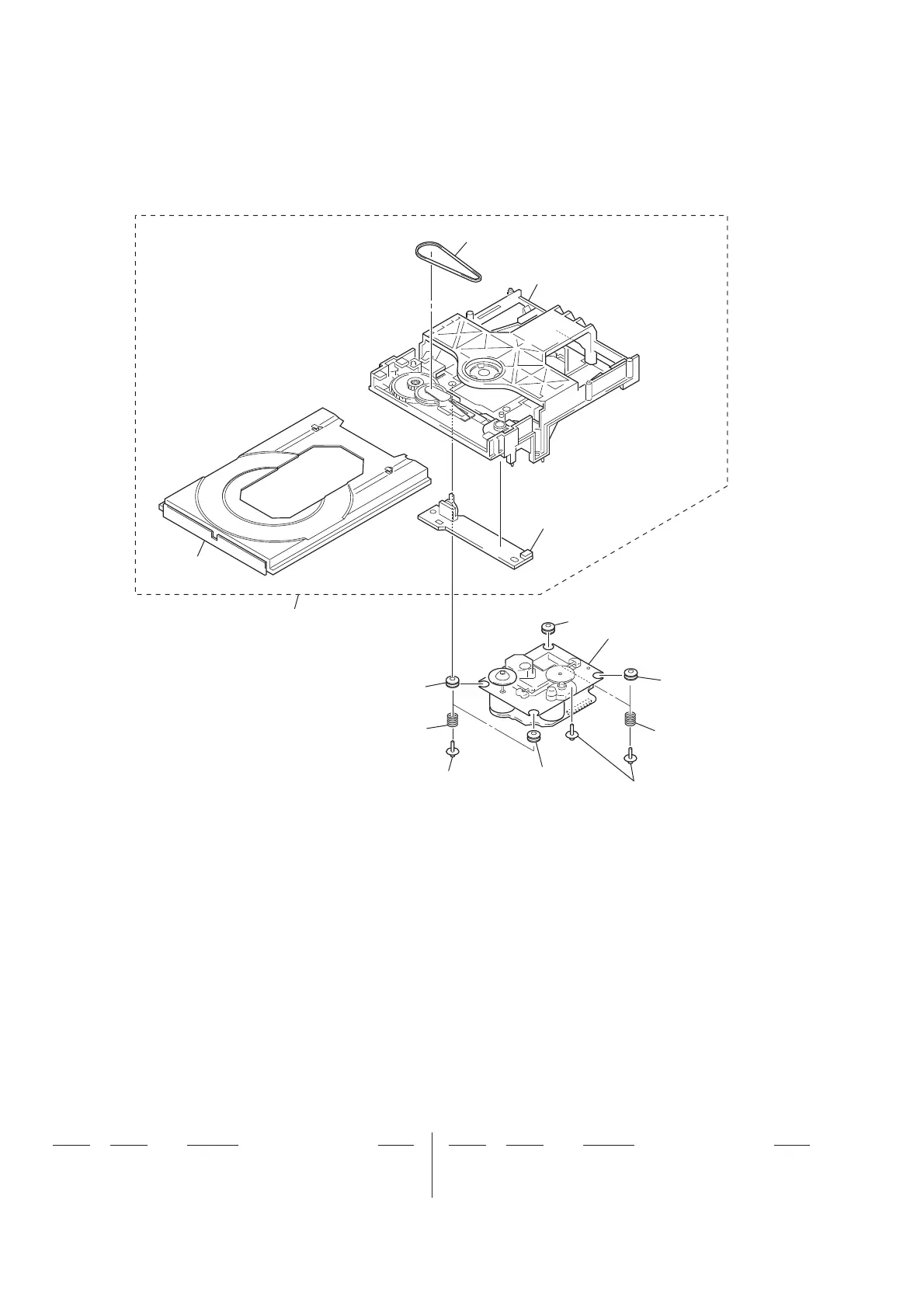

7-6. LOADING MECHANISM SECTION
251 A-1242-967-A LOADING (BK) ASSY
252 3-080-478-01 BELT
253 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
254 4-227-045-41 SPRING (INSULATOR)
255 4-229-005-41 INSULATOR
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
251
252
not supplied
(MOTOR board)
not supplied
not supplied
base unit section
255
255
253
255
253
255
254
254
