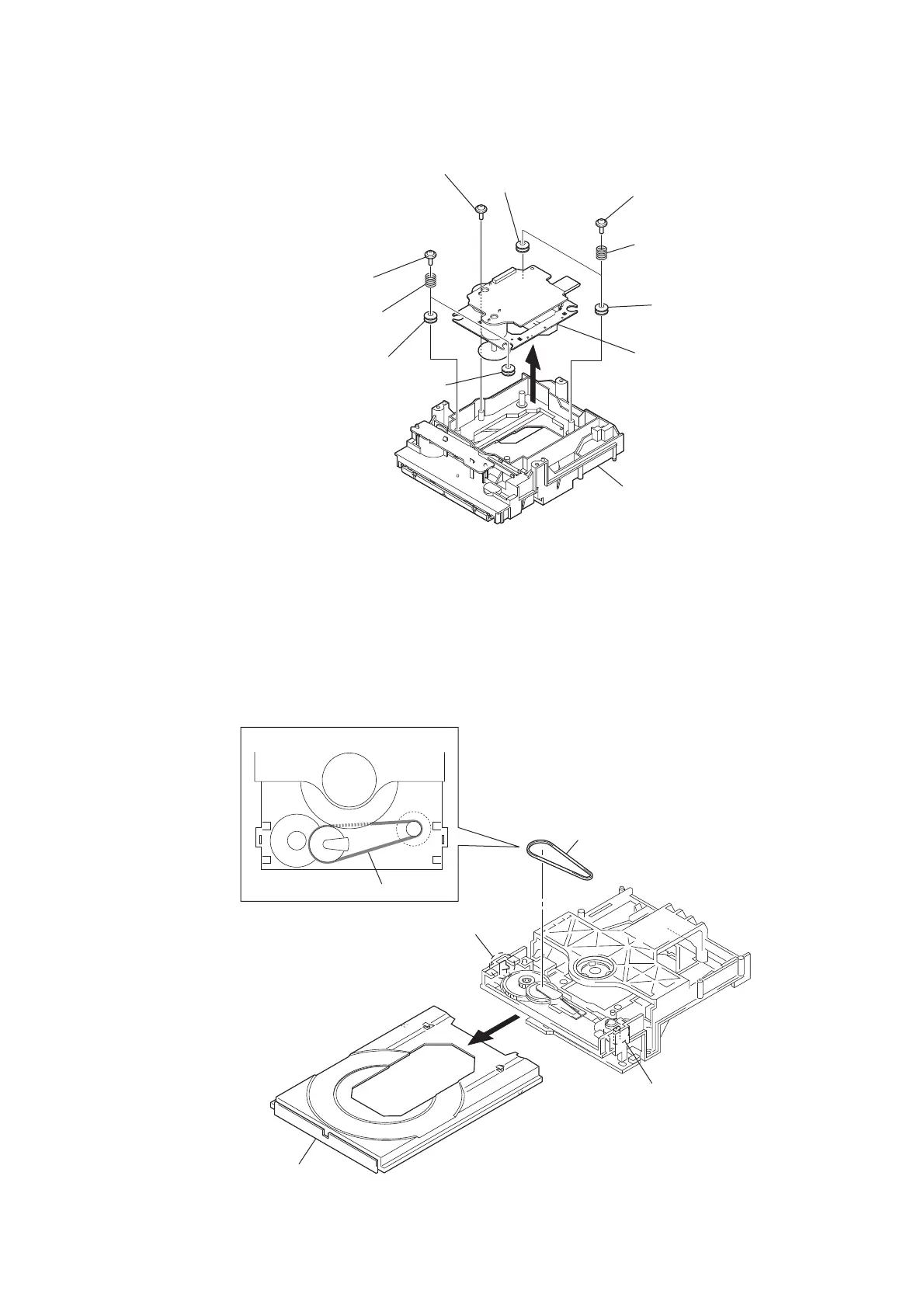

3-13. BASE UNIT
3-14. BELT
 insulator
 insulator
 base unit
 insulator
 insulator
 two springs
(insulator)
 two floating screws
 two floating screws
 floating screw

loading (BK) assy
– Bottom view –
 two springs (insulator)
 belt
 claw
 claw
 tray (AU)

belt
position of belt
