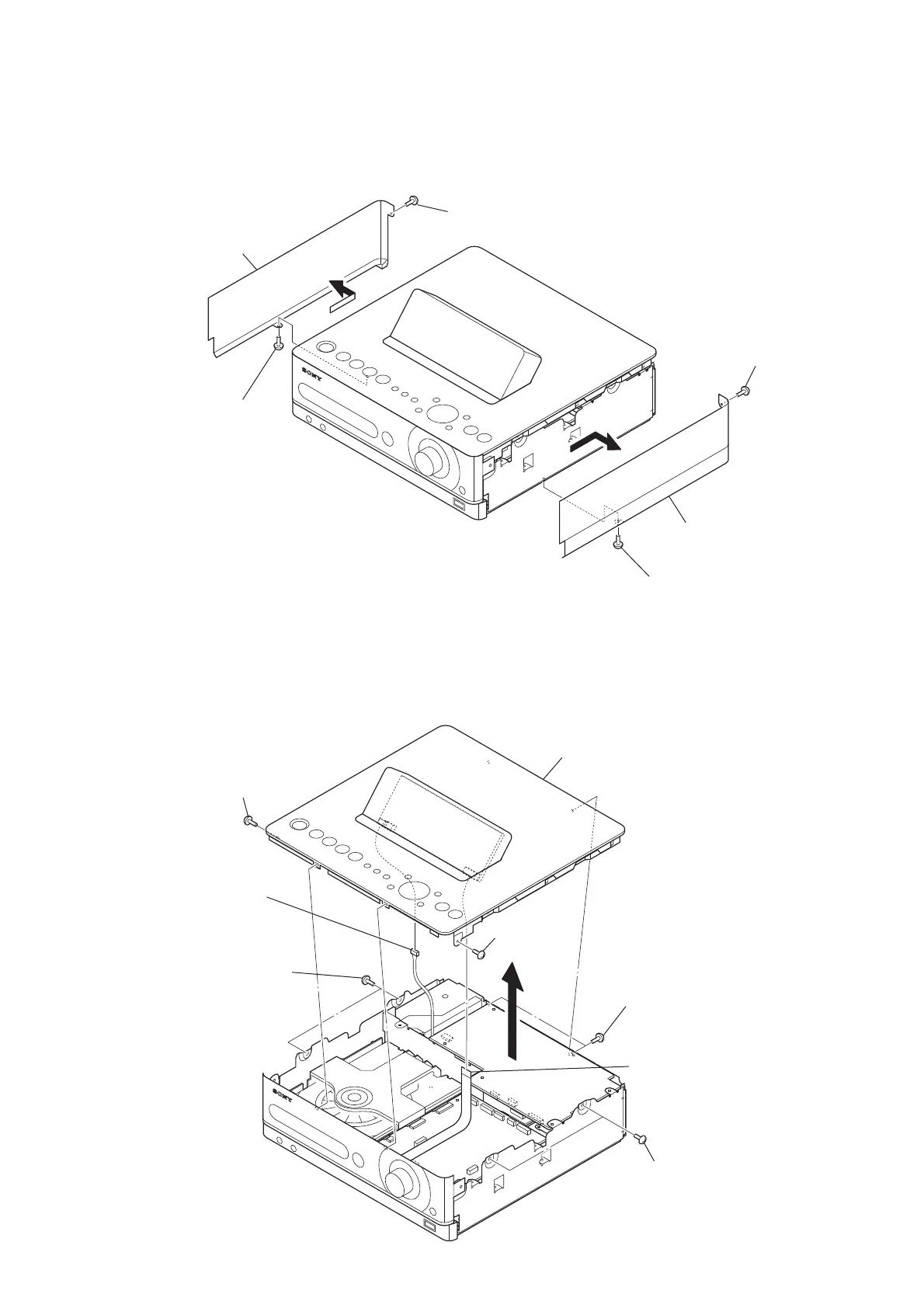

3-2. PANEL (SIDE L/R)

screw
(BVTP3
×
6)

panel (side L)

screw
(BVTP3
×
8)

screw
(BVTP3
×
8)

panel (side R)

screw
(BVTP3
×
6)
3-3. TOP PANEL BLOCK

screw
(BVTP3
×
6)

screw
(BVTP3
×
6)


two screws
(BVTP3
×
6)

two screws
(BVTP3
×
6)

two screws
(BVTP3
×
6)

connector
(CN401)

flexible flat cable (11 core)
(CNP402)

top panel block
