73
NAS-E35HD/SS-CE35HD
SECTION 7
EXPLODED VIEWS
1 X-2189-000-1 PANEL (FRONT) ASSY (AEP, UK)
1 X-2190-790-1 PANEL (FRONT) ASSY (RU, E51, MX, AUS)
2 4-233-372-02 FOOT (FELT)
3 2-633-134-01 SCREW (B2.6), (+) BV TAPPING
4 3-280-187-01 PANEL (SIDE L)
5 3-280-188-01 PANEL (SIDE R)
6 3-280-182-01 KNOB (VOLUME)
7 2-681-451-01 SHEET (RM)
#1 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color
• Abbreviation
AUS : Australian model
E51 : Chilean and Peruvian models
MX : Mexican model
RU : Russian model
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.

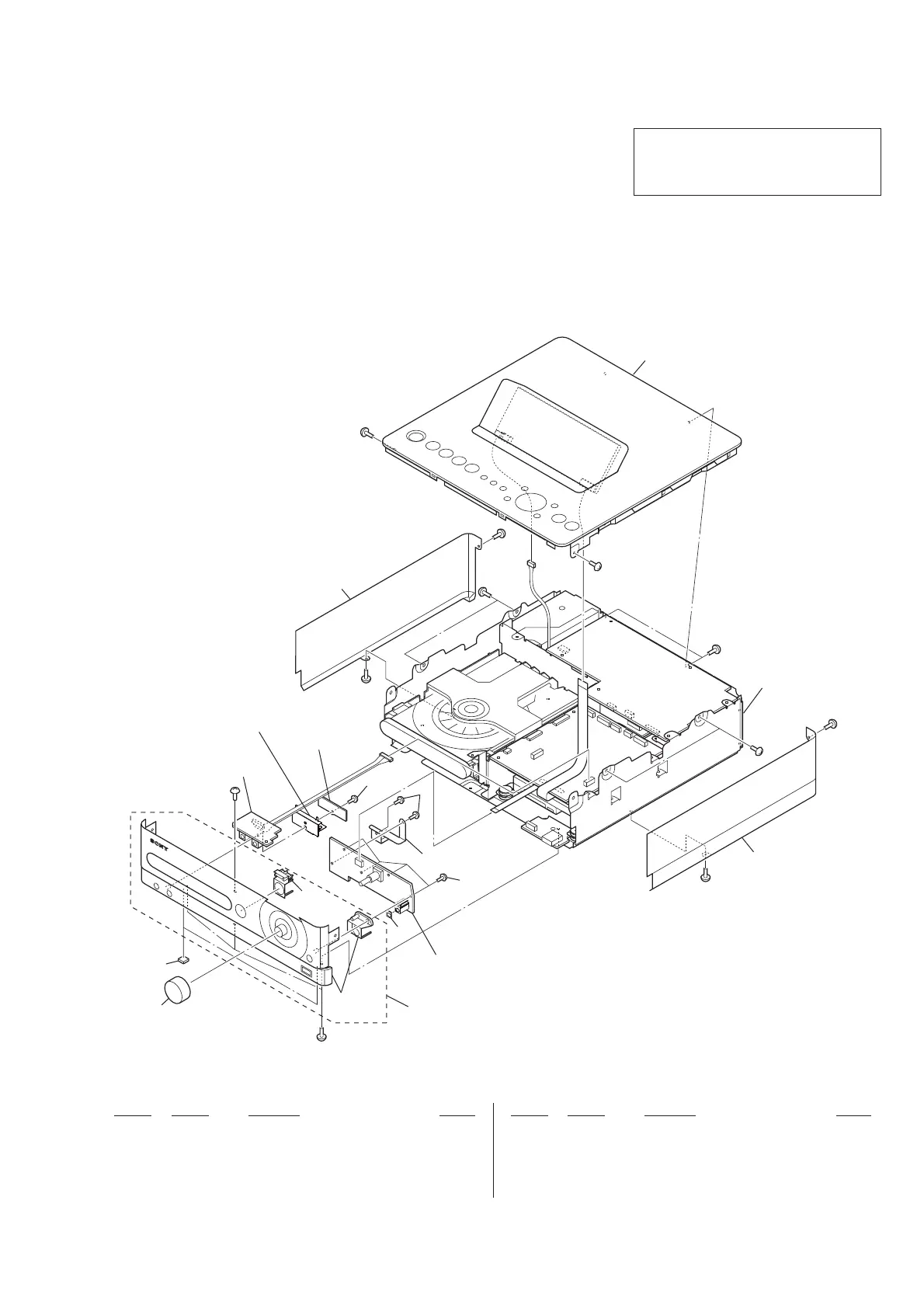

7-1. PANEL SECTION
not supplied
#2
top panel section
#1
#1
#1
#1
#2
#1
#1
#1
#1
not supplied
not
supplied
not
supplied
not supplied
(HP JACK board)
not supplied
(KEY (FRONT) board)
4
3
3
3
7
2
6
1
5
main section
#1
not supplied
(HOLD board)
