Sony NAS-E35HD - USB MICOM Board; HDD Assy

NAS-E35HD/SS-CE35HD
14

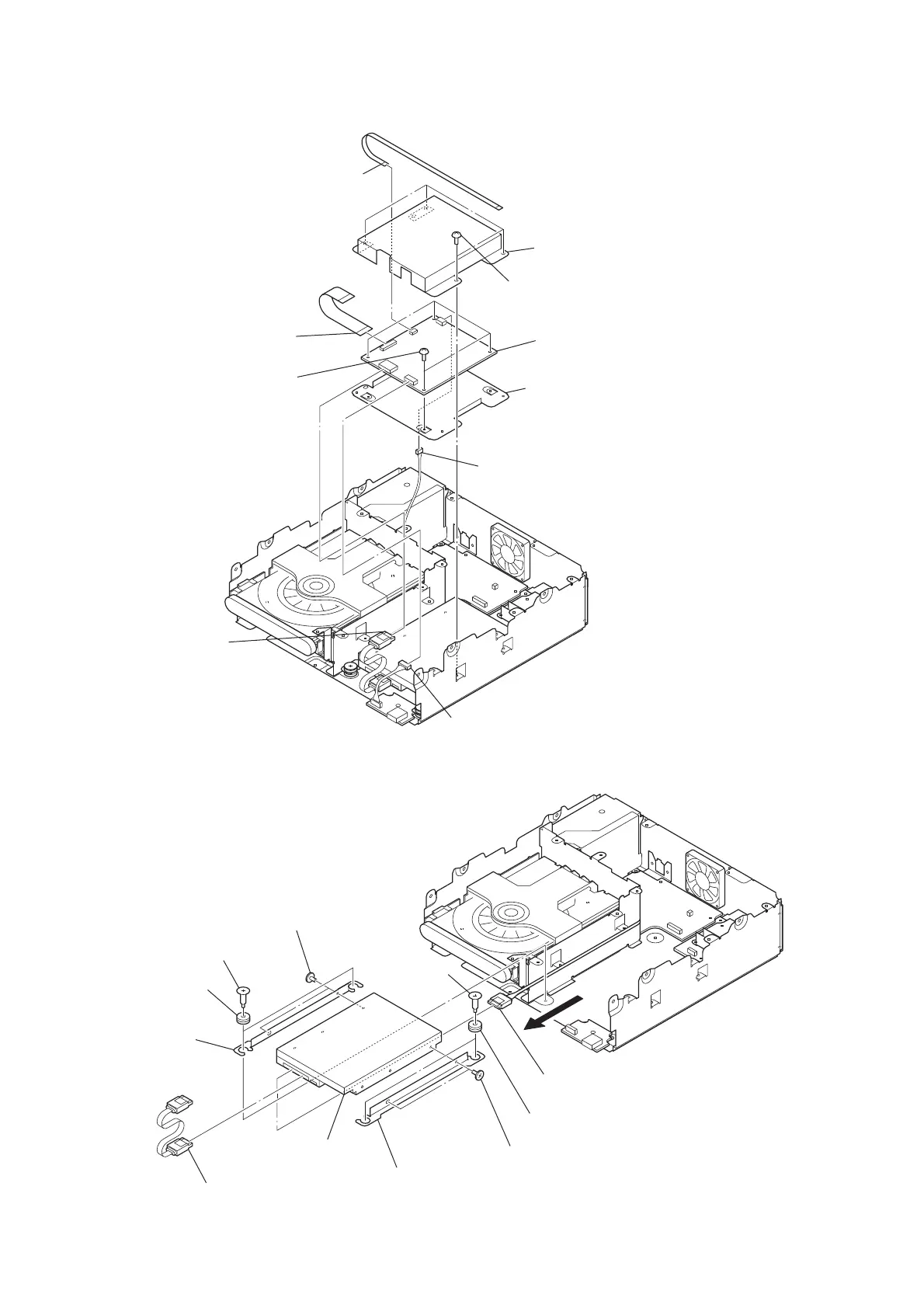

3-11. USB MICOM BOARD
3-12. HDD ASSY

shield plate (USB MICOM PWB)

flexible flat cable (5 core)
(CN2)

four screws
(BVTP3
×
6)

flexible flat cable (17 core)
(CN3)

four screws
(BVTP3
×
6)

chassis (USB MICOM PWB)

USB MICOM board

connector (CN7)

connector (CN6)

connector (CN8)

harness

two dampers

two dampers

two HDD damper screws

two HDD
damper screws

two screws
(6-32UNCX5)

two screws
(6-32UNCX5)


harness

bracket (HDD L)

bracket (HDD R)

HDD assy
