NAS-E35HD/SS-CE35HD
13

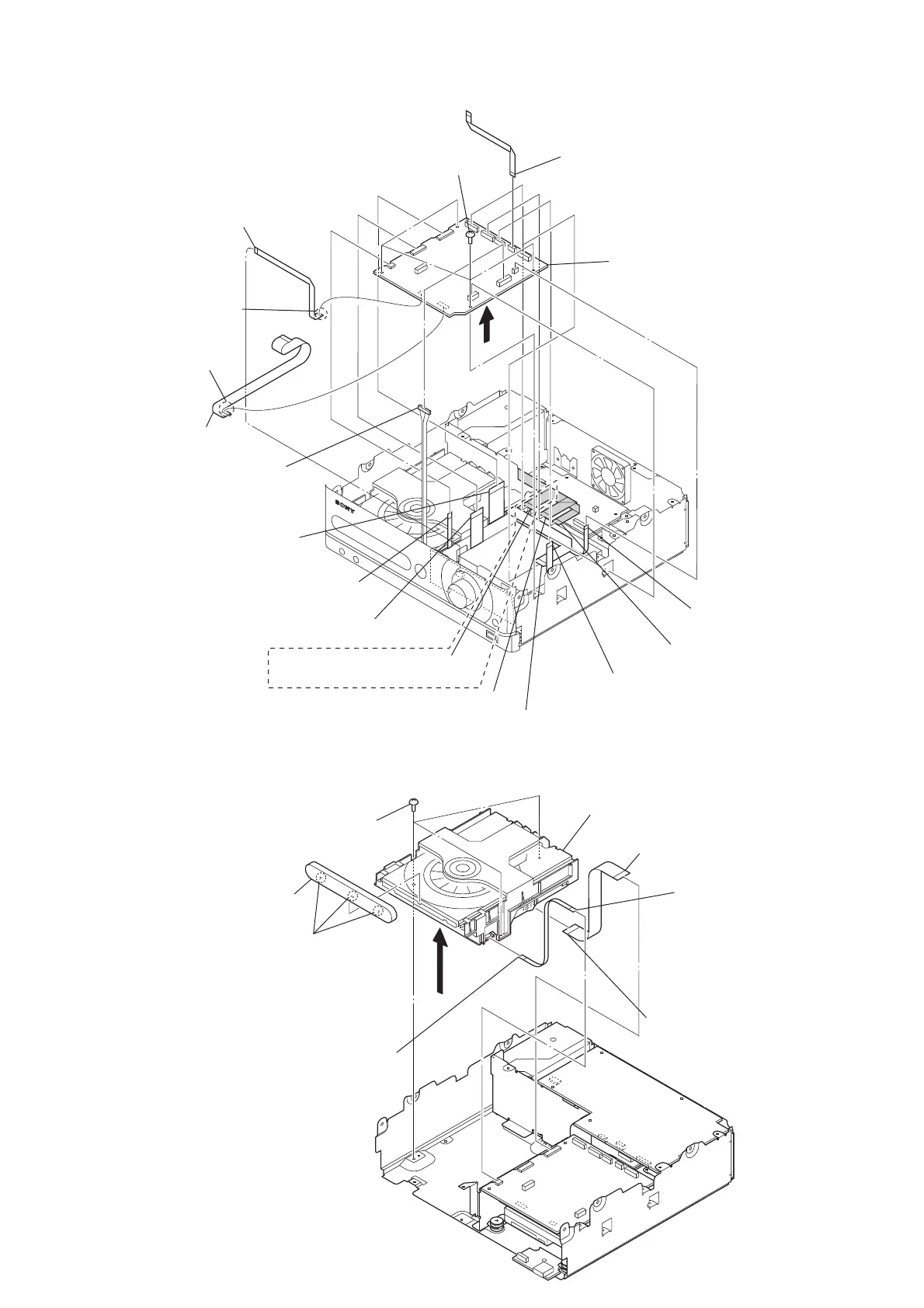

3-9. MAIN BOARD
3-10. CD MECHANISM BLOCK
RE
four screws
(BVTP3
×
6)
RT
flexible flat cable (5 core)
(CNP601)
RI
flexible flat cable
(11 core)
RK
Remove the solder.
RH
Remove the solder.
RL
MAIN board
(with flexible flat cable (11 core/5core))

flexible flat cable (5 core)
(CNP806)

flexible flat cable (17 core)
(CNP805)

flexible flat cable (19 core)
(CNP804)

flexible flat cable (11 core)
(CNP802)
(UK)

flexible flat cable (11 core)
(CNP807)

flexible flat cable
(11 core) (CNP801: AEP, UK models)/
(7 core) (CNP808: Russian, Chilean, Peruvian, Mexican, Australian models)

flexible flat cable (5 core)
(CNP302)

flexible flat cable (11 core)
(CNP803)
RB
flexible flat cable (7 core)
(CNP301)

connector (CN303)
RG

flexible flat cable (5 core)
(CNP810)

three screws
(BVTP3
×
6)

flexible flat cable (5 core)
(MOTOR board: CN001)

flexible flat cable (5 core)
(MAIN board: CNP806)

flexible flat cable (19 core)
(MAIN board: CNP804)

flexible flat cable (19 core)
(CD board: CN101)

CD mechanism block

three claws


ornamental plate (CD tray)
