Sony PVM-9L1 - Adjustment of PAL Mode; PAL Composite Input; PAL Y;C Input

2-15
PVM-9L1
2-18. Adjustment of PAL Mode
2-18-1. PAL Composite Input
Input PAL 75% color bar signal.

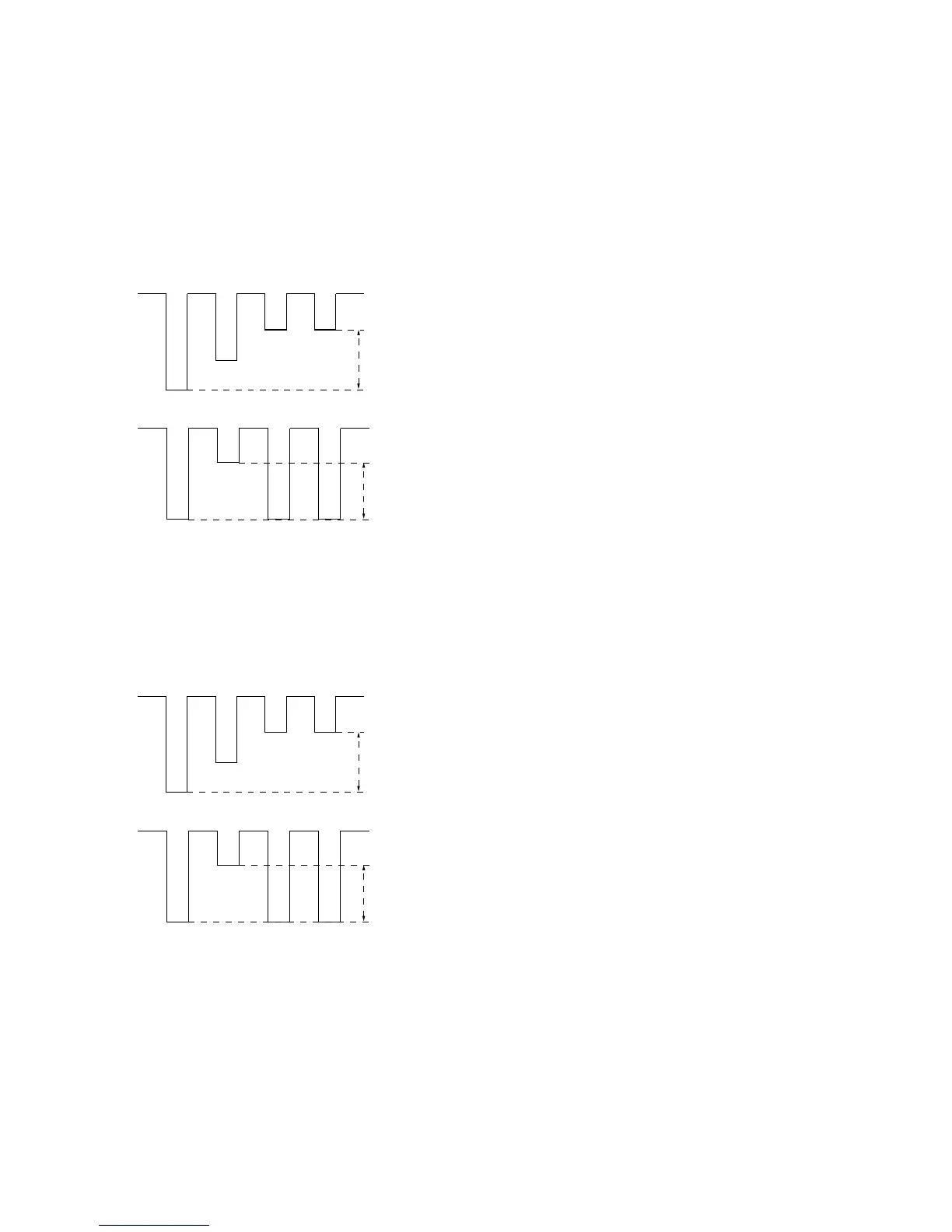

1. Adjust SUB CHROMA so that CN301-pin1 (JL301)
waveform A and D fall on same level.
2-18-2. PAL Y/C Input
Input PAL 75% color bar signal.
1. Adjust SUB CHROMA so that CN301-pin1 (JL301)
waveform A from D fall on same level.
Less than 800 mV
Target; 0 mV
ABCD
Less than 800 mV
Target; 0 mV
ABCD
Less than 800 mV
Target; 0 mV
ABCD
Less than 800 mV
Target; 0 mV
ABCD
