Sony PVM-9L1 - C Board and Deflection Yoke; Bottom and a Board

1-4
PVM-9L1

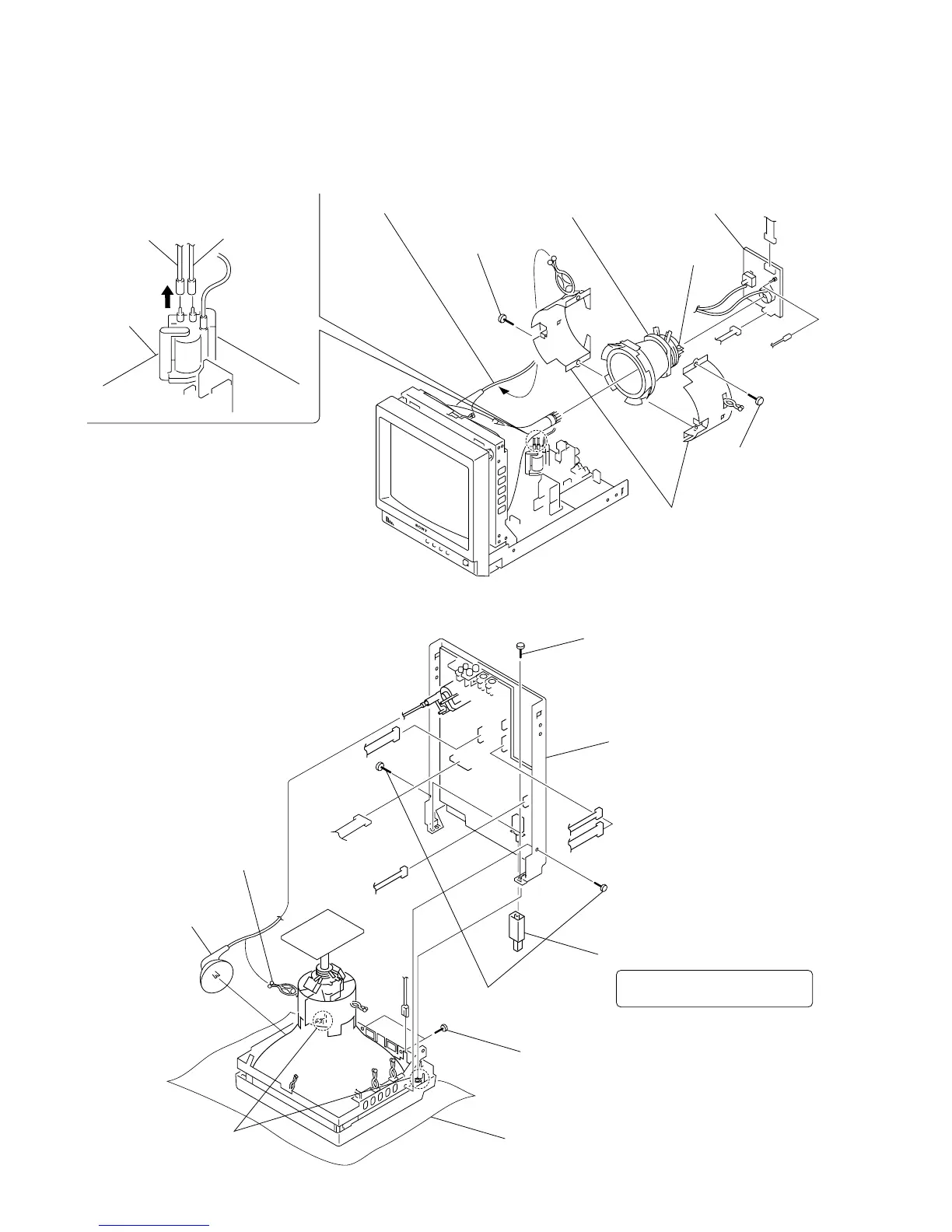

1-3-5. C Board and Deflection Yoke
. Remove the rear cover assembly. (Refer to 1-3-3.)
1-3-6. Bottom and A Board
. Remove the rear cover assembly. (Refer to 1-3-3.)
3 Focus2 Screen
A board
CN703
CN702
CN701
4 C board9 Deflection yoke
5 Screw
(+BVTT 3 x 6)
6 Screw
(+BVTT 3 x 6)
7 Two DY shield assemblies
8 Loosen the screw.
1 Remove the harness.
2 Anode cap
8 Bottom, A board
1 Remove the harness.
3 Two screws
(+K M3 x 6)
5 Two screws
(+KTP M3 x 8)
4 Two screws
(+BVTP 3 x 12)
7 Power switch button
Note : Be careful not to damage
the power switch button.
6 Two positioning juts
CN802
CN801
CN102
CN301
CN3501
Cushion
