Sony RDR-VX521 - Page 122

122

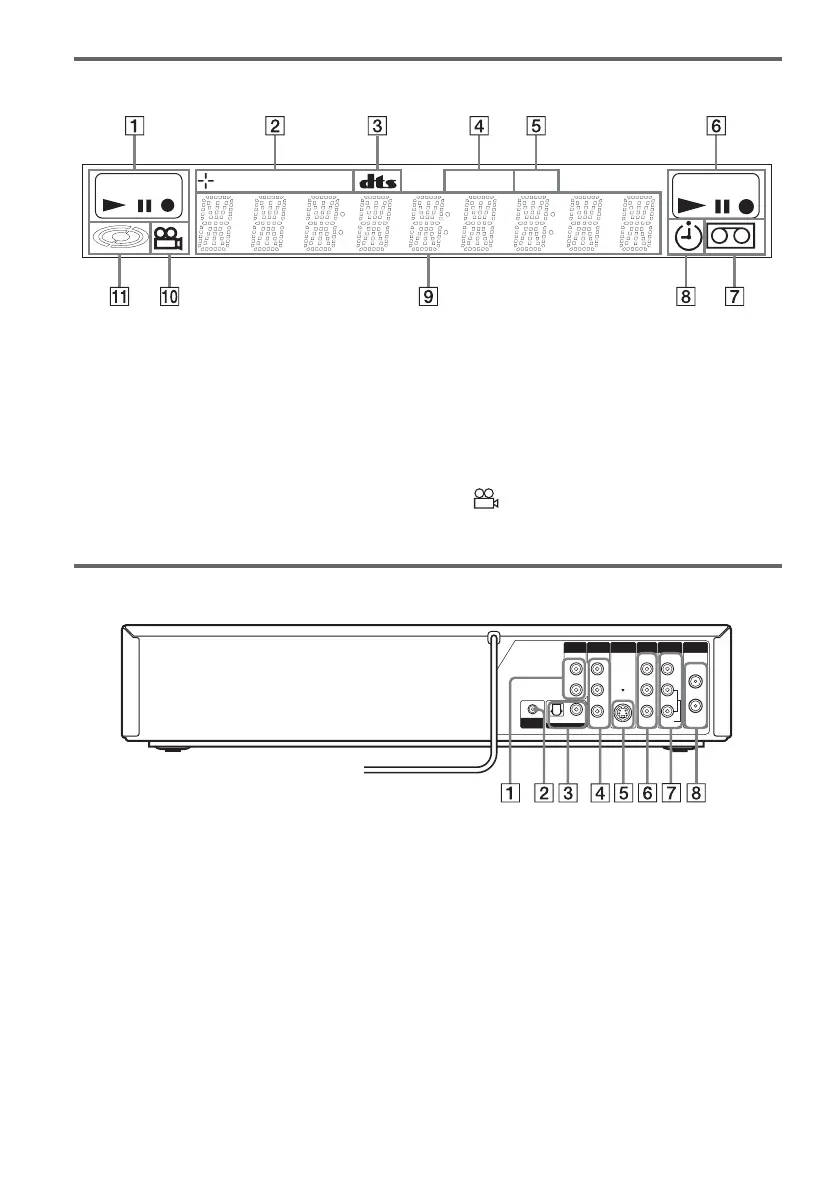

Front panel display
A DVD playing/recording status
B Disc type/recording format
C Audio signal indicators
D STEREO indicator (48, 78)
E SAP (Second Audio Program) indicator
(48, 78)
F VIDEO playing/recording status
G Tape indicator
H Timer indicator
I Displays the following (47, 76):
• Playing time/remaining time
• Current title/chapter/track/index number
• Recording time/recording mode
•Clock
• Channel
J (angle) indicator (36)
K Disc indicator
Rear panel
A AUDIO OUT L/R jacks (18)
B SET TOP BOX CONTROL jack (13, 14)
C DIGITAL AUDIO OUT (COAXIAL/
OPTICAL) jacks (18)
D COMPONENT VIDEO OUT (Y, P
B, PR)
jacks (17)
E S VIDEO OUT jack (16)
F LINE 1 IN (VIDEO/AUDIO L/R) jacks
(29)
G LINE OUT (VIDEO/AUDIO L/R) jacks
(16, 17)
H VHF/UHF IN/OUT jacks (14)
DVD
RW
VR
VCD SAP
VIDEO
STEREO
IN
L
R
VIDEO
AUDIO
OUT
VHF/UHFLINE OUT
VIDEO
YL
P
BR
P
R
AUDIO
LINE 1 IN AUDIO OUT S VIDEO OUT
COMPONENT
VIDEO OUT
SET TOP BOX
CONTROL
DIGITAL AUDIO OUT
OPTICAL COAXIAL
