118
Guide to Parts and Controls
For more information, see the pages in parentheses.

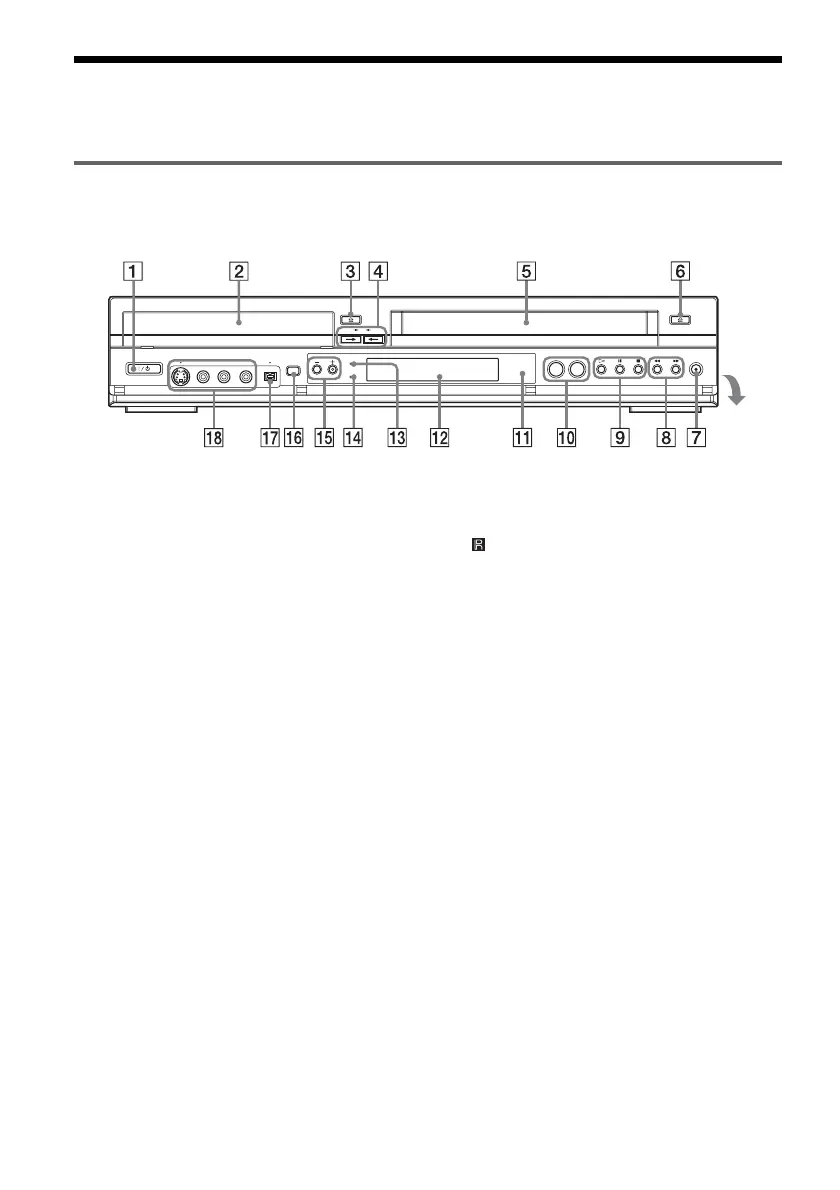

Front panel
Buttons on the recorder have the same function as the buttons on the remote if they have the same or
similar names.
A "/1 (on/standby) button (23)
B Disc tray (35, 49, 94)
C A (open/close) button (35, 49, 94)
D DVD t button (88)
T VIDEO button (87)
E Tape compartment (72, 79)
F A (eject) button (72)
G z REC (record) button (49, 79)
H m/M (rewind/fast-forward) buttons
(38)
I H (play) button (35, 72)
X (pause) button (36, 49, 74, 79)
x (stop) button (35, 49, 72, 79)
J SELECT DVD/VIDEO buttons (35, 49, 72,
79)
K (remote sensor) (20)
L Front panel display (47, 76)
M PROGRESSIVE indicator (17, 101)
N SYNCHRO REC indicator (53, 83)
O CHANNEL/TRACKING +/– buttons* (21,
49, 73, 79)
P ONE-TOUCH DUBBING button (96)
Q DV IN jack (93)
R LINE 2 IN (S VIDEO/VIDEO/AUDIO L
(MONO)/R) jacks (28)
* The CHANNEL + button has a tactile dot. Use the
tactile dot as a reference.
Open the
cover
