Sony RM-YD023 - Side Jack Bracket, BU Shield and BU Board Removal; Power Unit Removal

14
KDL-40W4100/46W4100/46W4150
KDL-40W4100/46W4100/46W4150

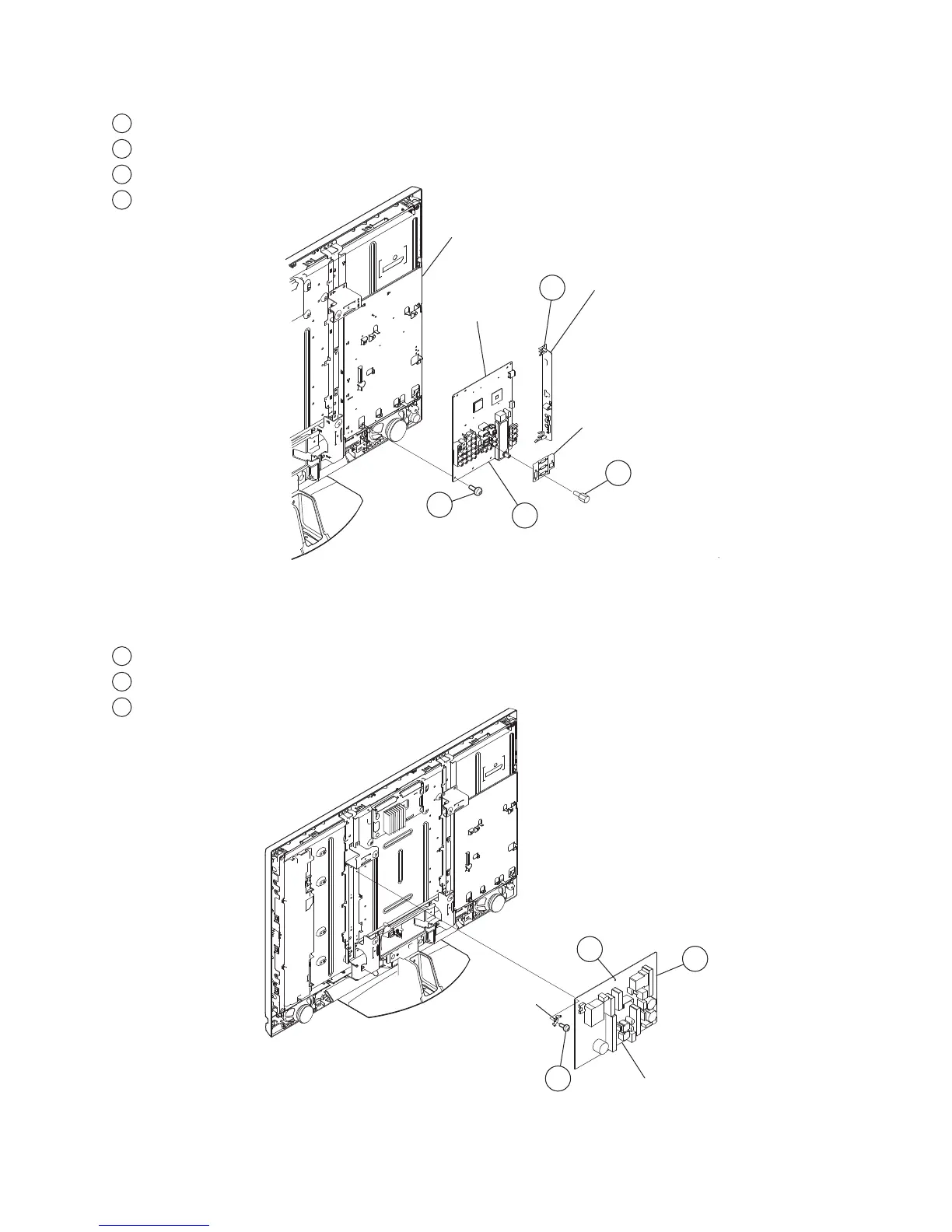

1-3. SIDE JACK BRACKET, BU SHIELD AND BU BOARD REMOVAL
1
Release hook and slide out Side Jack Bracket from BU Board.
2
Remove 2 HEX screws.
3
Disconnect 6 connectors.
4
Remove 9 screws.
1-4. POWER UNIT REMOVAL (IP5Z BOARD)
1
Disconnect 5 connectors.
2
Remove 6 screws.
3
Release 4 Board Holders.
Side Jack Bracket
BU Board
BU Shield
Main Bracket
2
4
1
3
Corner
Cover
Power Unit
(IP5Z Board)
2
1
3
