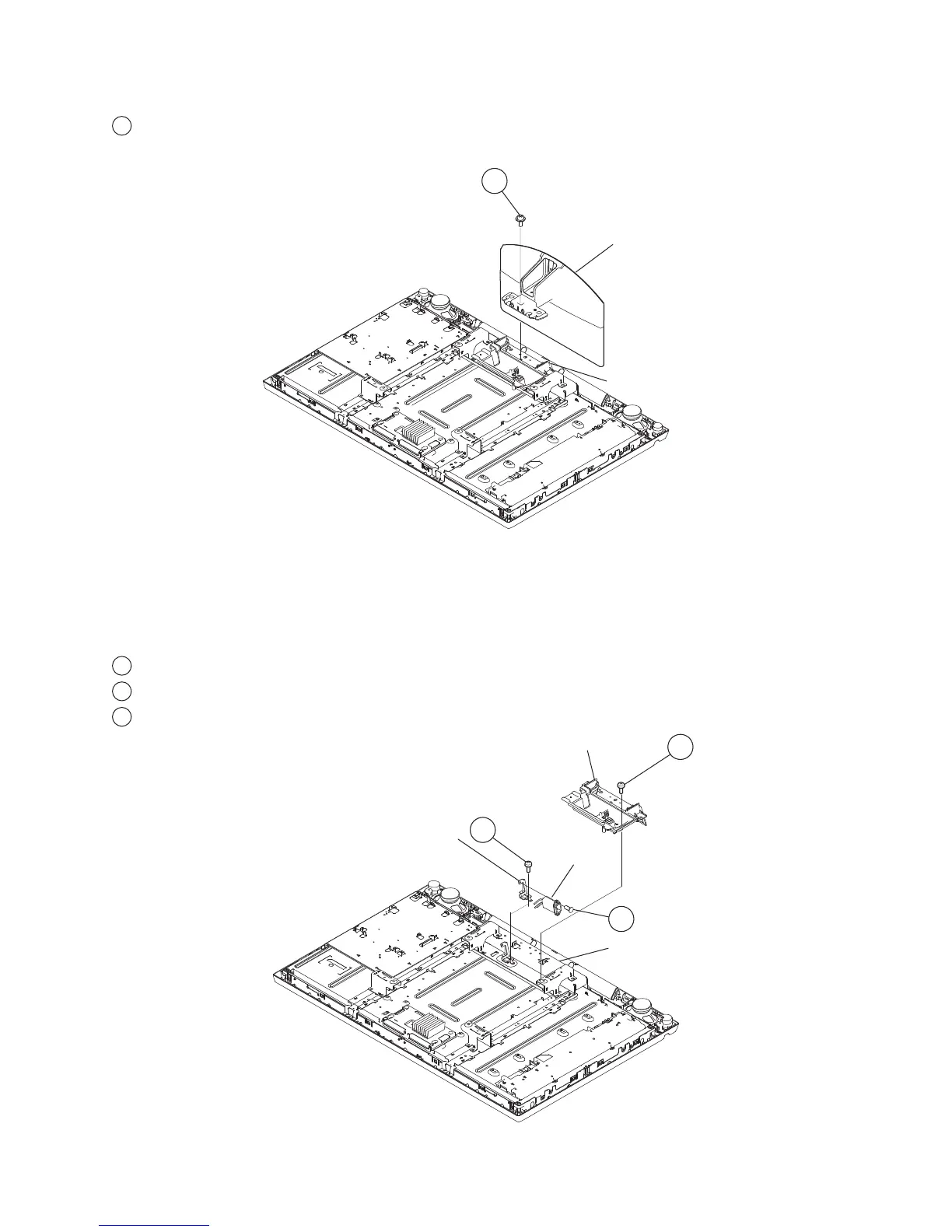

1-5. STAND REMOVAL
1
Remove 1 screw.
2
Remove 2 screws.
3
Remove 1 screw.
1
Remove 4 screws.
1-6. UNDER COVER AND AC INLET REMOVAL
1
Stand Assembly
Under Cover
1
2
Under Cover
AC Bracket
AC Inlet
Bottom Bracket
3
