Sony RM-YD023 - Speakers, under Bar, H3 E;H4 Board and Light Guide Removal; And Light Guide Removal

18
KDL-40W4100/46W4100/46W4150
KDL-40W4100/46W4100/46W4150

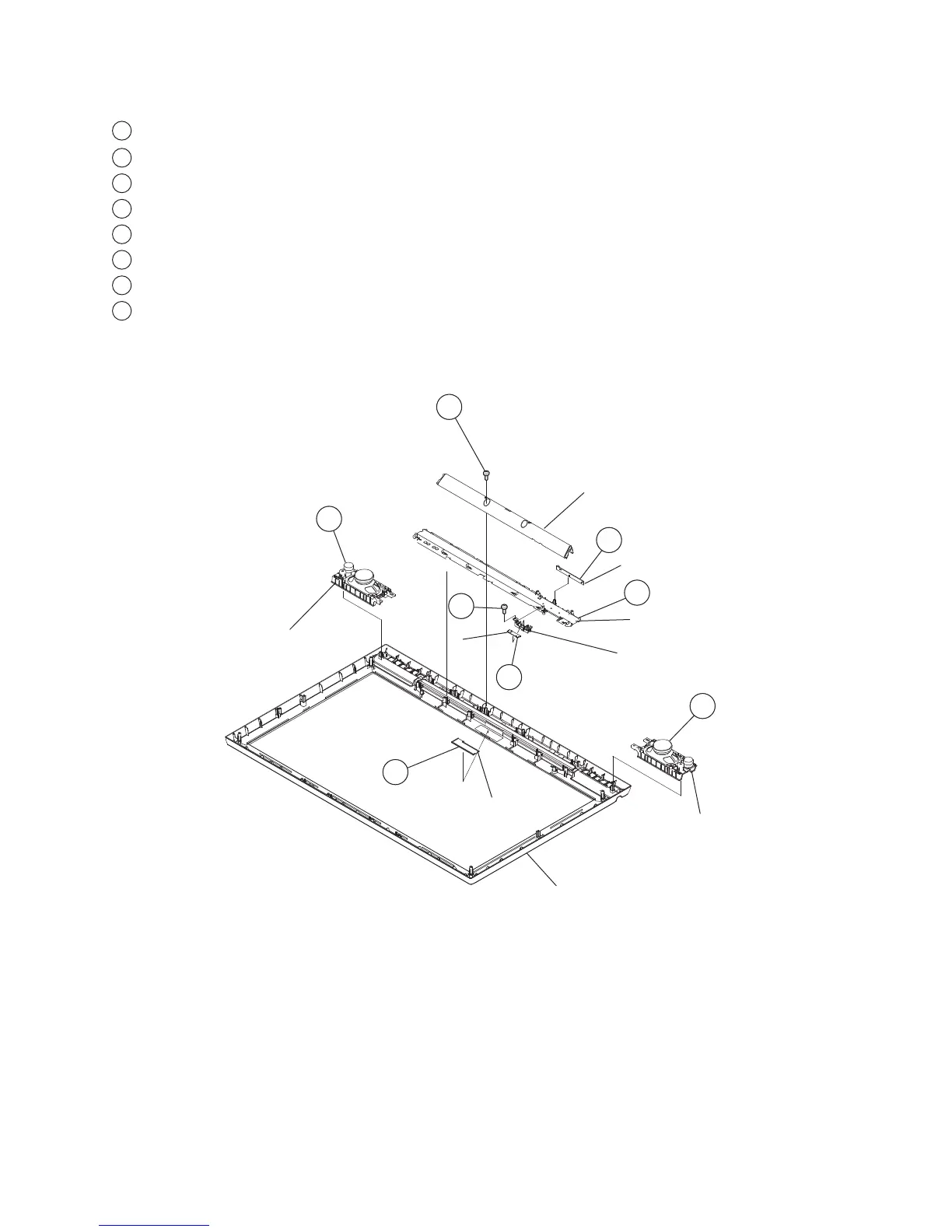

1-9 SPEAKERS, UNDER BAR, H3E/H4 BOARD AND LIGHT GUIDE REMOVAL
1
Slide out Speaker (L) Unit from Bezel.
2
Slide out Speaker (R) Unit from Bezel.
3
Remove 2 screws from Under Bar.
4
Disconnect 1 connector and slide out H3E Board from Clear Panel.
5
Release hooks and remove from Bezel.
6
Remove 1 screw and release hooks from Clear Panel.
7
Disconnect 1 connector and slide out H4 Board from Light Guide.
8
Disconnect 1 connector and remove Illumination Module from Bezel.
Speaker Unit (L)
Speaker Unit (R)
Illumination
Module
Light Guide
Under Bar
H3E Board
Bezel
Clear Panel
1
3
2
5
4
6
7
8
H4 Board
