KDL-40W4100/46W4100/46W4150
KDL-40W4100/46W4100/46W4150
NOTE: Les composants identifi es per un trame et
une marque
!
sont critiques pour la securite.
Ne les remplacer que par une piece portant le
numero specifi e.
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: The components identifi ed by a red outline and a mark contain
confi dential information. Specifi c instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.

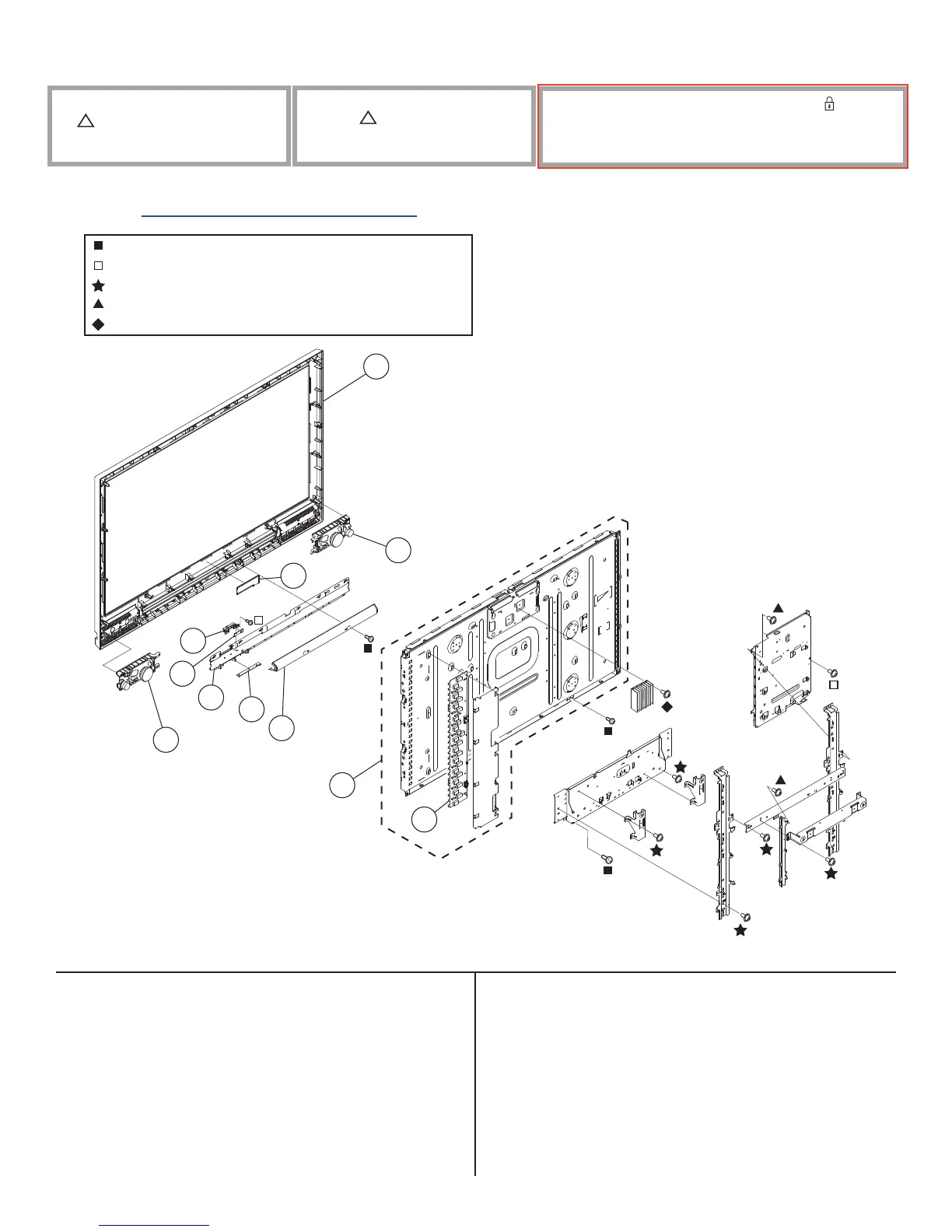

4-5. BEZEL ASSEMBLY AND LCD PANEL (KDL-46W4100/46W4150 ONLY)
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
(Check the Sony Electronics Service Information website for any additional service related issues for this model.)
201 X-2189-840-1 BEZEL ASSY (46EM)
(KDL-46W4100 ONLY)
201 X-2318-560-1 BEZEL ASSY
(KDL-46W4150 ONLY)
202 1-826-887-11 LOUDSPEAKER (3CM, 6.5X15CM)
203 1-480-680-11 ILLUMINATION MODULE
204 3-290-800-01 GUIDE, LIGHT
205 A-1494-139-A H4 BOARD, MOUNTED
* 206 3-290-821-01 PANEL, CLEAR (46)
207 A-1550-477-A H3E BOARD, MOUNTED
208 3-290-824-11 BAR, UNDER (L)
209 1-826-887-21 LOUDSPEAKER (3CM, 6.5X15CM)
210 1-802-673-12 LCD PANEL (46 FHD TFT) [211]
211 1-857-047-11 ETC-INVERTER MT BOARD
204
205
206
207
201
203
202
209
208
210
211
2-580-640-01 SCREW, +BVTP2 4X16
7-685-648-79 SCREW, +BVTP 3X12 TYPE2 IT-3
2-580-606-01 SCREW, +PSW M5X8
2-580-629-01 SCREW, +BVST 3X8
7-682-948-01 SCREW, +PSW 3X8
