17
KDL-40W4100/46W4100/46W4150
KDL-40W4100/46W4100/46W4150
1
Remove 1 screw from Main Bracket.
2
Remove 3 screws from Main Bracket and Spine Frame.
3
Remove 2 screws from Top Vesa Bracket.
4
Remove 2 screws from G Board Support.
5
Remove 2 screws from Center Frame.
6
Remove 10 screws from Spine Frames.
7
Remove 4 screws from both Bottom Vesa Brackets.
8
Remove 4 screws from Bottom Bracket.
9
Remove 1 screw from Bottom Bracket.

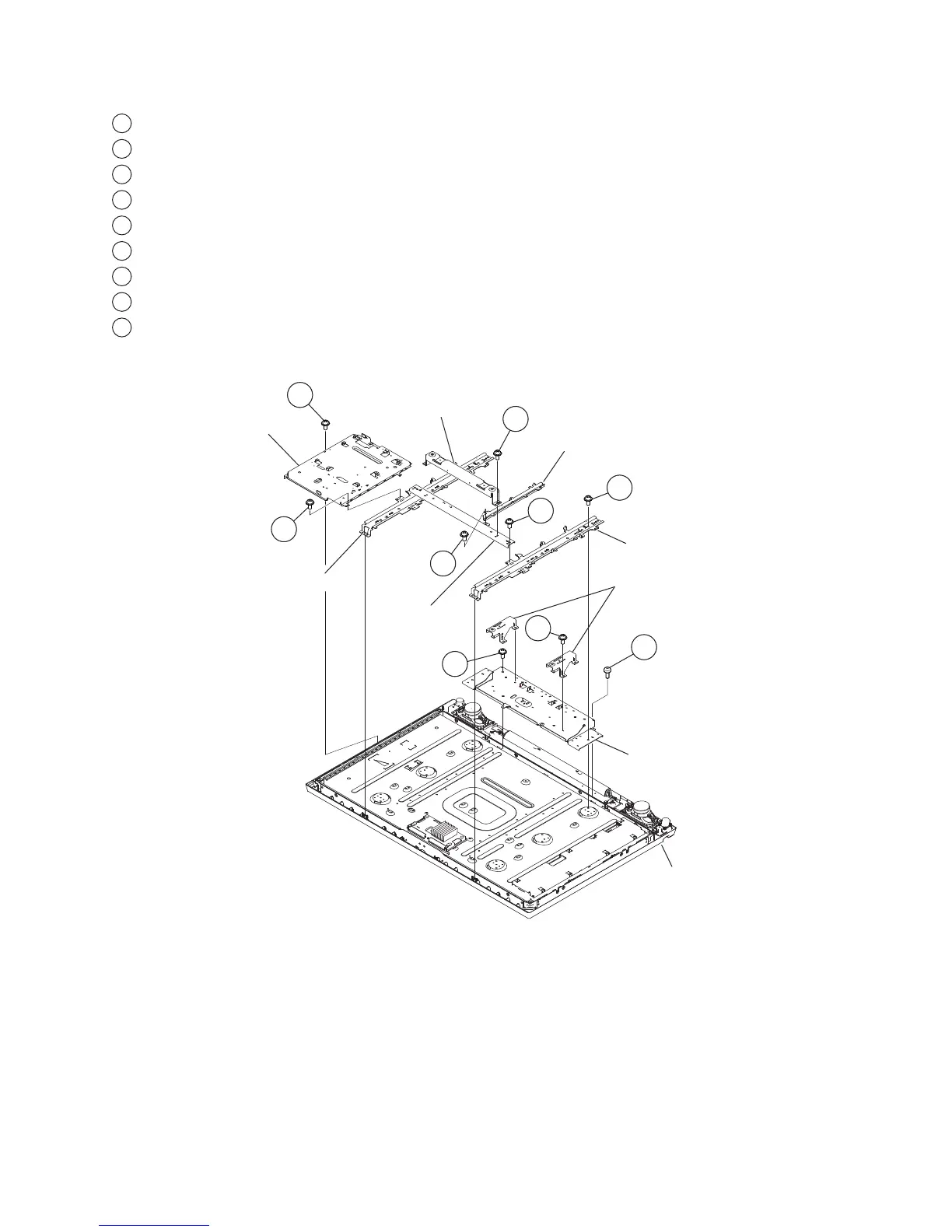

1-8. STRUCTURAL FRAMES AND BRACKETS REMOVAL (KDL-46W4100/46W4150 ONLY)
1
2
4
3
5
6
7
Main Bracket
Top Vesa Bracket
G Board
Suport
Center Frame
8
9
Bezel
Bottom Bracket
Bottom Vesa Bracket
Spine Frame
Spine Frame
To Next Page
