SECTION 1: DISASSEMBLY

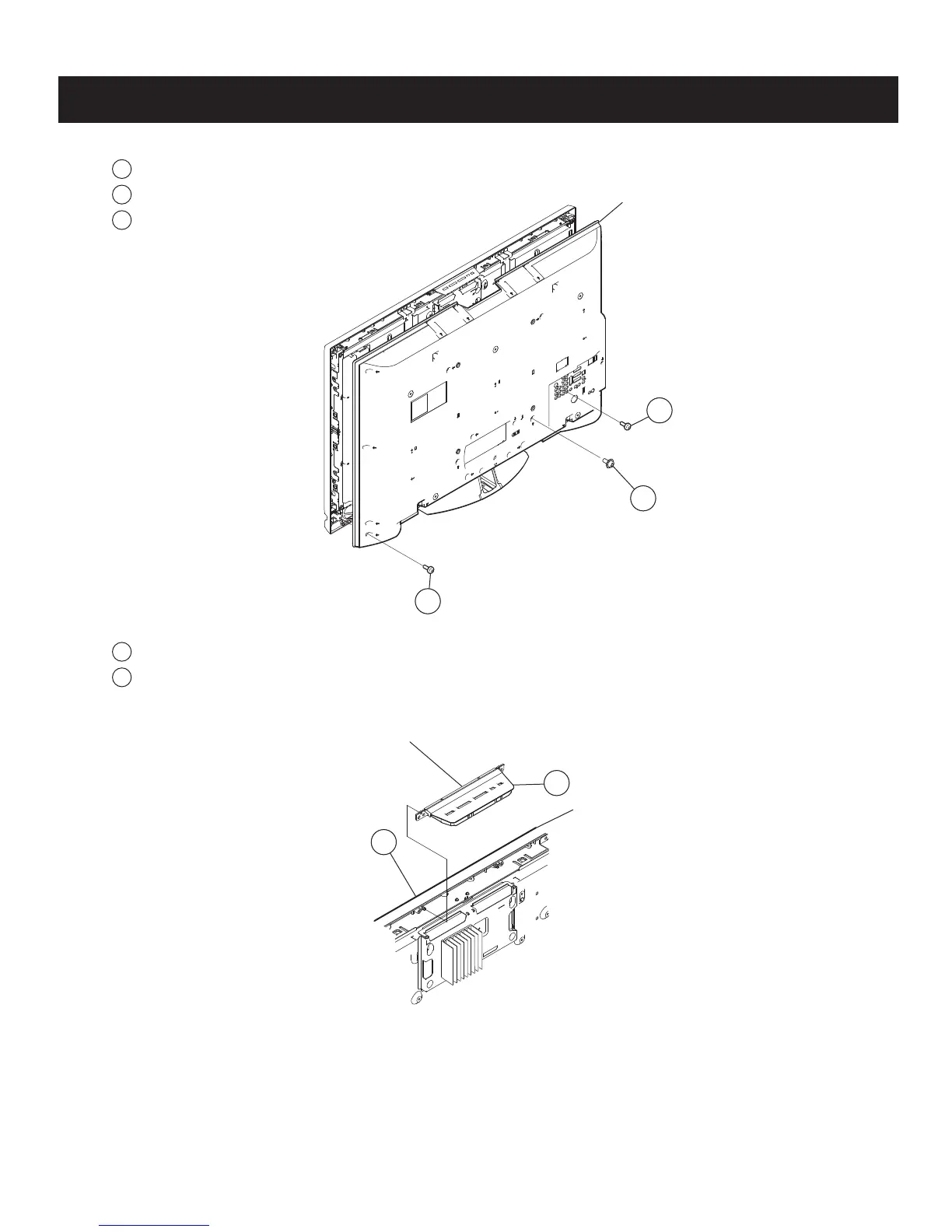

1-1. REAR COVER REMOVAL
1
Remove from bezel.
2
Disconnect 1 connector.
1
Remove 2 screws from Terminal Position.
2
Remove 6 screws.
3
Remove 19 screws (KDL-40W4100 ONLY).
Remove 21 screws (KDL-46W4100/40W4150 ONLY).
1-2. SWITCH UNIT REMOVAL
Rear Cover
1
2
3
Bezel
Switch Unit
1
2
