Sony RM-YD023 - Structural Frames and Brackets Removal; (KDL-40 W4100 Only)

16
KDL-40W4100/46W4100/46W4150
KDL-40W4100/46W4100/46W4150
1
Remove 4 screws from Top Vesa Brackets.
2
Remove 1 screw from Main Bracket and Bezel.
3
Remove 4 screws from Main Bracket.
4
Remove 6 screws from Spine Frames.
5
Remove 4 screws from Bottom Vesa Brackets.
6
Remove 4 screws from Bottom Frame.

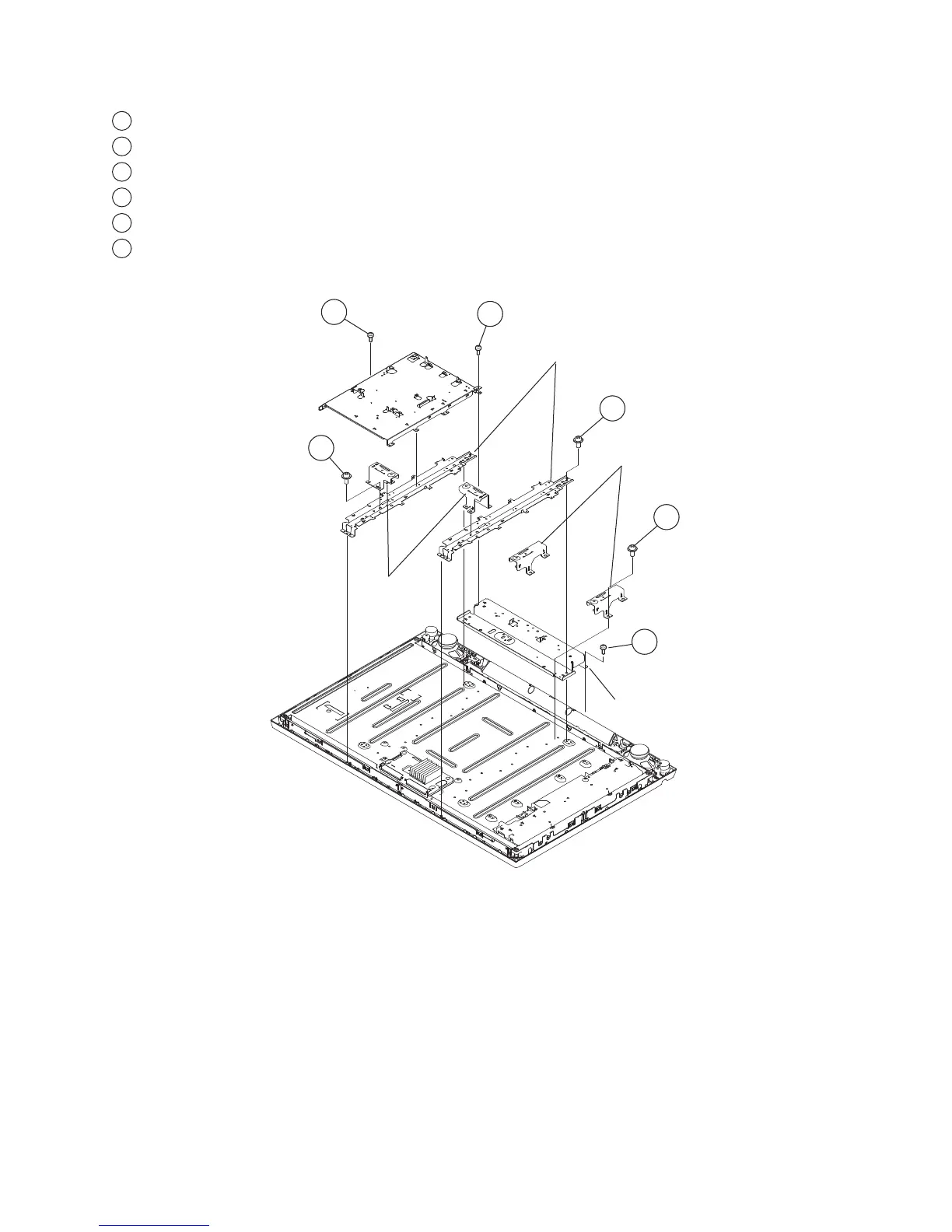

1-7. STRUCTURAL FRAMES AND BRACKETS REMOVAL (KDL-40W4100 ONLY)
6
5
Bottom Frame
Vesa (Top)
Spine Frame
Vesa (Bottom)
1
4
3
2
