KDL-40W4100/46W4100/46W4150
KDL-40W4100/46W4100/46W4150
KDL-40W4100 ONLY

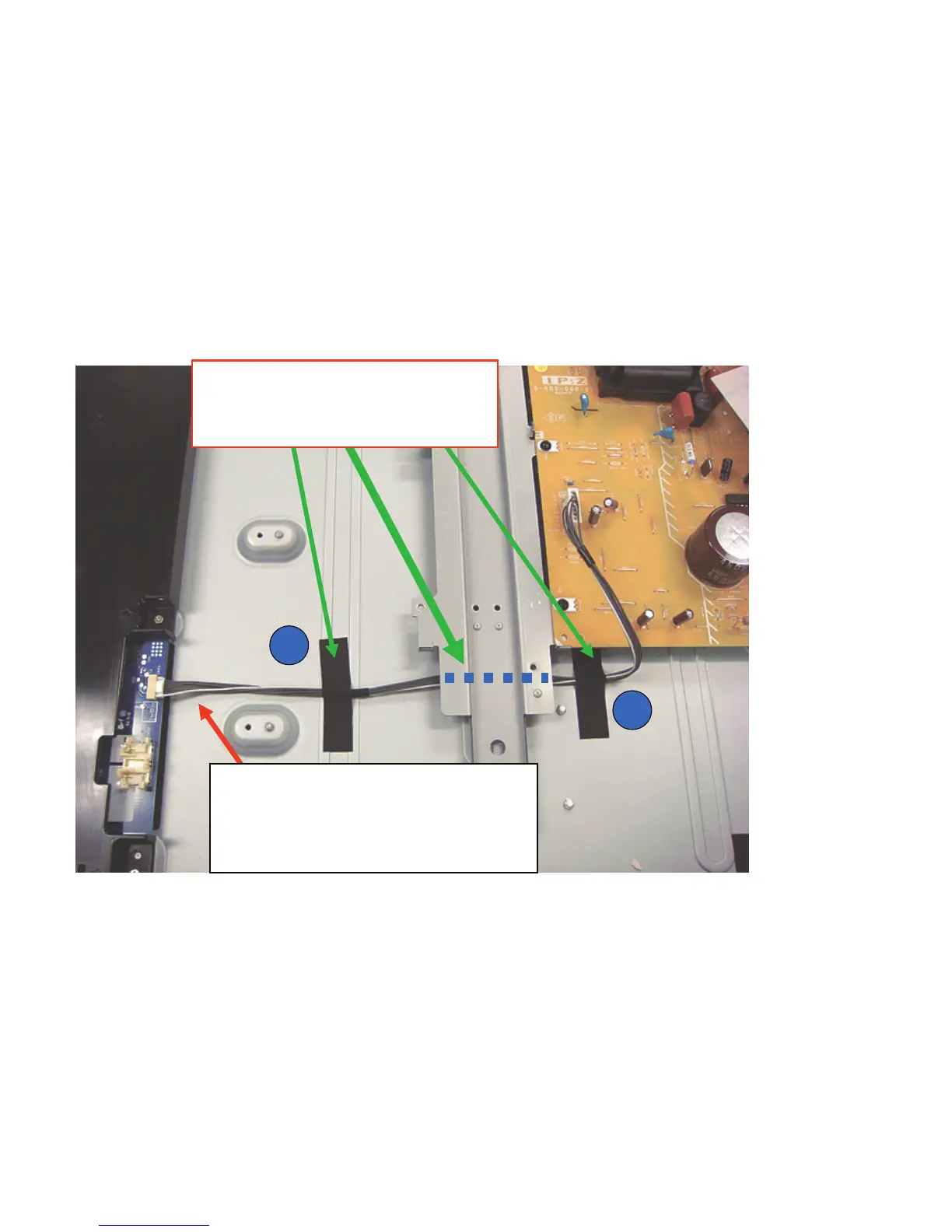

Balancer Board Cable Routing
Fix 7P harness with Sheet Core C.
NOTE:
Wires are routed UNDER Spine Frame
to avoid sharp metal edge.
CAUTION:
Make sure there is sufficient
Slack on wire so there is very little
Stress on connector!
5
6
To Next Page
