33
KDL-40W4100/46W4100/46W4150
KDL-40W4100/46W4100/46W4150
KDL-40W4100 ONLY

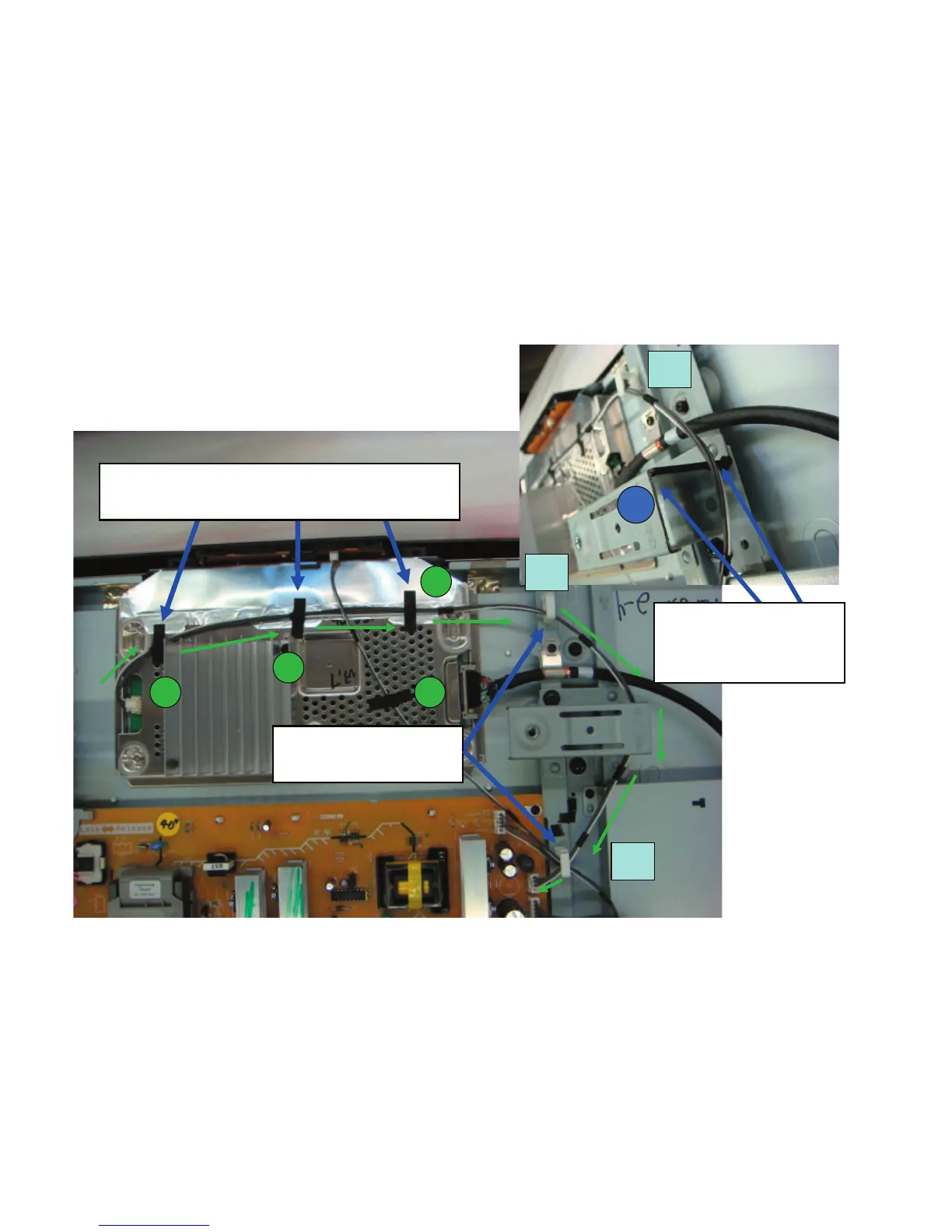

TCON Power Routing/Dressing
Apply Sheet Core C
Over sharp edge of
VESA Bracket.
Route wires in Slide
Clamp (2Places)
5
6
6
7
6
7
8
9
Apply LCD Tape as shown to 4P TCON
Power Conn Assy.
