38
KDL-40W4100/46W4100/46W4150
KDL-40W4100/46W4100/46W4150
KDL-40W4100 ONLY

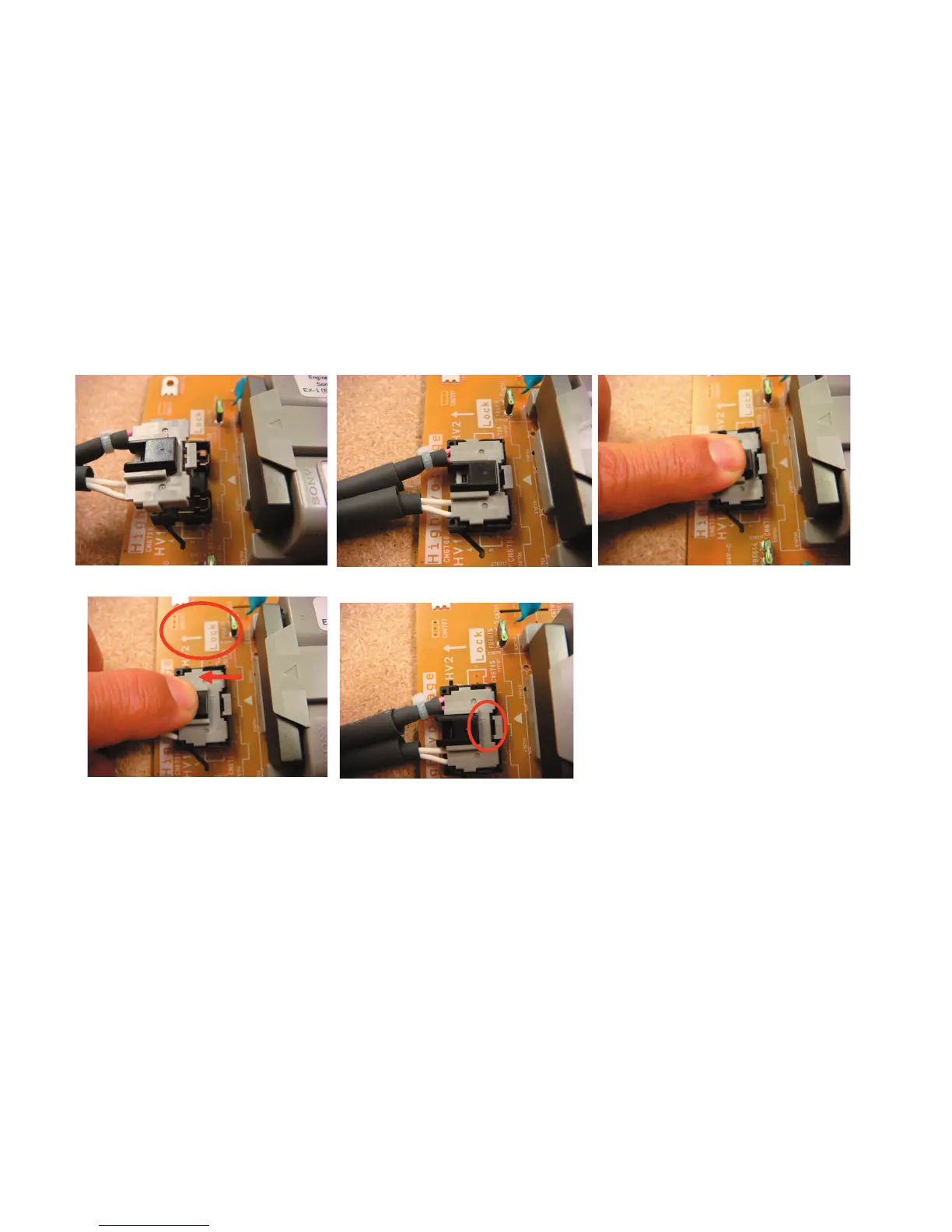

INSTALLATION PROCEDURE FOR MDF-61 CONNECTOR
STEP1: ALIGN CONNECTOR
STEP2: INSTALL CONNECTOR
STEP3: PUSH DOWN ON BLACK
LOCK TAB TO SEAT CONNECTOR.
WHEN CONNECTOR IS SEATED IT
WILL “CLICK” INTO PLACE.
STEP4: PULL LOCK BLACK LOCK
TAB IN DIRECTION INDICATED ON
PWB TO LOCK CONNECTOR.
“HRS” LOGO WILL BE VISIBLE WHEN
CONNECTOR IS PROPERLY LOCKED.
